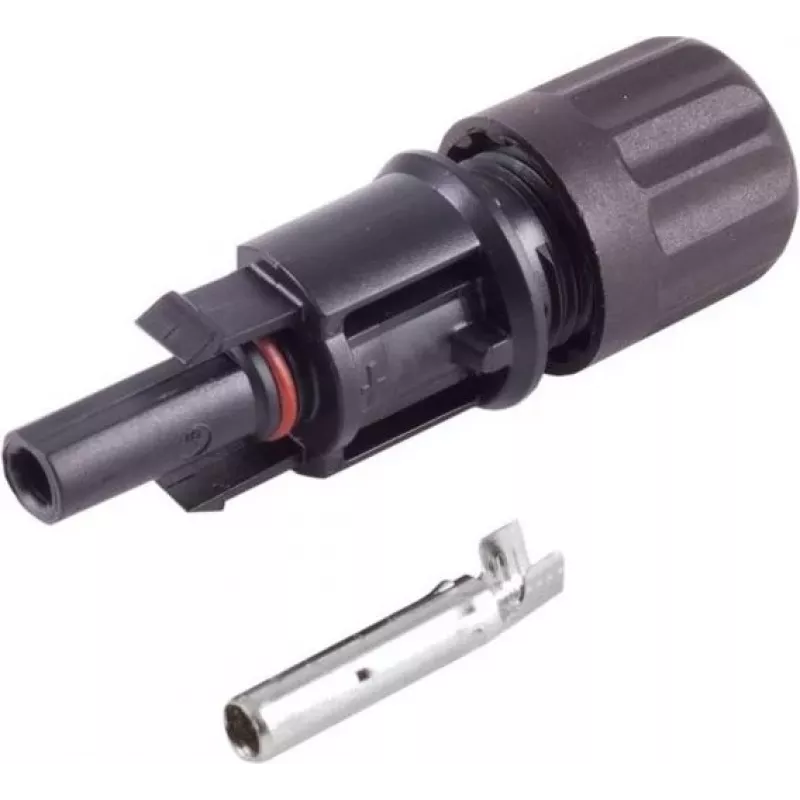

SHIVERPEAKS PV4 liitin 2,5-6mm² IP68 1500V 50 kpl:n pakkaus BS02-20016

Photovoltaic connector engineered for high-voltage DC solar installations, delivering a secure snap-in lock and IP68-rated protection against dust and water ingress. Compatible with 2.5 mm² to 6 mm² cables and rated for up to 1500 V DC, this female socket ensures reliable, low-resistance connections in demanding outdoor environments.

Advantages

The connector's tinned copper contacts and PPO/PPE insulation provide excellent corrosion resistance and UV stability, ensuring long-term performance. Its crimp connection method guarantees a durable, gas-tight joint, while the UL94-V0 flame rating enhances safety. The IP68 rating allows submersion, making it suitable for harsh weather conditions.

Suitable for

• Solar panel arrays and photovoltaic systems
• Outdoor and rooftop installations
• High-voltage DC cabling up to 1500 V
• MC4-compatible connections
• Cable cross-sections from 2.5 mm² to 6 mm²

Key specifications

• Connector type: PV4 female (socket)
• Rated current: up to 30 A (for 4 mm² / 6 mm² cables)
• Contact resistance: ≤ 0.5 mΩ
• Operating temperature: -40°C to +90°C
• Dielectric strength: 6 kV (AC, 1 min)
• Insertion/withdrawal force: ≤ 50 N
• Safety class: II
• Pack quantity: 50 pieces

Recommendations

For optimal performance, use with SHIVERPEAKS PV4 male connectors and appropriate crimping tools. Ensure cable insulation is stripped to the correct length and follow manufacturer guidelines for crimping. Store connectors in a dry place when not in use.
