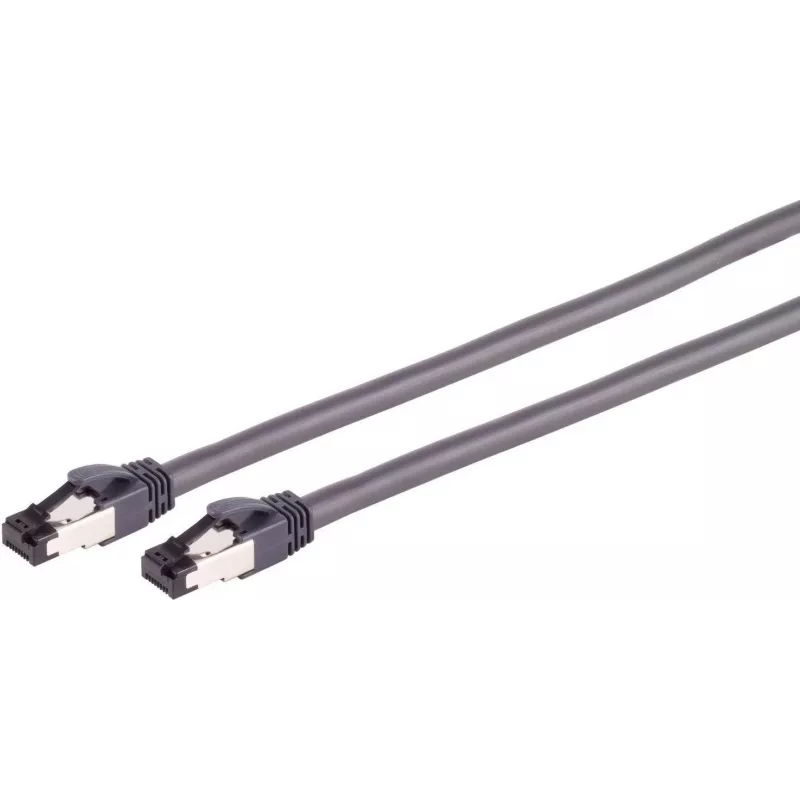

SHIVERPEAKS S/CONN maximum connectivity Cat. 6A FlexArmor U/FTP -verkkokaapeli, harmaa, 2 m 08-59030

With a bandwidth of up to 500 MHz and support for 10 Gigabit Ethernet, this SHIVERPEAKS patch cable delivers high-speed, reliable network connectivity for demanding applications. The Cat. 6A U/FTP design ensures excellent signal integrity, while the FlexArmor jacket provides enhanced durability and flexibility.

Overview

The SHIVERPEAKS S/CONN maximum connectivity patch cable is engineered for professional network installations where performance and longevity are critical. It features gold-plated RJ45 connectors, oxygen-free copper conductors, and a stranded construction that resists bending fatigue. The LSZH jacket with FlexArmor technology offers superior mechanical protection and low smoke emission in case of fire.

What stands out

• Cat. 6A performance up to 500 MHz, supporting 10GBASE-T
• U/FTP shielding: each pair individually foiled for minimal crosstalk
• FlexArmor jacket: rugged yet flexible, ideal for frequent handling
• Gold-plated contacts (50µm) ensure corrosion resistance and reliable connections
• LSZH material: low smoke, zero halogen for safer indoor use
• Supports PoE up to Type 4 (PoE++)

Technical details

• Cable length: 2 m
• Category: Cat. 6A (Class EA)
• Shielding: U/FTP (unshielded overall, foiled twisted pairs)
• Connector type: RJ45 (8P8C), gold-plated contacts
• Conductor: Oxygen-free copper (OFC), AWG 26/7 stranded
• Bandwidth: 500 MHz
• Data transfer rate: 10 Gbps
• Jacket: LSZH with FlexArmor technology
• Outer diameter: 6.2 mm
• Wiring standard: TIA/EIA 568B
• PoE support: PoE, PoE+, PoE++ (Type 4)
• Flammability rating: IEC 60332-1
• Operating temperature: -20°C to 60°C

Our verdict

A robust Cat. 6A patch cable that combines high-speed performance with a durable, flexible design—ideal for data centers, offices, and industrial environments.
