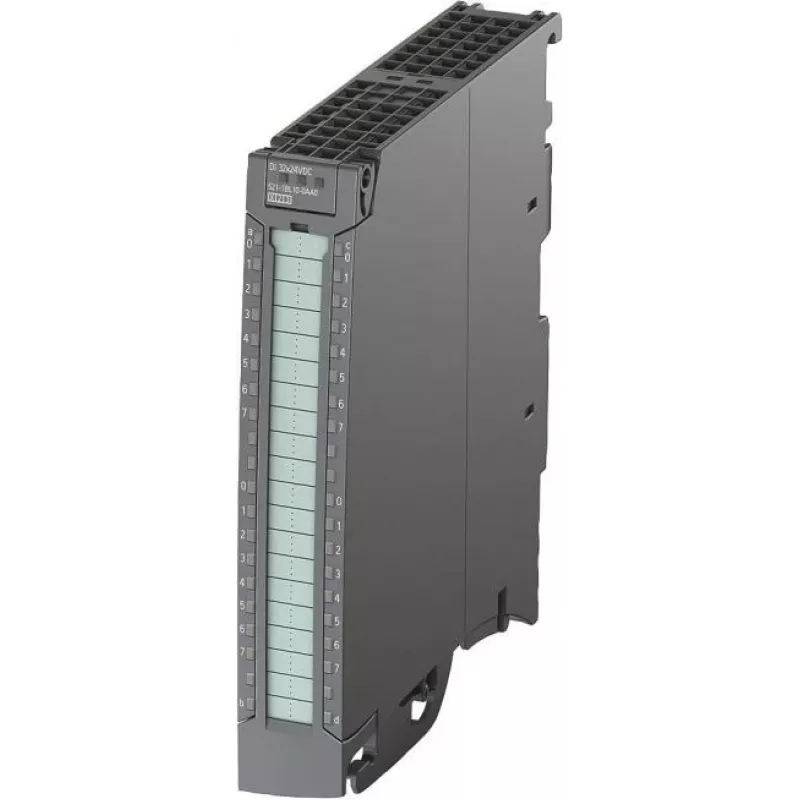

Siemens SIMATIC S7-1500 digitaalinen tulomoduuli DI 32x24VDC 6ES7521-1BL10-0AA0

The Siemens SIMATIC S7-1500 Digital Input Module DI 32x24VDC (6ES7521-1BL10-0AA0) is a high-performance digital input module designed for the SIMATIC S7-1500 automation system. It provides 32 digital inputs for 24 V DC signals, offering reliable and fast signal acquisition for industrial control applications.

Advantages

This module features adjustable input delays from 0.05 ms to 20 ms, allowing flexible adaptation to various signal types. With potential separation between channel groups and the backplane bus, it ensures robust signal integrity and noise immunity. Diagnostics functions such as wire break, short circuit, and supply voltage monitoring enhance system reliability and simplify troubleshooting.

Suitable for

• Industrial automation and process control systems
• Machine building and manufacturing lines
• Building automation and infrastructure control
• Any application requiring 32 digital inputs with 24 V DC signals

Key specifications

• Module Type: Digital Input Module
• Series: SIMATIC S7-1500
• Number of Digital Inputs: 32
• Input Voltage: 24 V DC
• Input Current (Signal '1'): 2.5 mA
• Input Type: Sink/Source (Type 3 per IEC 61131-2)
• Input Delay: 0.05 ms to 20 ms (adjustable)
• Potential Separation: Yes, between channels in groups of 16 and to backplane bus
• Channels per Group: 16
• Power Consumption (Internal): Max. 0.8 W
• Power Consumption (from Load Current Supply): Max. 100 mA (plus input current)
• Diagnostics Functions: Wire break, short circuit, supply voltage monitoring
• Interrupts: Yes, for process alarms
• Front Connector: Not included, requires 40-pin front connector (screw or push-in)
• Operating Temperature: 0 °C to 60 °C (horizontal mounting)
• Protection Class: IP20
• Mounting Type: DIN rail
• Firmware Update: Yes

Recommendations

For optimal performance, use with a compatible SIMATIC S7-1500 CPU and a 40-pin front connector (screw or push-in type). Ensure proper grounding and shielding according to Siemens installation guidelines.
