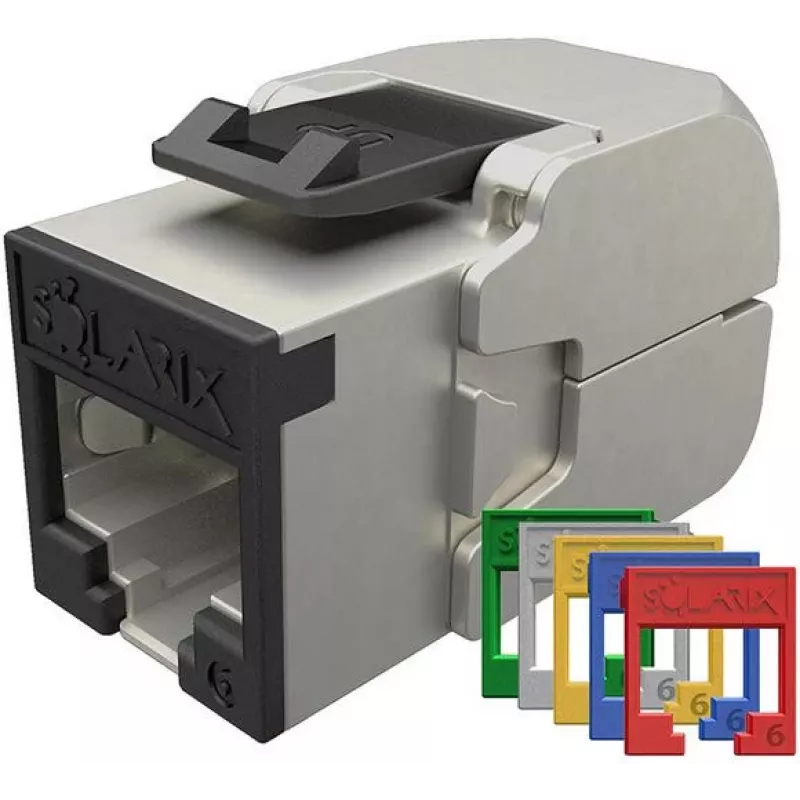

SOLARIX Cat.6 STP RJ45 työkaluton Keystone-moduuli - metallinen

The SOLARIX Cat.6 STP RJ45 Toolless Keystone Module is a high-performance, shielded keystone module designed for reliable Gigabit Ethernet connections. Its toolless termination design allows for quick and easy installation without the need for a punchdown tool, making it ideal for both professional installers and DIY enthusiasts. The module is constructed with a die-cast zinc alloy housing and gold-plated contacts, ensuring durability and optimal signal integrity.

Advantages

Toolless termination saves time and reduces installation errors. The STP shielding provides excellent protection against electromagnetic interference (EMI), ensuring stable data transmission. The module supports both T568A and T568B wiring standards, offering flexibility for various network setups.

Suitable for

• Structured cabling in offices, data centers, and industrial environments
• Gigabit Ethernet networks (1000Base-T)
• Installations requiring shielded connections to minimize interference

Key specifications

• Category: Cat.6 (Class E)
• Shielding: STP (Shielded Twisted Pair)
• Connector: RJ45 (8P8C)
• Termination: Toolless IDC
• Wiring standard: T568A/B
• Conductor compatibility: 22-26 AWG solid and stranded
• Housing material: Die-cast zinc alloy
• Contact material: Phosphor bronze with 50 µm gold plating
• Mating cycles (RJ45): ≥ 750
• Termination cycles (IDC): ≥ 200
• Operating temperature: -10°C to +60°C
• Humidity: 10% to 90% RH (non-condensing)
• Standards: ISO/IEC 11801, EN 50173, ANSI/TIA-568-C.2

Recommendations

For optimal performance, use with Cat.6 or higher shielded patch cables and ensure proper grounding of the shielding. The module snaps easily into standard keystone wall plates, patch panels, and surface mount boxes.
