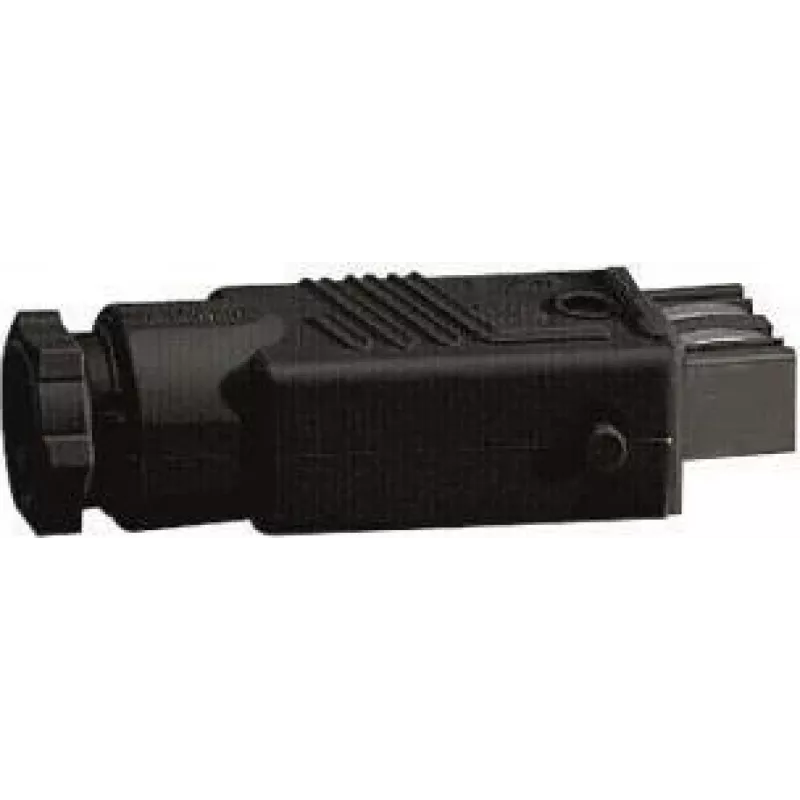

Somfy 9011808A Hirschmann Stak3 pistorasia 16 A 3-napainen ruuviliitin IP54 musta

For technicians wiring Somfy motors and industrial automation systems, the Somfy 9011808A Hirschmann Stak3 female connector provides a dependable power link. This 3-pole socket handles up to 16 A at 250 V AC, with screw terminals that grip wires up to 2.5 mm². The straight cable entry and IP54 rating make it suitable for environments where dust and splashing water are present.

Key specifications

• Connector series: Hirschmann Stak3
• Connector type: Female (socket)
• Number of poles: 3
• Rated current: 16 A
• Rated voltage: 250 V AC
• Ingress protection: IP54
• Connection method: Screw terminals
• Cable entry: Straight
• Housing material: Polyamide (PA)
• Contact material: Brass, nickel-plated
• Operating temperature: -20°C to +60°C
• Compatible cable diameter: 6 - 10 mm
• Max wire cross-section: 2.5 mm²
• Colour: Black

Why choose it

This connector is built to match Somfy motor systems that require Stak3 interfaces, ensuring a secure and compatible connection. The screw terminal design allows for quick, tool-based installation without soldering, and the rugged polyamide housing withstands mechanical stress. Nickel-plated brass contacts resist corrosion, maintaining conductivity over time.

Ideal use cases

• Connecting power to Somfy motors in awnings, roller shutters, and screens
• Industrial automation equipment needing a 3-pole 16 A connector
• Replacement or extension of existing Stak3 cable assemblies
• Outdoor or damp locations where IP54 protection is required

Good to know

The straight cable entry simplifies routing in tight spaces. For a complete connection, pair with the corresponding Stak3 male plug (not included). Always verify cable diameter and wire gauge before installation to ensure a proper seal and strain relief.
