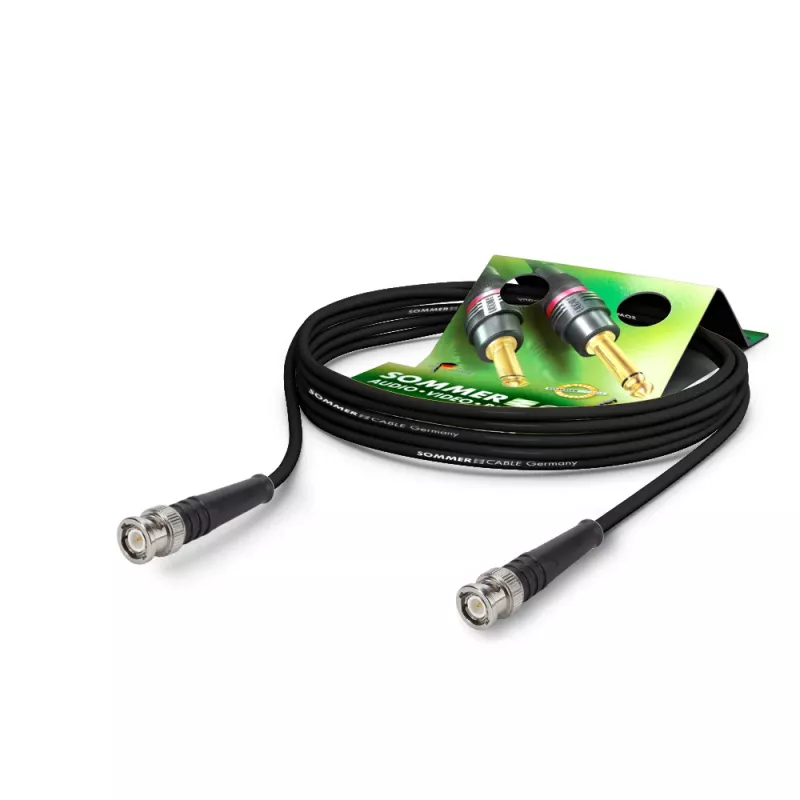

Sommer Cable RG-Classic HF-kaapeli BNC-pistokkeella, 50 Ohm, crimp-liitäntä

The Sommer Cable RG-Classic HF cable with BNC male connector is a high-quality coaxial cable assembly designed for reliable signal transmission in RF applications. Featuring a 50 Ohm impedance and crimp termination, this cable is ideal for use in telecommunications, broadcasting, and measurement technology. The BNC connector ensures secure and stable connections, while the gold-plated contacts provide excellent conductivity and corrosion resistance.

Advantages

This cable offers superior signal integrity with low insertion loss and high return loss, making it suitable for frequencies up to 4 GHz. The robust brass housing with nickel plating ensures durability, and the PTFE dielectric provides excellent insulation. The crimp termination method allows for quick and easy installation without soldering.

Suitable for

• RF and coaxial connections in telecommunications
• Broadcasting and video transmission systems
• Measurement and test equipment
• Networking and data communication

Key specifications

• Connector Type: BNC Male
• Impedance: 50 Ohm
• Termination Method: Crimp
• Frequency Range: DC to 4 GHz
• Voltage Rating: 500 V peak
• Operating Temperature: -40°C to +85°C
• Housing Material: Brass, Nickel Plated
• Contact Material: Brass, Gold Plated
• Dielectric Material: PTFE
• Compatible Cable Types: RG174, RG179, RG316, H05V-K 0.25mm²

Recommendations

For optimal performance, use with Sommer Cable RG-Classic coaxial cables and ensure proper crimping with appropriate tools. This connector is ideal for professional installations requiring reliable and long-lasting connections.
