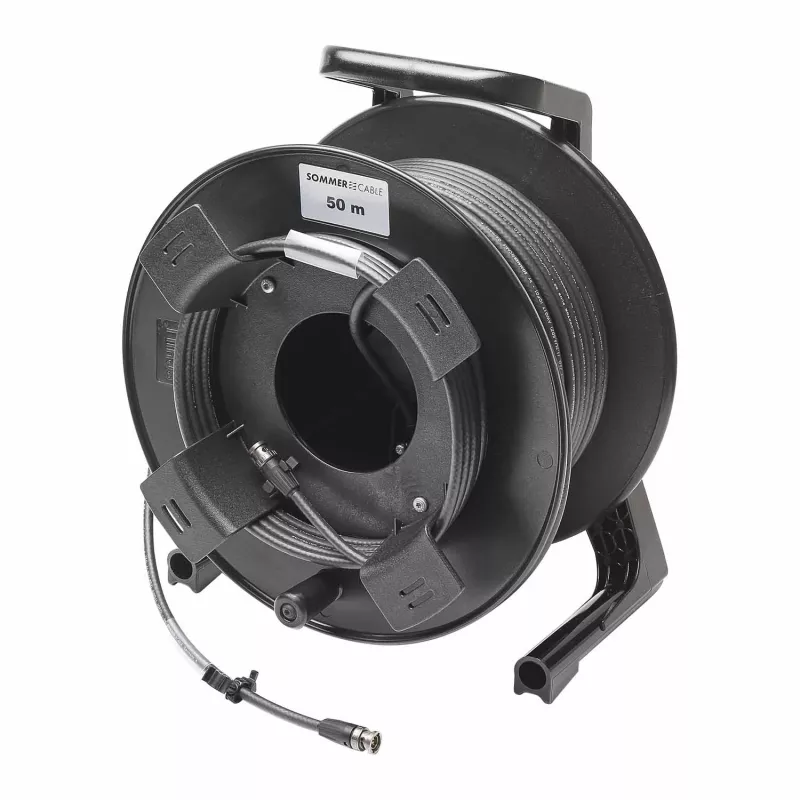

Sommer Cable SC-Vector PLUS 1.2/4.8 DZ videokaapeli kaapelikelalla, BNC-plugi - BNC-plugi, NEUTRIK, musta, 50 m (DZGXG5000-SW-SW)

The Sommer Cable SC-Vector PLUS 1.2/4.8 DZ is a professional video coaxial cable designed for high-bandwidth SDI applications. With a 1-meter length and a Neutrik BNC male connector on one end, this cable delivers exceptional signal integrity for broadcast, production, and AV installations.

Advantages

Engineered for 12G-SDI transmission up to 50 meters, this cable supports all major SDI standards including 3G, 6G, and 12G. The double shielding (foil + 95% copper braid) ensures minimal interference, while the 75-ohm impedance guarantees impedance-matched performance. The gas-foamed PE dielectric and OFC copper conductor provide low capacitance (52 pF/m) for long-distance signal fidelity.

Suitable for

• Broadcast studios and OB vans
• Professional video production
• Security and surveillance systems
• Digital signage and AV installations
• Any application requiring reliable SDI connectivity

Key specifications

• Cable type: SC-Vector PLUS 1.2/4.8 DZ
• Length: 1.0 m
• Connector: BNC male (Neutrik)
• Impedance: 75 Ohm
• Inner conductor: OFC copper, 1.2 mm
• Dielectric: Gas-foamed PE, 4.8 mm
• Shielding: Double (AL/PT foil + copper braid, 95% coverage)
• Jacket: PVC, black, 7.0 mm outer diameter
• Capacitance: 52 pF/m
• Supported standards: SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI

Recommendations

For optimal performance, use with 75-ohm BNC connectors and avoid sharp bends. This cable is ideal for permanent installations where high reliability is required.
