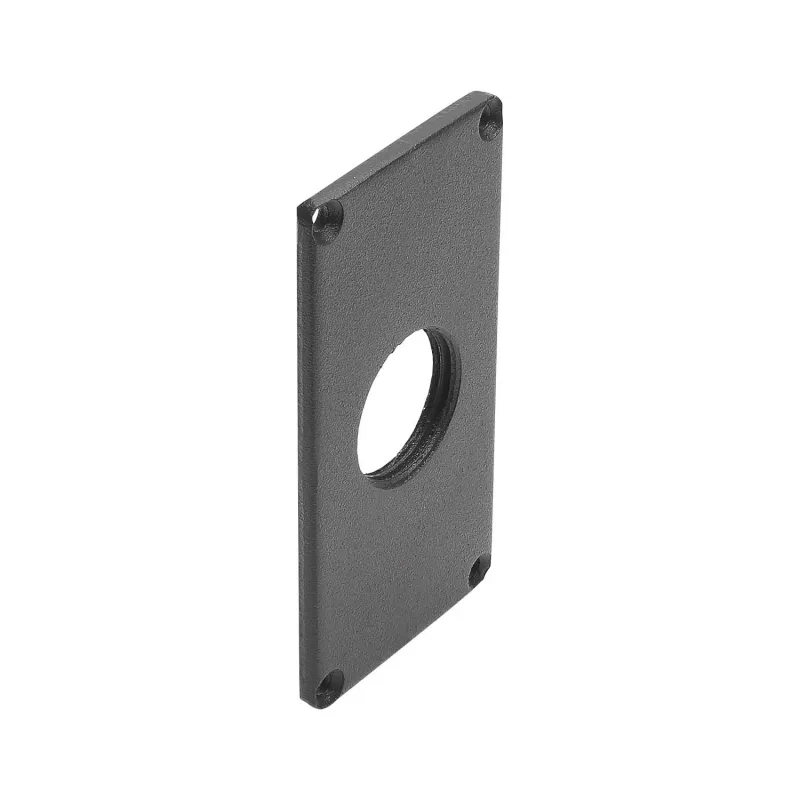

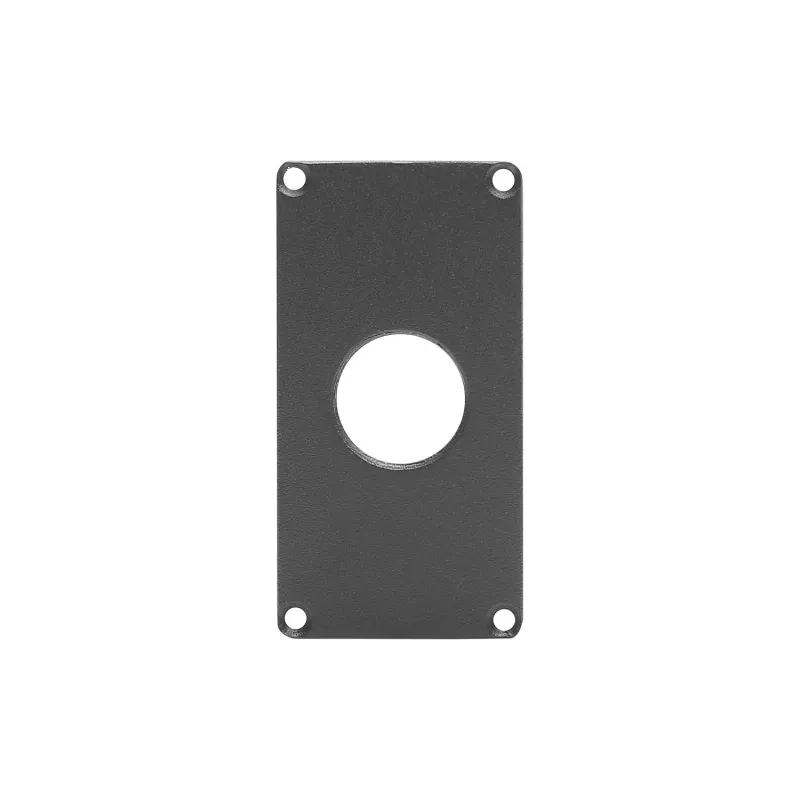

Sommer Cable SYPFB1-M20 etulevymoduuli 1x M20x1,5 harmaa

The Sommer Cable SYPFB1-M20 is a high-quality front panel module designed for professional cable gland and connector mounting applications. Manufactured by Sommer Cable, a trusted brand in audio and video connectivity, this module features a single M20x1.5 threaded opening, allowing secure installation of compatible connectors. The robust steel construction with a powder-coated grey finish ensures durability and a sleek appearance, making it an ideal choice for rack panels and enclosures.

Advantages

This front panel module offers precise threading for reliable cable gland attachment, easy integration into Sommer Cable SYSFRAME systems, and a compact design that saves space. The powder-coated surface provides corrosion resistance and a professional look.

Suitable for

• Mounting cable glands in distribution panels
• Connector installation in audio/video racks
• Custom enclosure builds requiring threaded openings
• Integration with Sommer Cable SYSFRAME modular systems

Key specifications

• Product Type: Front Panel Module
• Number of Openings: 1
• Opening Type: Threaded Hole
• Thread Standard: Metric (M)
• Thread Size: M20 x 1.5
• Material: Steel
• Surface Finish: Powder-coated
• Colour: Grey
• Compatibility Series: Sommer Cable SYSFRAME
• Mounting Method: Screw-in
• Length: 37 mm
• Width: 37 mm
• Thickness: 2 mm
• Application: Cable Gland Mounting, Connector Mounting

Recommendations

For optimal performance, use with Sommer Cable SYSFRAME enclosures and compatible M20 cable glands. Ensure proper torque when tightening to avoid thread damage.
