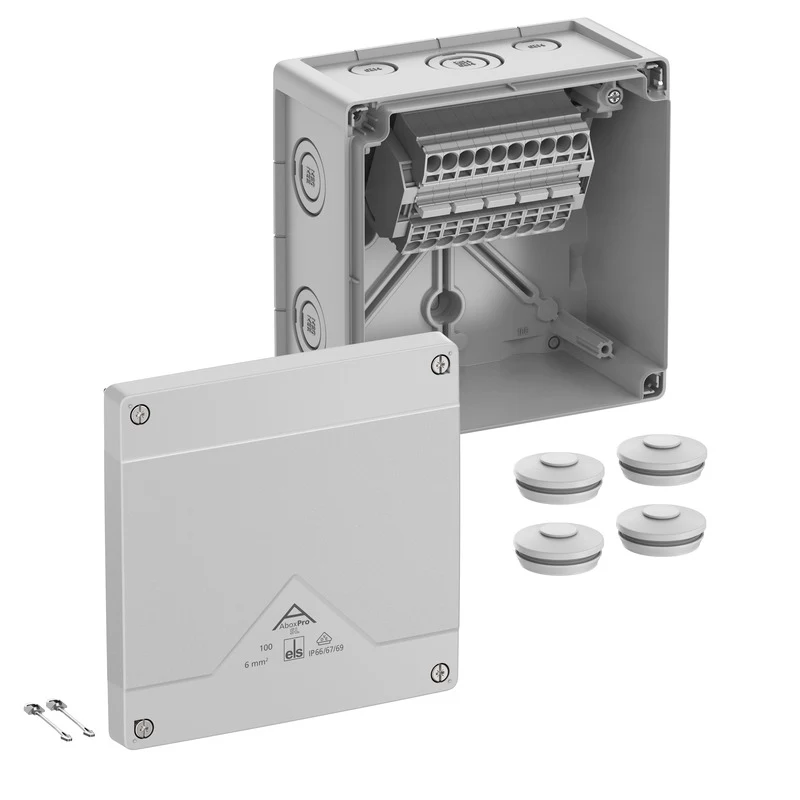

SPELSBERG Abox Pro SL-6² haararasian kotelo, IP66/IP67/IP69, 5-napainen, harmaa 40644001

Electricians and panel builders working in demanding industrial or outdoor environments often need a junction box that can withstand high-pressure cleaning, temporary submersion, and mechanical impact. The SPELSBERG Abox Pro SL-6² is built for exactly these conditions, offering a robust polycarbonate housing with a 5-pole screw terminal block for conductors up to 6 mm².

Key specifications

• Protection class: IP66/IP67/IP69
• Max. conductor cross-section: 6 mm²
• Number of poles: 5
• Terminal type: Screw terminal
• Rated voltage: 690 V
• Rated current: 32 A
• Housing material: Polycarbonate (PC)
• Colour: Grey (RAL 7035)
• Halogen-free: Yes
• Flame retardant: Yes, self-extinguishing
• Impact resistance: IK08
• Operating temperature range: -35 °C to +80 °C
• Number of cable entries: 8
• Cable entry type: Elastic entries
• Lid type: Opaque
• Seal material: TPE
• Mounting type: Internal/External mounting points
• Certification: VDE

Why choose it

The Abox Pro SL-6² combines high ingress protection with a compact design, making it suitable for use in food processing, chemical plants, or outdoor installations where washdowns and harsh weather are common. The halogen-free, self-extinguishing polycarbonate housing adds an extra layer of safety in fire-sensitive areas.

Ideal use cases

• Outdoor electrical distribution in industrial facilities
• Connection points in food and beverage production lines
• Junction boxes for machinery exposed to high-pressure cleaning
• Installations requiring VDE-certified components

Good to know

The elastic cable entries allow for quick and secure installation without additional glands, and the internal/external mounting points offer flexible fixing options. The TPE seal ensures long-term reliability even under temperature fluctuations.
