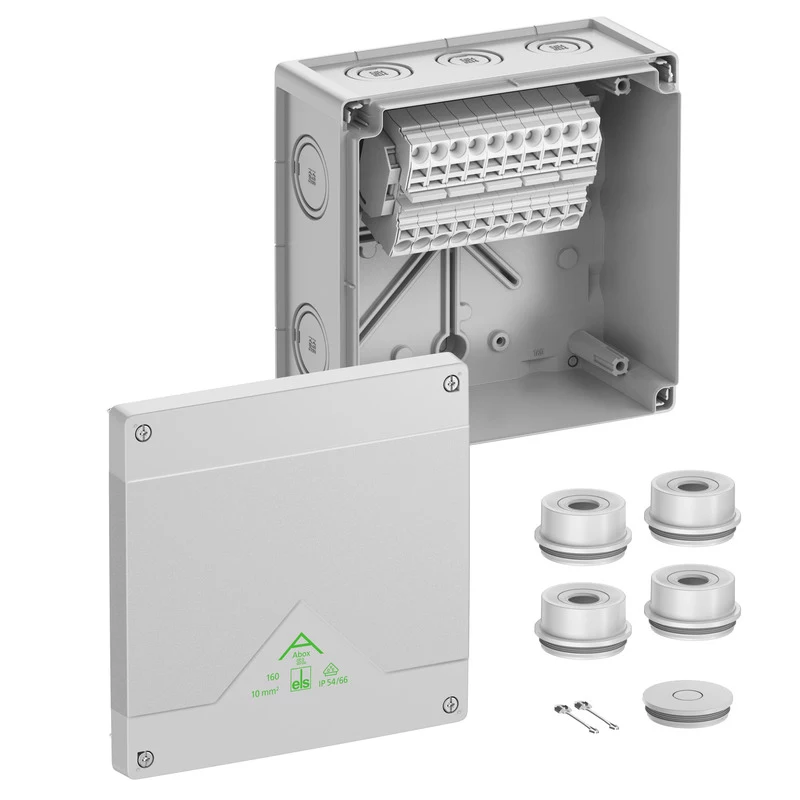

SPELSBERG Abox SL-10² jakorasia, IP55/IP66, max. 10 mm², harmaa 81044001

The Abox SL-10² stands out with its dual protection rating: IP55 when fitted with cable glands, and IP66 with closed entries, making it adaptable to both cabled and sealed installations. Its compact yet robust design accommodates conductors up to 10 mm², ideal for industrial and outdoor electrical distribution.

Highlights

• Protection class IP55 with cable glands, IP66 with closed entries
• Max. conductor cross-section 10 mm²
• Rated insulation voltage 690 V, rated current 32 A
• Housing and lid made of halogen-free, flame-retardant polypropylene (RAL 7035)
• 8 elastic membrane entries for M25/M32 cable glands
• Internal or external mounting tabs for flexible installation
• Ambient temperature range -25 °C to +40 °C
• Impact resistance IK07

In daily use

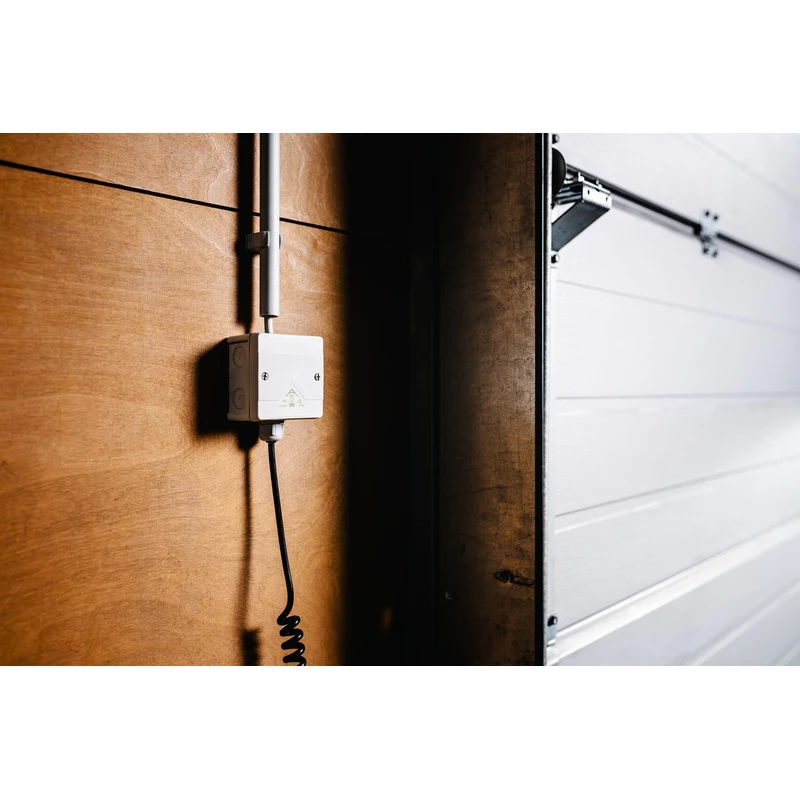

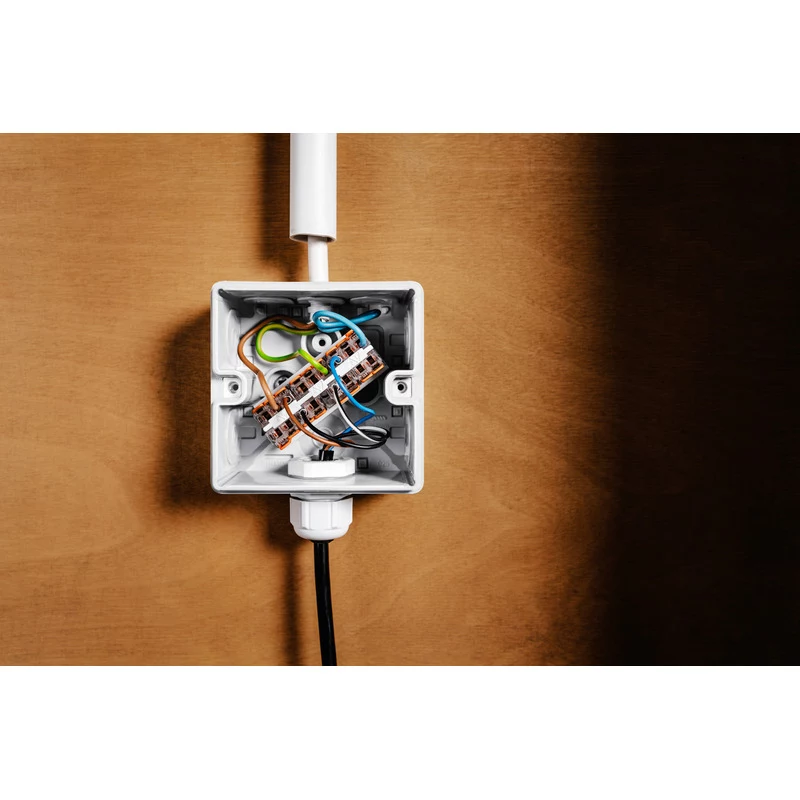

The quick-release lid fasteners allow tool-free access, while the 5-pole terminal block accepts solid or stranded conductors from 1.5 to 10 mm². The TPE seal ensures long-term ingress protection, and the glow wire test at 750 °C confirms fire safety. Whether mounted on a wall or inside an enclosure, the Abox SL-10² provides reliable connection space for power and control circuits.

Full specifications

• Protection class: IP55 (with cable glands), IP66 (with closed entries)
• Max. conductor cross-section: 10 mm²
• Rated insulation voltage: 690 V
• Rated current: 32 A
• Housing material: Polypropylene (PP)
• Lid material: Polypropylene (PP)
• Colour: Grey (RAL 7035)
• Number of entries: 8 (elastic membranes)
• Entry type: Elastic membranes, suitable for cable glands M25/M32
• Mounting type: Internal or external mounting tabs
• Ambient temperature range: -25 °C to +40 °C
• Halogen-free: Yes
• Flame retardant: Yes (VDE tested)
• Impact resistance: IK07
• Lid fastening: 4x quick-release fasteners
• Seal material: Thermoplastic Elastomer (TPE)
• Terminal type: 5-pole terminal block
• Terminal cross-section: 1.5 - 10 mm²
• Glow wire test: 750 °C

Final note

The Abox SL-10² combines a wide temperature range, halogen-free materials, and dual IP ratings, making it a dependable choice for demanding electrical installations.
