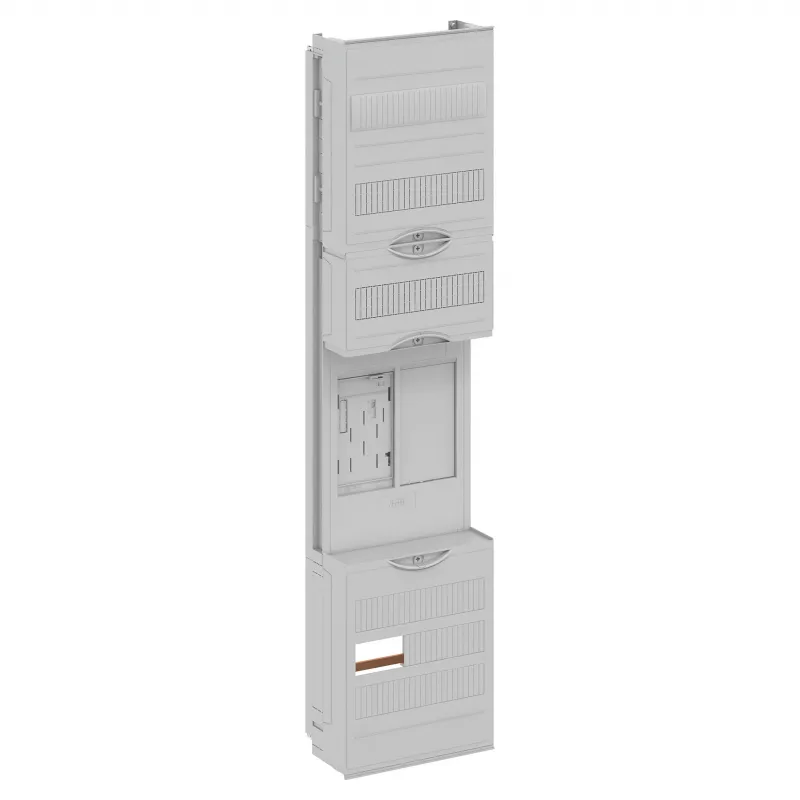

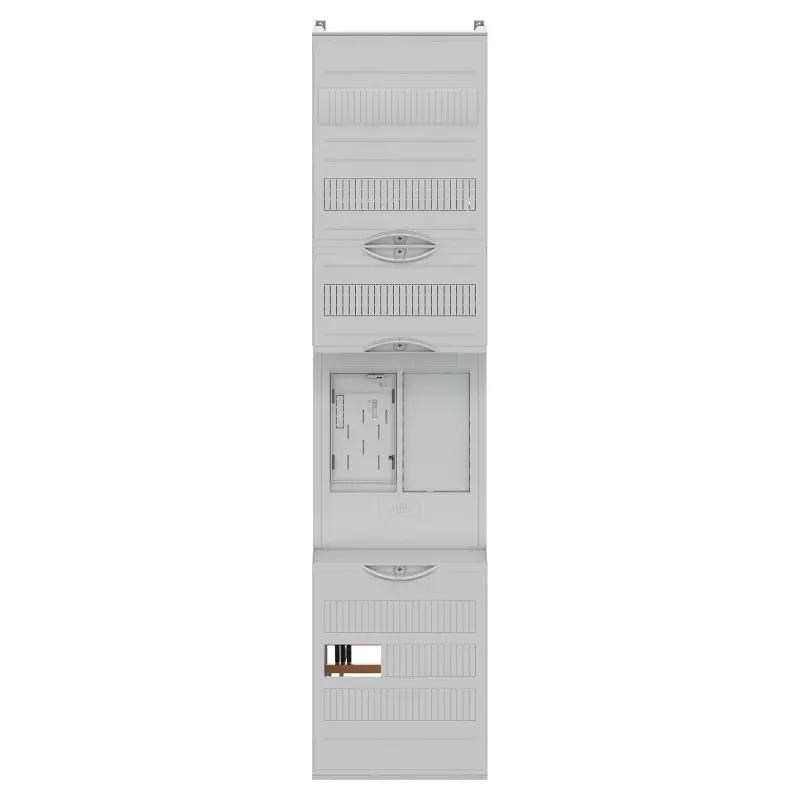

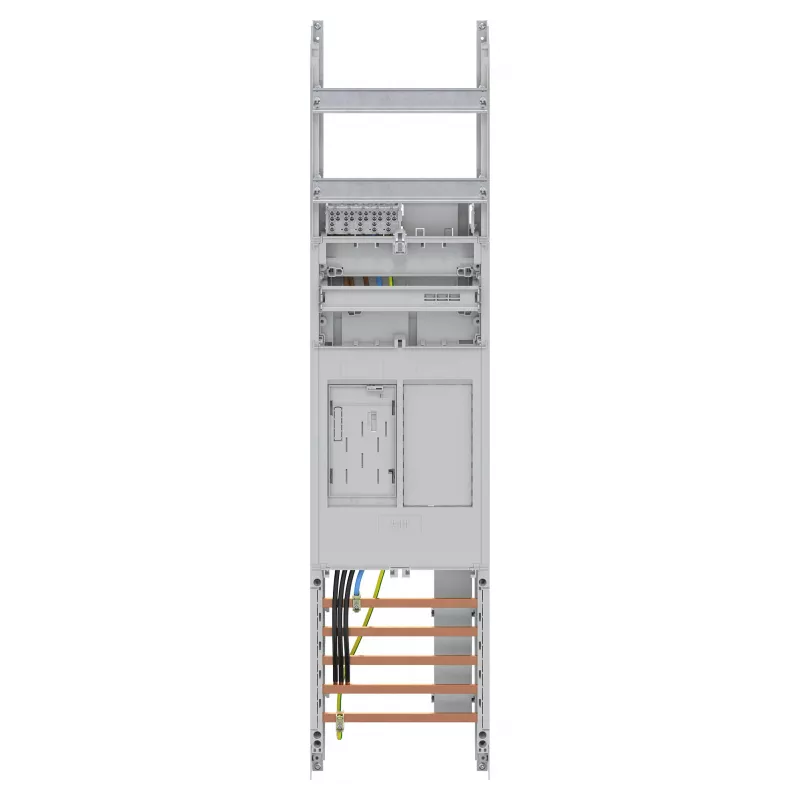

Striebel & John BF17A1XXB mittarikenttä 7RE 1Z16Q esikokoonpantu

The Striebel & John BF17A1XXB is a pre-wired metering field designed for residential and commercial metering applications. It accommodates one electronic household meter (eHZ) and provides a 5-pole busbar system with screw terminals for secure connections. The unit is rated for 63 A and 230/400 V AC at 50 Hz, and includes space for a 3-pole main circuit breaker. With a height of 7 RE (Rastereinheiten), it is suitable for installation in standard meter cabinets.

Advantages

Pre-wired for quick installation; compact 7 RE design saves space; robust steel sheet construction; complies with DIN VDE 0603-1 and VDE-AR-N 4100 standards.

Suitable for

• Residential metering
• Commercial metering
• Installation in meter cabinets

Key specifications

• Product Type: Metering Field
• Number of Meter Places: 1
• Meter Type Compatibility: eHZ
• Pre-wired: Yes
• Rated Current: 63 A
• Rated Voltage: 230/400 V AC
• Rated Frequency: 50 Hz
• Busbar System: 5-pole
• Connection Technology: Screw terminals
• Main Connection Cross-section: 16 mm²
• Space for Main Circuit Breaker: Yes, 3-pole
• Protection Class (internal): IP2XC
• Material: Steel sheet
• Mounting Type: For installation in meter cabinets
• Height Units (RE): 7 RE
• Standards: DIN VDE 0603-1, DIN 43870-1, VDE-AR-N 4100

Recommendations

Ensure compatibility with your meter cabinet dimensions and local regulations. Professional installation recommended.
