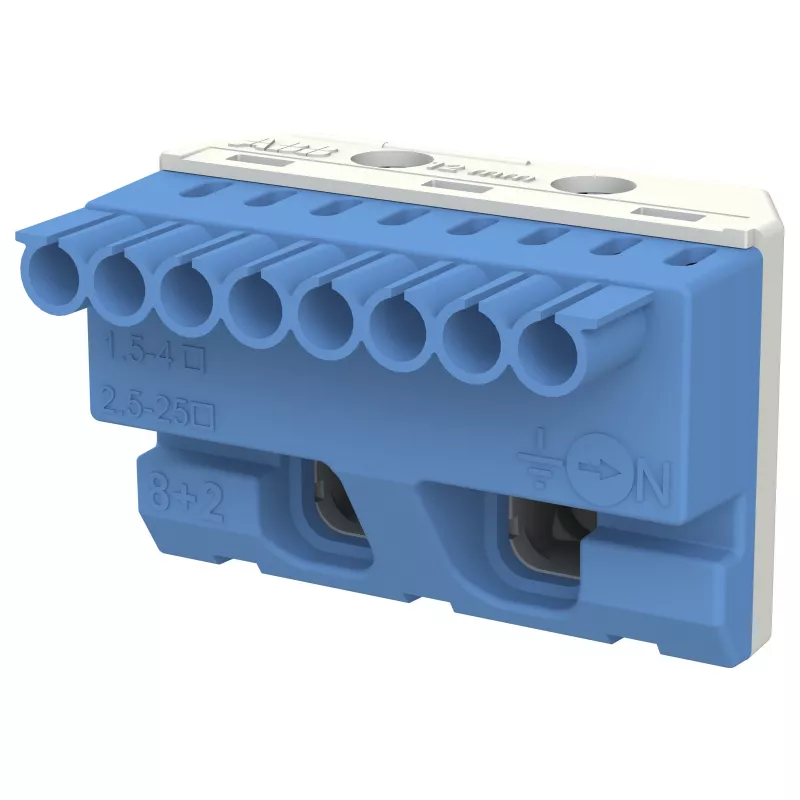

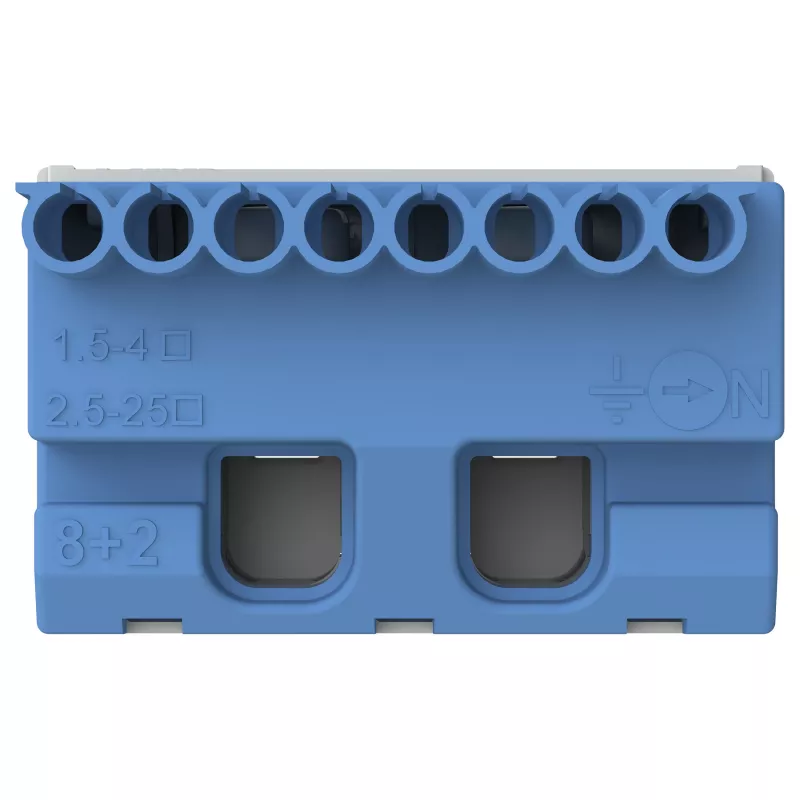

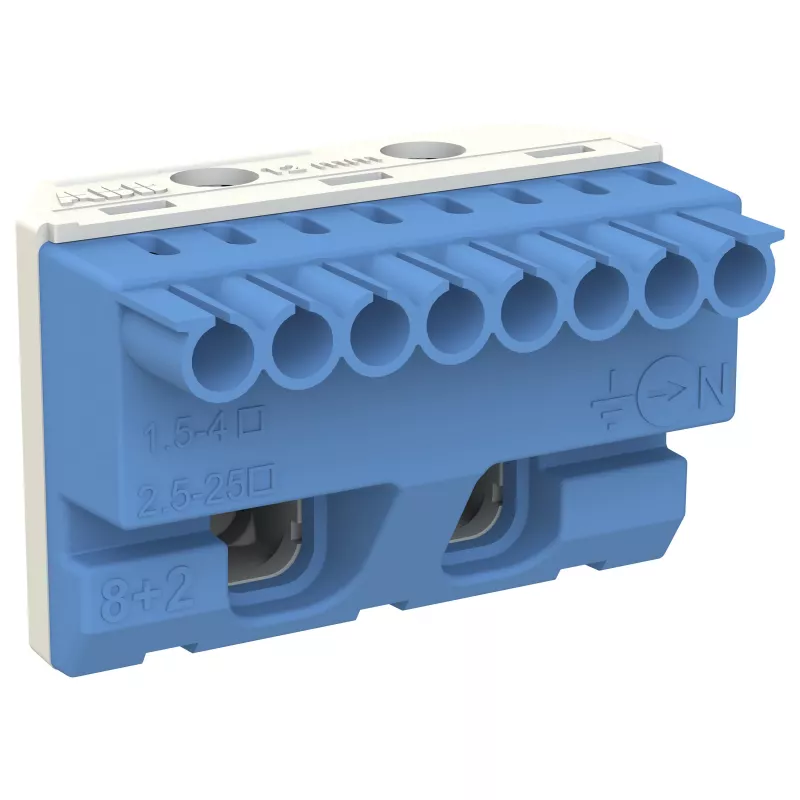

Striebel & John nollakisko 8x4+2x25mm² ZK82B

The Striebel & John Neutral Terminal Block ZK82B is a high-quality neutral terminal block designed for use in distribution boards and switchgear. It features 8 small terminals for conductors up to 4 mm² and 2 large terminals for conductors up to 25 mm², providing a total of 10 connections. With a rated current of 100 A and rated voltage of 400 V AC, this terminal block ensures reliable and safe electrical connections. The blue polyamide housing and brass terminals offer durability and excellent conductivity.

Advantages

This neutral terminal block offers easy and secure screw-type connections, suitable for both flexible and rigid conductors. Its compact design saves space in distribution panels while providing ample connection points. The high-quality materials ensure long-lasting performance and resistance to heat and corrosion.

Suitable for

• Distribution boards and switchgear
• Neutral busbar systems
• Industrial and commercial electrical installations

Key specifications

• Product Type: Neutral Terminal Block
• Number of Small Terminals: 8
• Conductor Cross-Section (Small, Flexible): 0.75 - 4 mm²
• Conductor Cross-Section (Small, Rigid): 1.5 - 4 mm²
• Number of Large Terminals: 2
• Conductor Cross-Section (Large, Flexible): 6 - 25 mm²
• Conductor Cross-Section (Large, Rigid): 10 - 25 mm²
• Total Connections: 10
• Rated Current (In): 100 A
• Rated Voltage (Ue): 400 V AC
• Mounting: For Busbar System / Distribution Field
• Connection Type: Screw Terminal
• Insulation Material: Polyamide (PA)
• Terminal Material: Brass
• Colour: Blue
• Pole Count: 1 (Neutral)

Recommendations

For optimal performance, ensure proper tightening torque as per manufacturer guidelines. Suitable for use with copper conductors only.
