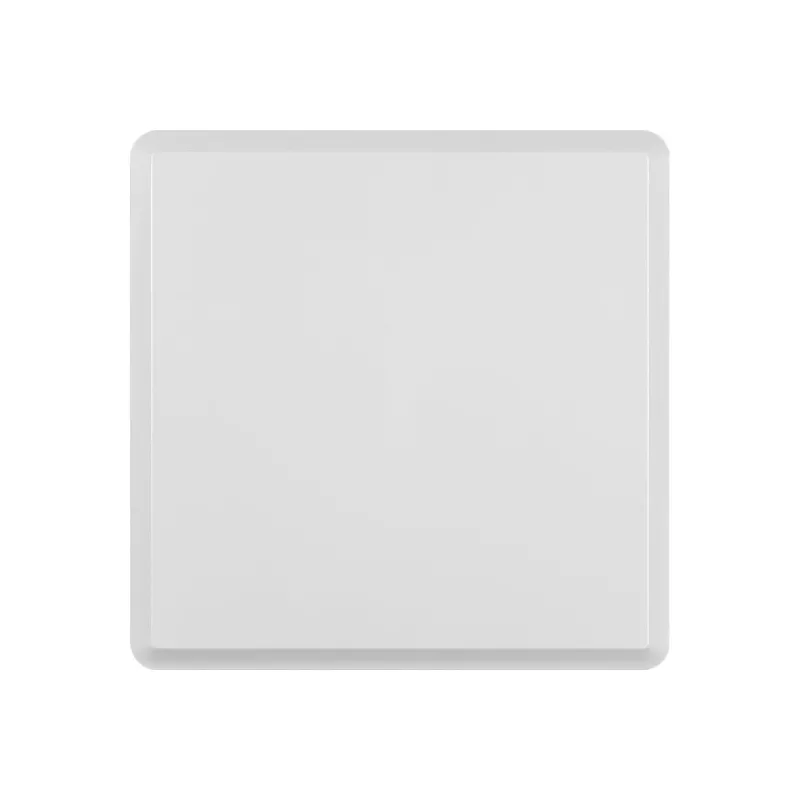

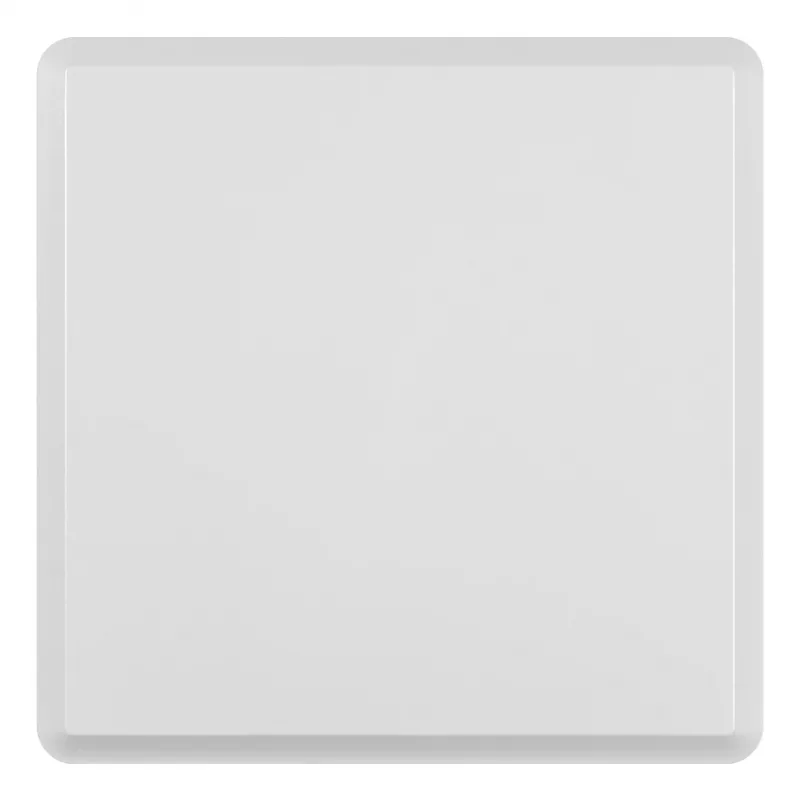

Suunta-antenni Lancom Systems AirLancer ON-Q30 — 2,4–5,875 GHz, 10 dBi, N-tyyppi

Lancom Systems AirLancer ON-Q30 is a directional outdoor Wi‑Fi sector antenna covering 2.4–5.875 GHz with a maximum gain of 10 dBi and an N‑type connector. The flat compact housing (370 × 30 × 370 mm) provides a focused 30° beam suitable for point‑to‑point or sector links and targeted coverage in demanding outdoor environments. The antenna supports 4x4 MIMO across all four ports and is weatherproof; a mounting kit with cables and adapters for wall or mast installation is included.

Advantages

The ON-Q30 combines moderate directional gain with a narrow 30° horizontal beam to concentrate radio energy where it is needed, reducing unwanted scattering and limiting interference with neighboring sectors. Built for outdoor use, it supports 4x4 MIMO to maintain robust throughput and client capacity in high‑density locations. The compact, lightweight design simplifies installation on walls or poles and the included mounting accessories enable quick integration with compatible outdoor access points.

Suitable for

• Wi‑Fi coverage in stadiums, concert halls and other high‑density venues
• Sector links for airport terminals, exhibition centers and large public spaces
• Focused outdoor coverage for specific audience or seating areas
• Integration with LANCOM outdoor access points that provide four external antenna connectors

Key specifications

• Frequency range: 2.4–5.875 GHz (dual‑band)
• Maximum gain: 10 dBi
• Beamwidth: 30° horizontal sector
• MIMO: 4x4 support across four antenna ports
• Connector type: N‑type
• Impedance: 50 Ω
• Dimensions: 370 × 30 × 370 mm; flat panel form factor
• Mounting: wall or pole mounting; mounting kit, cables and adapters included
• Color: light grey; weatherproof outdoor enclosure

How to use

Mount the antenna on a wall or pole using the supplied mounting kit and adapters, ensuring a clear line of sight toward the intended coverage area. Connect the antenna to the access point’s external antenna ports using the provided cables and verify correct N‑type connections and cable routing. Align the antenna to achieve the desired 30° sector coverage and secure all fastenings against wind and weather. After mechanical installation, configure the wireless network and antenna orientation in coordination with the access points to optimise coverage and minimise overlaps.

Recommendations

For high‑density deployments, pair the AirLancer ON‑Q30 with compatible LANCOM outdoor access points that provide four external antenna connectors to utilise full 4x4 MIMO capability. Position multiple sector antennas with appropriate azimuth separation to avoid interference between sectors and verify VSWR and cable losses during installation to ensure optimal link performance.
