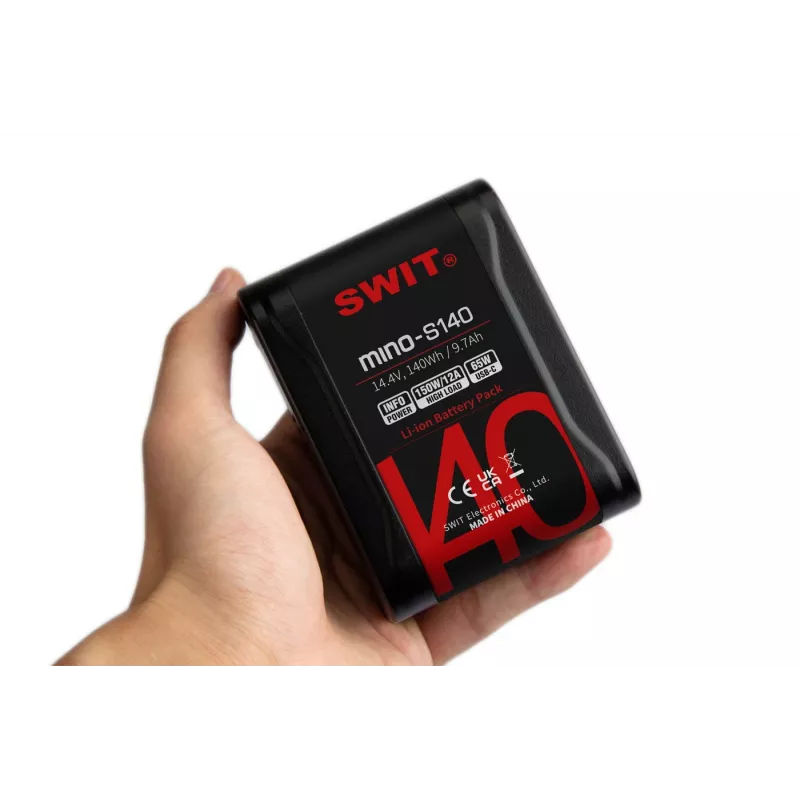

SWIT ELECTRONICS Mino-S140 V-Mount Li-Ion akku 140Wh

The SWIT ELECTRONICS Mino-S140 is a high-capacity V-Mount lithium-ion battery pack designed for professional camera and field production equipment. With a 140Wh capacity and multiple output ports, it provides reliable power for extended shoots.

Advantages

Lightweight and compact design makes it ideal for portable use. Features dual D-Tap outputs, USB-A, and USB-C Power Delivery for versatile device charging. Built-in protection circuits ensure safe operation.

Suitable for

• Professional video cameras and camcorders with V-Mount plates
• Field monitors, lights, and other production accessories
• Charging smartphones, tablets, and laptops via USB-C PD

Key specifications

• Battery Type: Lithium-Ion
• Mount Type: V-Mount
• Capacity: 140 Wh / 9.7 Ah
• Nominal Voltage: 14.4 V
• Max Output Current: 10 A (Total)
• D-Tap Output Ports: 2x (14.4V, 10A max shared)
• USB-A Output Port: 1x (5V, 2A)
• USB-C Output/Input Port: 1x (45W Power Delivery)
• USB-C PD Output Profiles: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A
• D-Tap Input: Yes (for charging)
• Charging Indicator: 4-level LED
• Operating Temperature: -20°C to +50°C
• Protection Features: Over-charge, Over-discharge, Over-current, Short-circuit, Over-temperature
• Housing Material: High-impact ABS/PC
• Airline Safe: Yes (under 160Wh, carry-on approved)

Recommendations

This battery is an excellent choice for videographers and photographers who need a reliable, high-capacity power source in the field. Its multiple output options and safety features make it a versatile addition to any kit.
