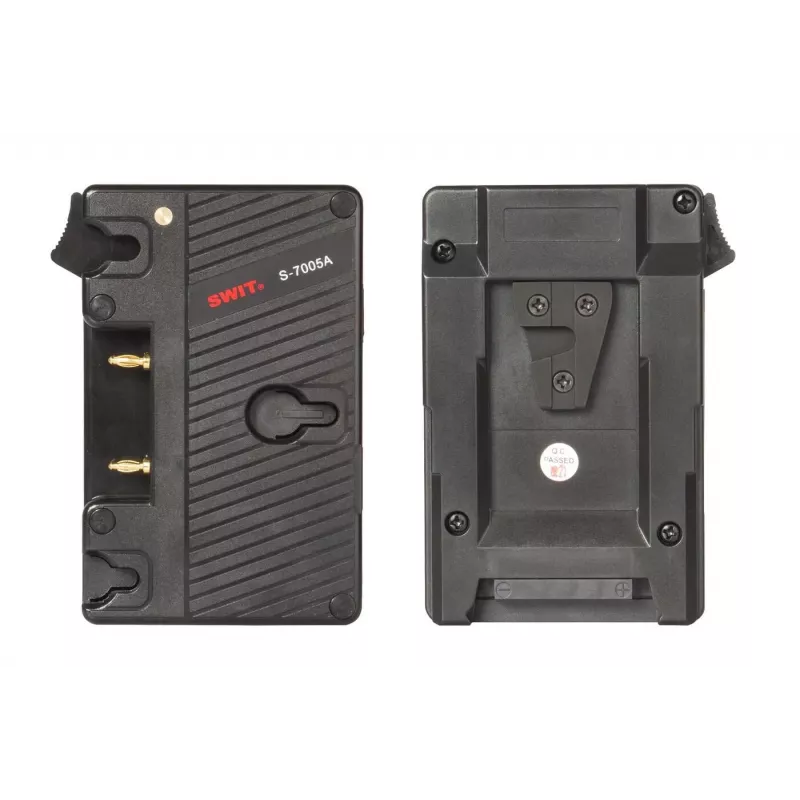

SWIT ELECTRONICS S-7005A V-Mount -akkulevy - musta - 119 mm x 85 mm x 24 mm - 120 g

The SWIT ELECTRONICS S-7005A is a compact and lightweight V-Mount battery plate designed to power your professional camera rig or accessories. It provides reliable power distribution from a V-Mount battery to multiple devices via D-Tap, USB-A, and DC barrel outputs. The plate features over-current and short-circuit protection for safe operation.

Advantages

Compact and lightweight design (120g) makes it ideal for run-and-gun setups. Three output ports allow simultaneous powering of a camera, monitor, and other accessories. Built-in protection ensures your gear stays safe.

Suitable for

• Professional videographers and filmmakers using V-Mount batteries
• Powering cameras, monitors, lights, and other 14.4V or 5V accessories
• Studio and field production where multiple devices need power from a single battery

Key specifications

• Battery Mount Type: V-Mount
• Output Ports: 1x D-Tap, 1x USB-A, 1x DC Barrel
• D-Tap Output: 14.4V Nominal, 10A Max
• USB Output: 5V, 2A Max
• DC Barrel Output: 8V, 3A Max
• Input Voltage Range: 11-16.8V (from V-Mount battery)
• Mounting: 1/4"-20 threaded holes
• Material: ABS plastic with metal contacts
• Color: Black
• Protection: Over-current, short-circuit
• Operating Temperature: -20°C to 45°C
• LED Indicator: Power status
• Dimensions: 119mm x 85mm x 24mm
• Weight: 120g

Recommendations

For best performance, use with a genuine SWIT V-Mount battery. The D-Tap output can power most 14.4V devices up to 10A. The USB port is ideal for charging smartphones or small accessories. Always ensure the total current draw does not exceed the maximum ratings.
