Sygonix SY-4760956 RFID-koodinäppäimistö uppoasennus 12-18 V DC IP66

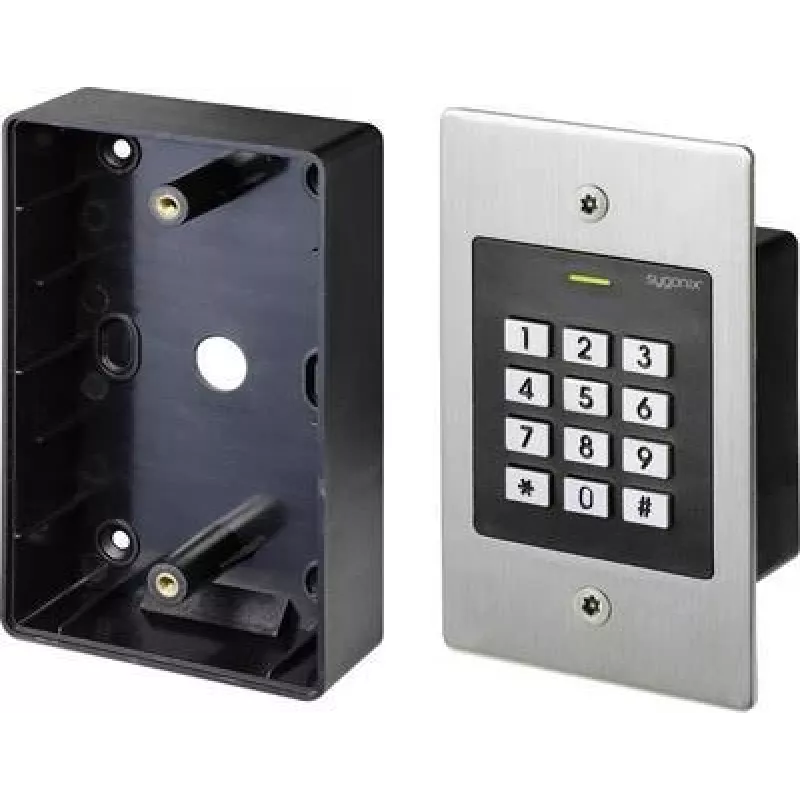

Secure building access with the Sygonix SY-4760956, a flush-mounted RFID code keypad designed for outdoor and indoor entry points. This unit combines PIN code and 125 kHz EM RFID card/tag authentication, supporting up to 2000 users. Its zinc alloy housing and IP66 rating withstand harsh weather, while the backlit keypad ensures usability in low light. Ideal for offices, warehouses, and residential complexes requiring reliable access control.

Key specifications

• Authentication: PIN code and RFID (EM 125 kHz)
• Installation: Flush-mounted (Unterputz)
• Operating voltage: 12 - 18 V DC
• IP rating: IP66 (dust-tight and protected against powerful water jets)
• User capacity: 2000 users
• Relay output: 1x NO/NC/COM, max 2A / 30V DC
• Housing material: Zinc alloy
• Operating temperature: -40 °C to +60 °C
• Card reading distance: 3 - 6 cm
• Current consumption: standby max 100 mA, active max 130 mA
• Additional functions: anti-tamper alarm, door open alarm, doorbell function

Why choose it

The Sygonix SY-4760956 offers robust, weatherproof access control with dual authentication methods. Its flush-mount design integrates seamlessly into walls, and the anti-tamper alarm enhances security. With a wide operating temperature range and durable construction, it is built for long-term reliability.

Ideal use cases

• Office building entrances
• Warehouse and industrial facility access points
• Residential complexes and gated communities
• Server rooms and restricted areas

Good to know

The keypad operates on 12-18 V DC and includes a doorbell function for visitor notification. The relay output can control electric locks or gates directly. For installation, a flush-mounted back box is required (not included).
