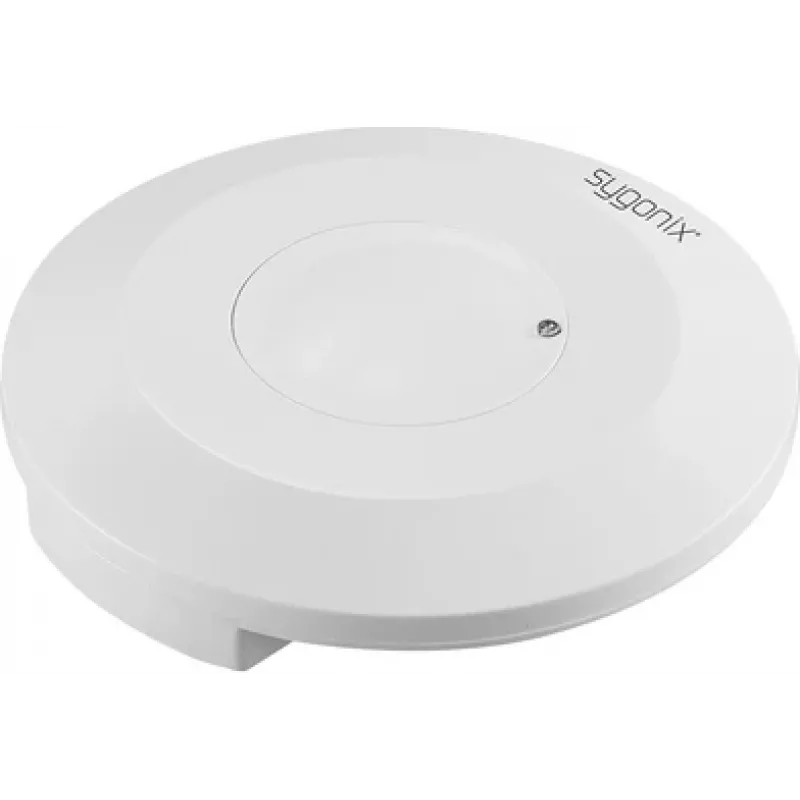

Sygonix SY-6118228 HF-liiketunnistin kattoasennus 360° 16m 2000W valkoinen

Unlike conventional PIR sensors that rely on heat signatures, this Sygonix ceiling-mounted motion detector uses high-frequency 5.8 GHz radar technology. It detects movement through thin walls, glass, and doors, making it ideal for bathrooms, hallways, and offices where discreet, reliable switching is essential.

Highlights

• 360° detection angle with a range of up to 16 m in diameter
• Switches loads up to 2000 W (resistive) or 1000 W (inductive)
• Adjustable time delay from 10 seconds to 12 minutes
• Light threshold adjustable from 3 to 2000 lux
• Surface-mounted ceiling installation, IP20 for indoor use

In daily use

The detector operates at 230 V AC and consumes only 0.9 W in standby. Mount it at a height of 2.5 to 3.5 m for optimal coverage. The white housing blends into most ceilings, and the HF signal penetrates non-metallic obstacles, so you can hide it behind a suspended ceiling or in a lamp housing.

Full specifications

• Detection technology: High-Frequency (HF)
• Operating frequency: 5.8 GHz
• Mounting type: Ceiling surface-mounted
• Detection angle: 360°
• Max detection range: 16 m
• Max switching power (resistive): 2000 W
• Max switching power (inductive): 1000 W
• Operating voltage: 230 V AC
• IP rating: IP20
• Application area: Indoor
• Colour: White
• Time setting range: 10 s - 12 min
• Lux setting range: 3 - 2000 lx
• Recommended mounting height: 2.5 - 3.5 m
• Power consumption (standby): 0.9 W

Final note

The Sygonix SY-6118228 offers radar-based motion detection with flexible settings, making it a dependable choice for automatic lighting control in indoor spaces.
