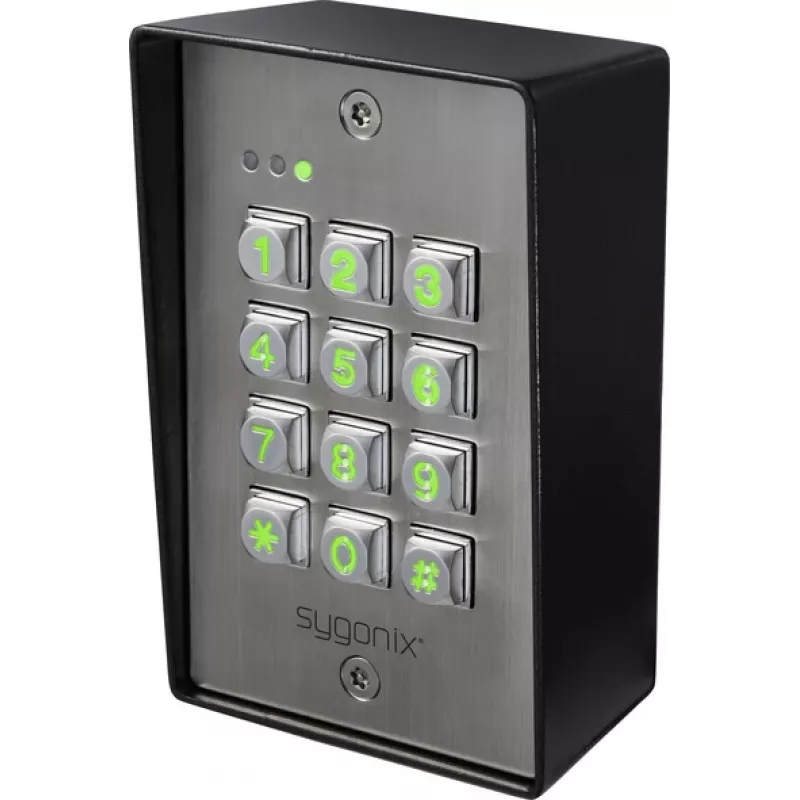

Sygonix SY-6888064 pinta-asennettava koodilukko, 12-24V DC/AC, IP65, valaistu näppäimistö

The Sygonix SY-6888064 code lock stands out with its illuminated keypad and rugged zinc-alloy housing, making it suitable for outdoor access control in all weather conditions. It supports up to 2000 user codes and offers flexible relay configuration for electric strikes or magnetic locks.

Highlights

• Illuminated keypad for easy use in low light
• IP65 weatherproof rating for outdoor installation
• Supports up to 2000 user codes
• Relay output with adjustable activation time (1-99 seconds) or latching mode
• Tamper alarm for added security

In daily use

Mount the keypad near the entrance and connect it to your door strike or magnetic lock. Users simply enter their personal code to gain access. The keypad works with both 12V and 24V DC or AC power supplies, giving you flexibility in wiring. The relay can be set to pulse for a set time or stay latched, depending on your door type. Additional inputs for a door contact and exit button allow for a complete access control setup.

Full specifications

• Product type: Access control keypad / code lock
• Mounting type: Surface mount
• Operating voltage: 12V DC/AC, 24V DC/AC
• Ingress protection: IP65
• Keypad: Illuminated
• Maximum users: 2000
• Housing material: Zinc alloy
• Operating temperature: -40 to +60 °C
• Relay outputs: 1 (NO/NC)
• Security features: Tamper alarm
• Input ports: Door contact, exit button
• Additional functions: Doorbell function, adjustable relay time (1-99s), latching mode
• Standby current consumption: < 30 mA
• Active current consumption: < 60 mA
• Operating humidity: 10-90% RH (non-condensing)

Final note

A reliable and weatherproof code lock for managing access to residential or commercial premises.
