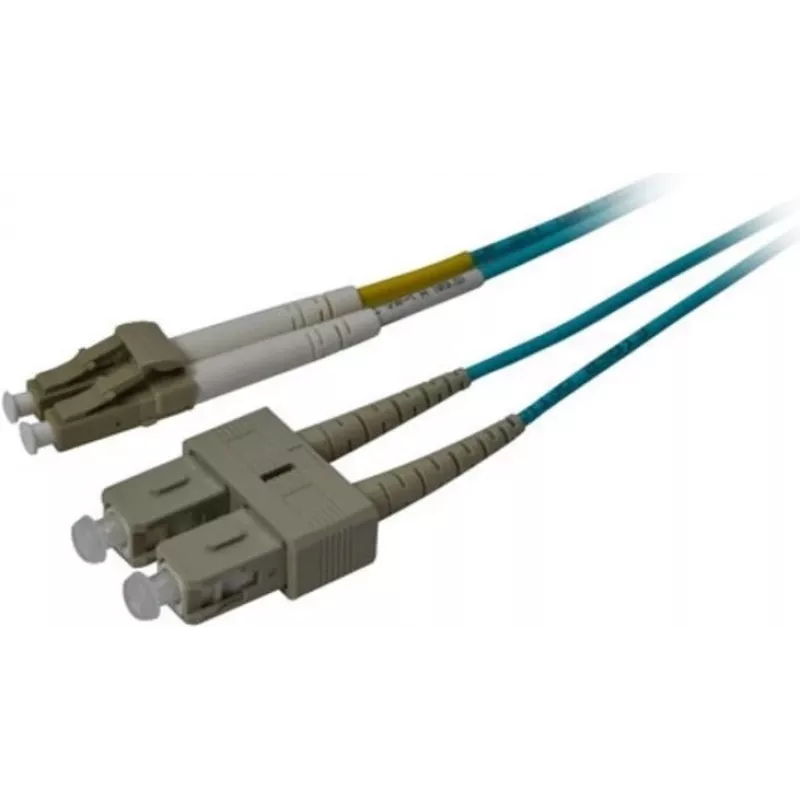

Synergy 21 10m OM3 LC-SC duplex kuituverkkokaapeli - aqua

The Synergy 21 10m OM3 LC-SC Duplex Fiber Optic Patch Cable is a high-performance multimode fiber optic cable designed for reliable data transmission in enterprise networks, data centers, and telecommunications applications. With a length of 10 meters and OM3 performance, it supports high-bandwidth applications such as Gigabit Ethernet and 10 Gigabit Ethernet.

Advantages

This cable offers low insertion loss (<0.3 dB) and high return loss (>30 dB), ensuring excellent signal integrity. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces by reducing toxic fumes and smoke in case of fire. The duplex design with LC and SC connectors allows for easy polarity management and compatibility with standard network equipment.

Suitable for

• Data center interconnects
• Enterprise network cabling
• Telecommunications infrastructure
• Fibre Channel storage area networks
• High-speed Ethernet applications (1/10 Gbps)

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode
• Fiber Class: OM3
• Core/Cladding: 50/125 µm
• Length: 10 m
• Connector A: LC Duplex Male
• Connector B: SC Duplex Male
• Jacket Color: Aqua
• Jacket Material: LSZH
• Insertion Loss: <0.3 dB
• Return Loss: >30 dB
• Wavelength Support: 850 nm, 1300 nm
• Bandwidth (850nm): 1500 MHz·km
• Bandwidth (1300nm): 500 MHz·km

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for backbone cabling and high-speed links where reliability and low latency are critical.
