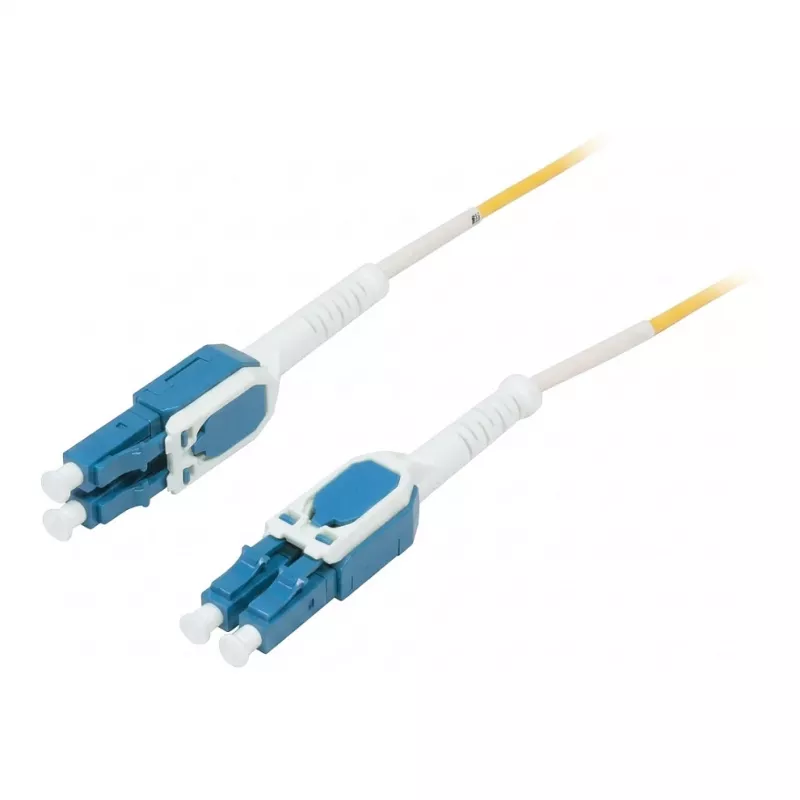

Synergy21 kuitu-patch-kaapeli 1,0m LC-LC Duplex OS2 Single-Mode 9/125µm Uniboot Rotatable Push/Pull 2mm keltainen

The Synergy21 S215526V2 is a high-performance fiber optic patch cable designed for reliable single-mode transmission in data centers, telecommunications, and local area networks. With a length of 1.0 meter and LC-LC duplex connectors featuring a rotatable Uniboot design and push/pull latching mechanism, this cable ensures easy installation and optimal space utilization in high-density environments. The 9/125µm core/cladding and OS2 standard support wavelengths of 1310 nm and 1550 nm, delivering low insertion loss (≤0.2 dB) and high return loss (≥50 dB). The yellow jacket with a 2 mm outer diameter provides durability and easy identification.

Advantages

Rotatable Uniboot connector allows polarity reversal without additional tools, simplifying cable management. Push/pull tab enables easy insertion and removal even in tight spaces. Duplex design with two fibers supports bidirectional communication. Low insertion loss ensures minimal signal degradation, while high return loss reduces reflections for stable transmission.

Suitable for

• High-density data center cabling
• Telecommunications networks
• LAN and enterprise fiber infrastructure
• FTTx and backbone applications

Key specifications

• Fiber mode: Single-Mode (OS2)
• Core/Cladding: 9/125 µm
• Number of fibers: 2 (Duplex)
• Connectors: LC Duplex to LC Duplex
• Connector design: Uniboot (rotatable)
• Latching: Push/Pull
• Cable length: 1.0 m
• Cable outer diameter: 2 mm
• Jacket color: Yellow
• Insertion loss (typical): ≤0.2 dB
• Return loss (typical): ≥50 dB
• Supported wavelengths: 1310 nm, 1550 nm
• Polarity: A-B, B-A

Recommendations

For optimal performance, ensure connectors are clean before installation. Use appropriate patch panels and splicing equipment. This cable is ideal for short-reach single-mode links within racks or between adjacent equipment.
