SYNERGY21 kuitu-patchkaapeli 20m LC-LC OM3 Uniboot käännettävä Push/Pull 2mm - monimuotokuitu (S215549)

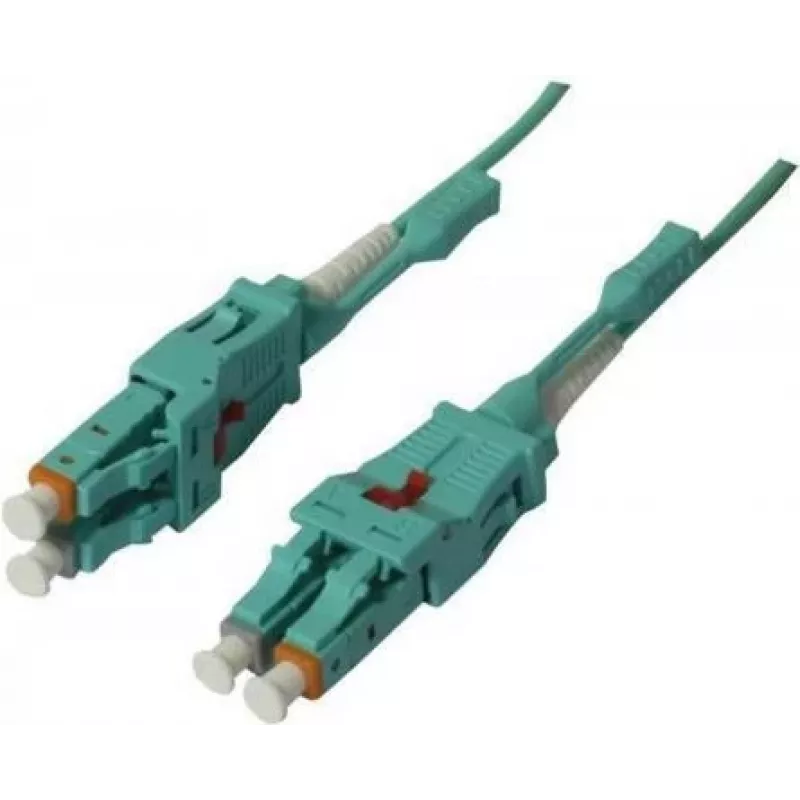

The SYNERGY21 S215549 is a high-performance 20-meter multimode fiber optic patch cable designed for reliable data transmission in demanding network environments. Featuring a duplex LC to LC connection with an innovative Uniboot design, this cable offers rotatable polarity and push/pull tabs for easy installation and polarity reversal without tools. The 50/125 µm OM3 fiber core supports 10 Gigabit Ethernet and is ideal for data centers, LANs, and SANs.

Advantages

This cable provides exceptional signal integrity with low insertion loss (≤0.3 dB) and high return loss (≥30 dB). The LSZH (Low Smoke Zero Halogen) jacket ensures safety in confined spaces, while the 2.0 mm diameter offers flexibility and space-saving routing. The rotatable Uniboot connector simplifies polarity changes, reducing installation time and errors.

Suitable for

• 10 Gigabit Ethernet networks
• Fibre Channel applications
• Data center interconnects
• Local Area Networks (LAN)
• Storage Area Networks (SAN)

Key specifications

• Fiber Type: Multimode OM3
• Core/Cladding: 50/125 µm
• Connectors: 2x LC to 2x LC, Male/Male
• Connector Design: Uniboot, Rotatable, Push/Pull
• Cable Length: 20 m
• Cable Diameter: 2.0 mm
• Jacket Material: LSZH
• Cable Color: Aqua
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥30 dB
• Operating Temperature: -20°C to +70°C
• Standards: TIA/EIA-568-C.3, ISO/IEC 11801, EN 50173-1

Recommendations

For optimal performance, pair this cable with OM3-compatible transceivers and ensure proper handling to maintain low insertion loss. Ideal for high-speed data centers requiring reliable and flexible cabling solutions.
