SYNERGY21 kuitupatch-kaapeli 70m OM3 LC-LC duplex LSZH sininen

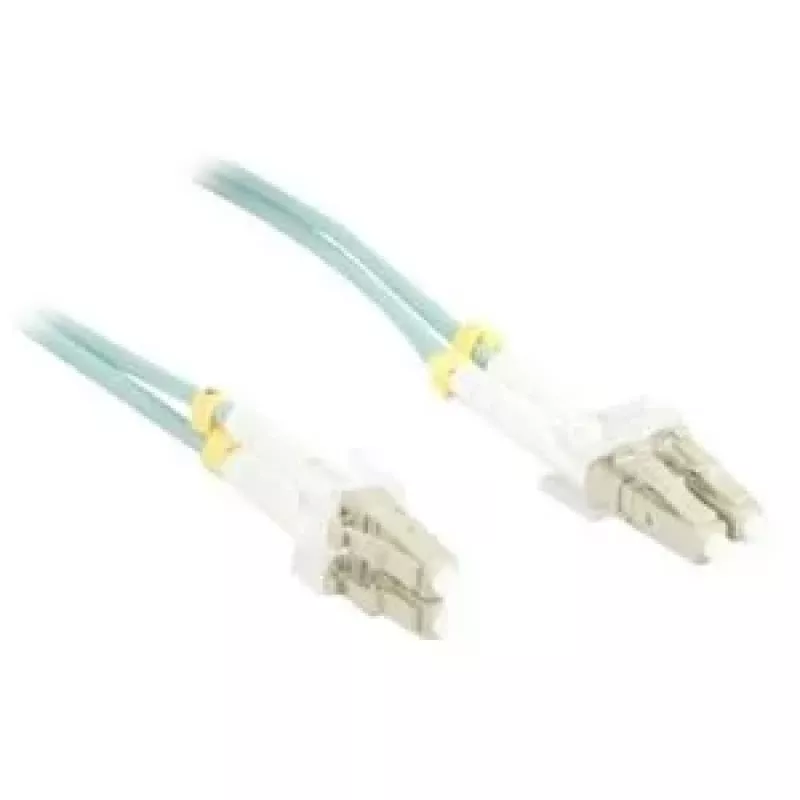

The SYNERGY21 Fiber Optic Patch Cable (S216241) is a high-performance 70-meter OM3 multimode duplex cable designed for reliable high-speed data transmission in data centers, enterprise networks, and telecommunications environments. With LC to LC connectors and a robust LSZH jacket, this cable ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

• Supports data rates up to 100 Gbps over 70 meters (850nm)
• Low insertion loss (<0.3 dB) and high return loss (>30 dB) for superior performance
• LSZH jacket reduces toxic smoke in case of fire, enhancing safety
• Durable duplex construction for bidirectional communication

Suitable for

• Data center interconnects
• Enterprise network backbone
• Telecom and server rooms
• High-speed storage area networks (SAN)

Key specifications

• Fiber Mode: Multimode
• Fiber Type: OM3
• Cable Length: 70 m
• Connector Type: LC to LC
• Connector Gender: Male / Male
• Cable Structure: Duplex
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Jacket Color: Blue
• Jacket Material: LSZH
• Operating Wavelengths: 850 nm, 1300 nm
• Maximum Data Rate: 10 Gbps (up to 300m), 40 Gbps (up to 100m), 100 Gbps (up to 70m)
• Insertion Loss: < 0.3 dB
• Return Loss: > 30 dB
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, pair this cable with OM3-compatible transceivers and ensure proper handling to avoid bending beyond the minimum bend radius. Ideal for high-bandwidth applications requiring reliable, low-latency connections.
