SYNERGY21 kuitupatchkaapeli 15 m OM5 LC-LC duplex vihreä

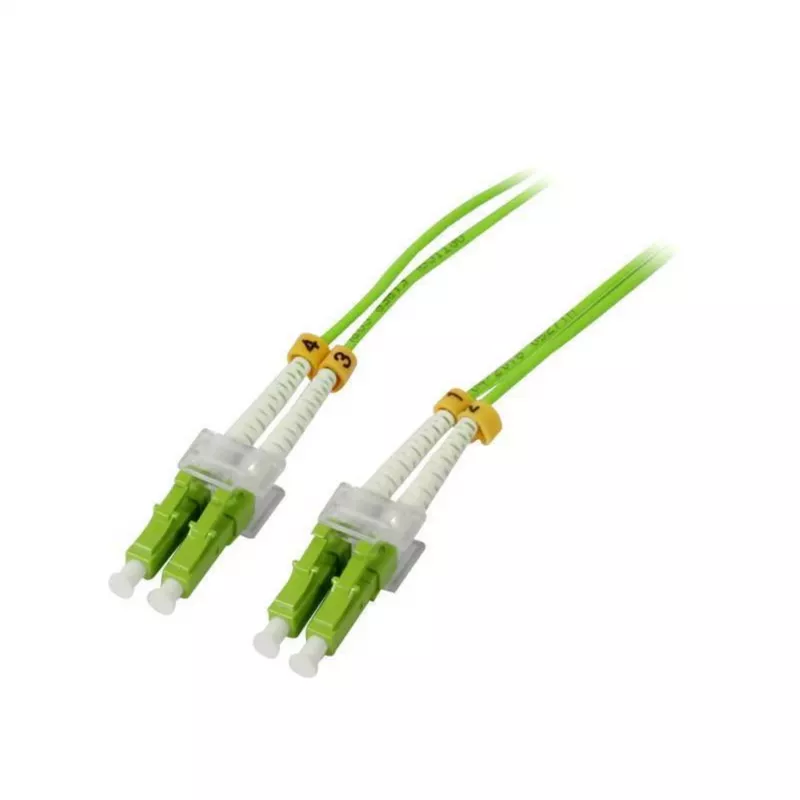

The SYNERGY21 S215502 is a high-performance fiber optic patch cable designed for demanding data center and enterprise network environments. With a length of 15 meters and OM5 laser-optimized multimode fiber, it supports high-speed data transmission over multiple wavelengths, including 850 nm and 953 nm. The cable features LC duplex connectors on both ends, male/male gender, and a green LSZH jacket for safety and easy identification.

Advantages

OM5 fiber provides enhanced bandwidth and flexibility for next-generation networks, supporting up to 2800 MHz·km at 850 nm and 1800 MHz·km at 953 nm. The LSZH jacket ensures low smoke and zero halogen, making it safe for use in confined spaces. Typical insertion loss of ≤0.3 dB and return loss of ≥30 dB guarantee reliable signal integrity.

Suitable for

• Data centers and server rooms
• Storage area networks (SAN)
• Local area networks (LAN)
• High-speed backbone connections
• Telecommunications infrastructure

Key specifications

• Cable length: 15 m
• Fiber type: OM5 multimode
• Connectors: 2x LC duplex to 2x LC duplex, male/male
• Core/cladding: 50/125 µm
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Green
• Insertion loss: ≤0.3 dB typical
• Return loss: ≥30 dB typical
• Minimum bend radius: 7.5 mm (non-stressed)
• Supported wavelengths: 850 nm, 953 nm
• Operating temperature: -20°C to 70°C
• Standards: TIA/EIA-568-C.3, ISO/IEC 11801, IEC 60793-2-10 Type A1a.4

Recommendations

For optimal performance, ensure connectors are clean and properly mated. This cable is ideal for high-speed networks requiring reliable, low-loss connections. Pair with compatible OM5 transceivers for best results.
