SYNERGY21 kuitutarkistin/-testeri vara-adapteri VFL 2,5mm - 1,25mm - adapteri

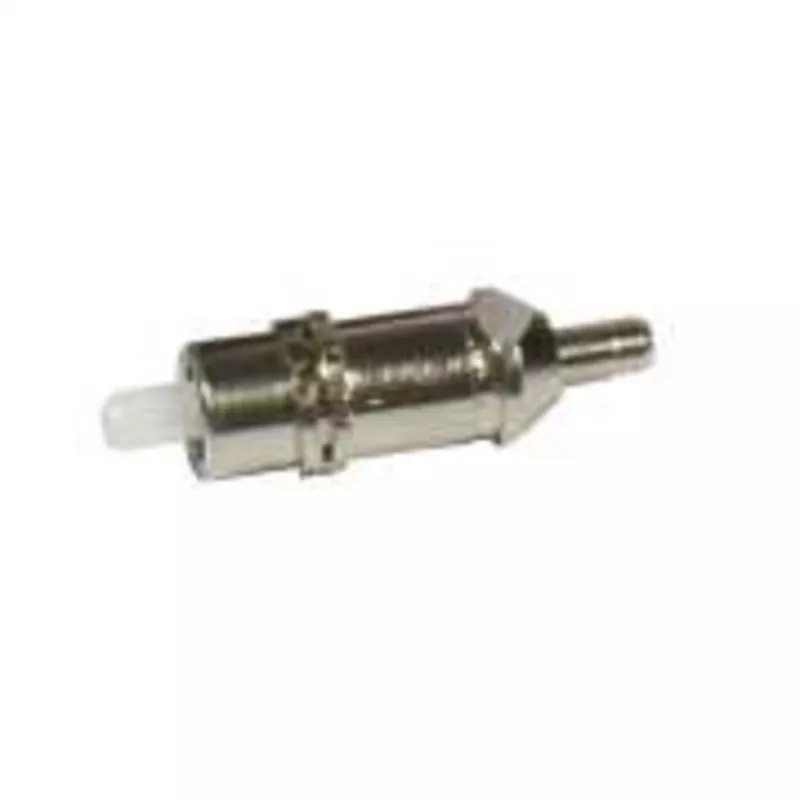

The SYNERGY21 Fibre Checker/Tester Replacement Adapter is a precision accessory designed for Visual Fault Locators (VFLs) with a 2.5mm output. This adapter enables testing of fibers terminated with 1.25mm connectors, such as LC and MU, by converting the VFL's 2.5mm ferrule interface to a 1.25mm ferrule. Crafted with a metal alloy body and ceramic ferrule, it ensures low insertion loss (<0.5 dB) and high durability (>500 mating cycles). Ideal for network technicians and fiber optic installers, this adapter expands the versatility of your VFL tool.

Advantages

• Converts 2.5mm VFL output to 1.25mm connector interface
• Compatible with SC, FC, ST connectors on the VFL side and LC, MU on the fiber side
• Low insertion loss (<0.5 dB) for accurate fault detection
• Robust metal alloy body with ceramic ferrule for long-lasting performance
• Wide operating temperature range (-20°C to +70°C)

Suitable for

• Visual Fault Locators with universal 2.5mm ports
• Testing fibers with 1.25mm connectors (LC, MU)
• Fiber optic network maintenance and troubleshooting
• Telecommunications and data center applications

Key specifications

• Product Type: Fiber Optic Adapter
• Input Connector: 2.5mm Ferrule (compatible with SC, FC, ST)
• Output Connector: 1.25mm Ferrule (compatible with LC, MU)
• Insertion Loss: <0.5 dB
• Durability: >500 Mating Cycles
• Material: Metal Alloy Body, Ceramic Ferrule
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Colour: Silver

Recommendations

For optimal performance, ensure your VFL has a standard 2.5mm output port. This adapter is a direct replacement for the original accessory and is compatible with Synergy 21 Fibre Checker/Tester units.
