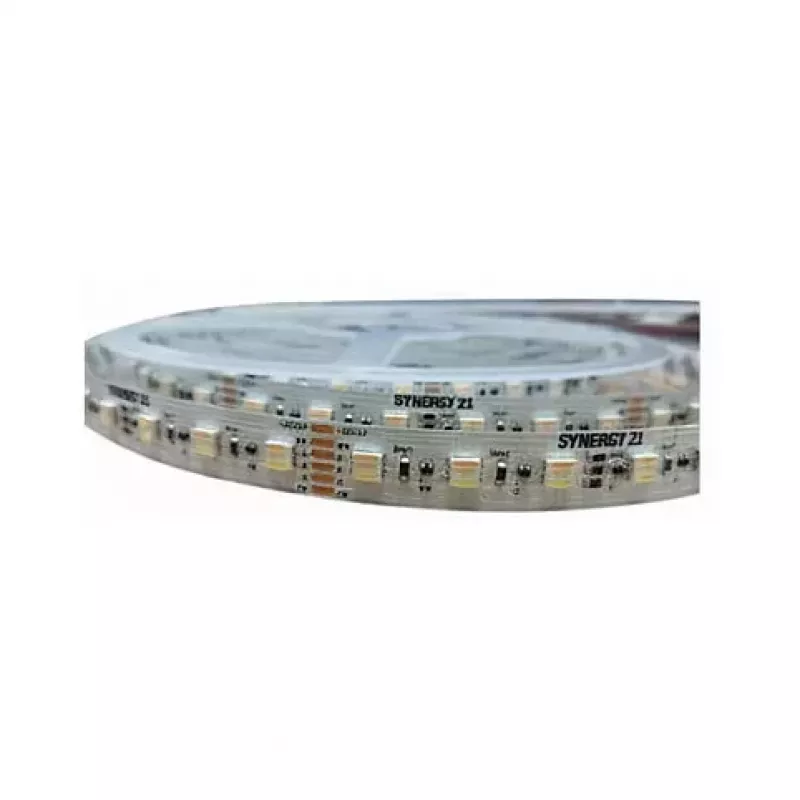

SYNERGY21 LED Flex Strip 5050 - 60 RGB Pixel DC24V SM16703 IP20

The SYNERGY21 LED Flex Strip 5050 is a high-performance RGB pixel strip designed for dynamic lighting effects. With 60 individually addressable SMD 5050 LEDs per meter, it delivers vibrant full-color illumination with over 16 million colors. Operating at DC 24V, this strip is ideal for decorative, architectural, and entertainment lighting projects.

Advantages

Individually addressable pixels allow for precise control of each LED, enabling stunning animations and color sequences. The SM16703 control IC ensures smooth data transmission and compatibility with popular controllers. Self-adhesive 3M backing simplifies installation on clean, dry surfaces. Cuttable every 3 LEDs (approx. 5 cm) for custom lengths.

Suitable for

• Architectural accent lighting
• Entertainment venues and stages
• Retail displays and signage
• Home automation and mood lighting
• DIY projects and custom installations

Key specifications

• LED Chip Type: SMD 5050
• LED Density: 60 LEDs/meter
• Color Type: RGB (Full Color)
• Addressability: Individually Addressable (Pixel Control)
• Control IC: SM16703
• Operating Voltage: DC 24V
• Ingress Protection (IP) Rating: IP20
• Power Consumption: ~14.4 W/meter
• Beam Angle: 120°
• Cuttable Segments: Every 3 LEDs (~5 cm)
• Adhesive Backing: Yes, 3M self-adhesive
• Lifespan: >50,000 hours
• Operating Temperature: -20°C to +50°C
• Certifications: CE, RoHS
• Dimmability: Yes, via compatible controller
• Connectivity: 3-pin JST SM connector (Data, VCC, GND)

Recommendations

Use with a compatible 24V power supply and pixel controller (e.g., SP108E, SP107E) for best results. Ensure proper voltage drop management for runs longer than 5 meters. For outdoor use, select an IP65 or higher rated strip.
