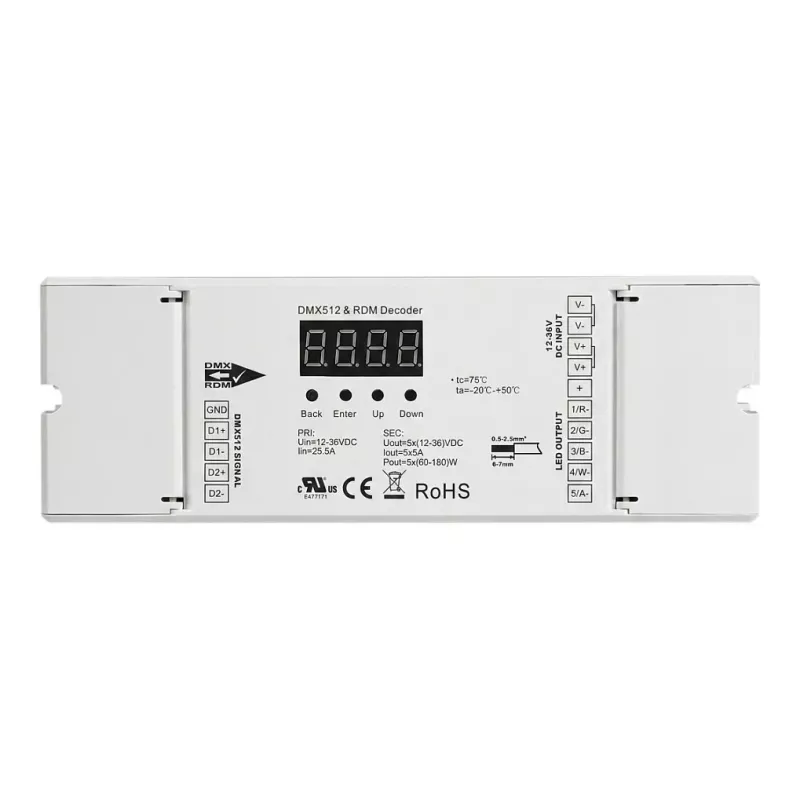

SYNERGY21 LED-ohjain DMX 512 4x5A 16bit

The SYNERGY21 LED Controller DMX 512 4x5A 16bit is a professional-grade DMX512 LED controller designed for precise control of LED lighting systems. With 4 output channels, each capable of delivering up to 5A, and a total output current of 20A, this controller is ideal for dynamic lighting installations in commercial, architectural, and entertainment settings. It supports 16-bit dimming resolution (65536 levels) for smooth, flicker-free dimming.

Advantages

High output capacity with 4 channels at 5A each, 16-bit dimming for superior light quality, robust aluminum housing for durability, and easy DMX addressing via DIP switches.

Suitable for

• Architectural lighting control
• Stage and theater lighting
• LED strip and fixture control
• DMX512 lighting networks

Key specifications

• Control Protocol: DMX512
• Number of Output Channels: 4
• Output Current per Channel: 5A
• Total Output Current: 20A
• Dimming Resolution: 16-bit (65536 levels)
• Input Voltage: DC 12-24V
• Output Voltage: DC 12-24V
• Max Output Power (12V): 240W
• Max Output Power (24V): 480W
• DMX Connection: RJ45 (Input/Output)
• Power & LED Output Connection: Screw Terminals
• DMX Address Setting: DIP Switches
• Operating Temperature: -20°C to +60°C
• Housing Material: Aluminum
• IP Rating: IP20
• Static Power Consumption: <1W

Recommendations

For optimal performance, use with a suitable DC power supply (12-24V) and ensure proper ventilation. The controller is designed for indoor use only.
