SYNERGY21 S217054V2 50m LC/LC OM4 4-kuitainen trunk-kaapeli, LSZH, kelalla

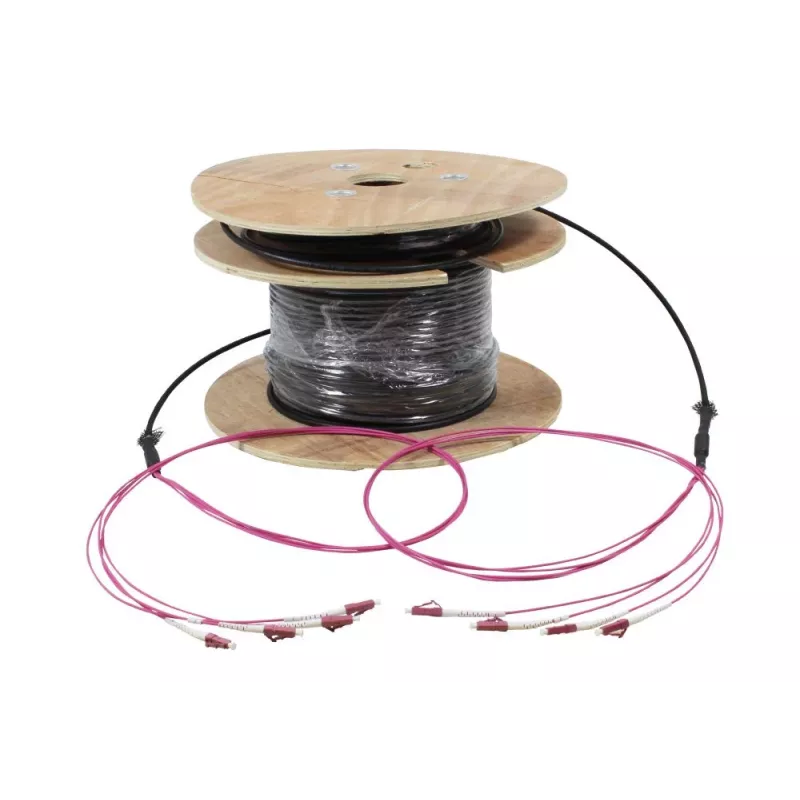

Fiber optic trunk cable with 4 multimode OM4 fibers, 50/125 µm core/cladding, pre-terminated with LC connectors on both ends, 50 m length, supplied on a cable drum. The U-DQ(ZN)BH construction with LSZH jacket is suitable for universal indoor/outdoor use, UV resistant and flame retardant.

Advantages

OM4 fiber supports high bandwidth: 4700 MHz·km at 850 nm and 500 MHz·km at 1300 nm, enabling 10G/40G/100G Ethernet up to 550 m. LSZH jacket emits low smoke and zero halogen, improving safety in populated areas. Pre-terminated LC connectors save installation time and ensure consistent low insertion loss (≤0.3 dB per pair).

Suitable for

• Data center backbone cabling
• Building-to-building links
• High-density fiber patching
• Indoor/outdoor campus networks

Key specifications

• Fiber type: Multimode OM4, 50/125 µm
• Number of fibers: 4
• Connectors: LC to LC
• Length: 50 m
• Jacket: LSZH, UV resistant, flame retardant, halogen-free
• Insertion loss: ≤ 0.3 dB per connector pair
• Return loss: ≥ 30 dB
• Packaging: Cable drum

Recommendations

Verify bend radius and pulling tension during installation. Use dust caps on connectors until mating. Test link with an OLTS to confirm performance.
