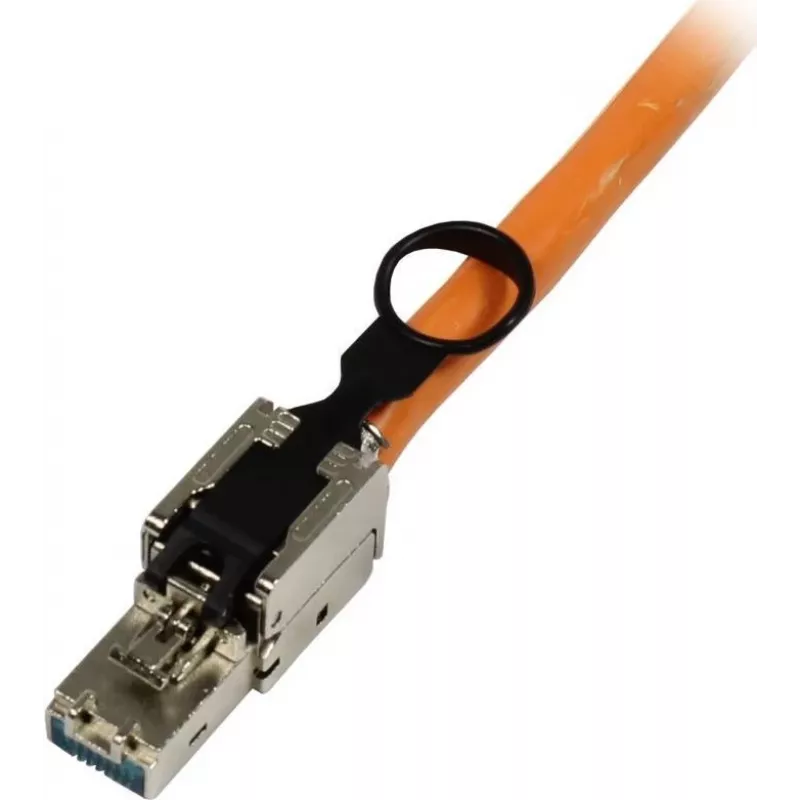

Synergy 21 CAT6A RJ45 kenttäasennettava TP-pistoke, työkaluton, suojattu, Push/Pull-lukitus

The Synergy 21 TP plug (model S216377) is a high-performance, field-terminable RJ45 connector designed for CAT6A shielded cabling systems. It features a tool-less IDC termination method for quick and reliable installation on solid and stranded wires (AWG 22-26, cable diameter 6.0-9.0 mm). The robust zinc die-cast housing ensures durability, while the push/pull release latch facilitates easy insertion and removal in high-density patch panels. Compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2, this plug supports 10 Gigabit Ethernet (10GBASE-T) up to 500 MHz and is PoE/PoE+/4PPoE compatible.

Advantages

Tool-less termination reduces installation time and eliminates the need for special tools. Shielded design minimizes electromagnetic interference (EMI) for reliable data transmission. Gold-plated contacts (50µm) ensure excellent conductivity and corrosion resistance. Reusable design with over 750 insertion cycles for long-term use.

Suitable for

• Structured cabling in data centers and enterprise networks
• Industrial Ethernet applications requiring robust connectivity
• High-speed data transmission up to 10 Gbps
• Power over Ethernet (PoE) devices such as IP cameras, access points, and IoT sensors

Key specifications

• Connector Type: RJ45 (8P8C)
• Performance Category: CAT6A
• Termination Method: Field-terminable, Tool-less IDC
• Shielding: Shielded (FTP/STP)
• Special Feature: Push/Pull Release Latch
• Wiring Standard: T568A / T568B
• Contact Plating: Gold-plated (50µm)
• Number of Contacts: 8
• Cable Compatibility: Solid and Stranded Wires
• Wire Gauge Compatibility: AWG 22-26
• Cable Diameter Compatibility: 6.0 - 9.0 mm
• Housing Material: Zinc Die-Cast
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Frequency Bandwidth: Up to 500 MHz
• PoE Support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Reusability: Yes
• Insertion Cycles: >750
• Operating Temperature: -40°C to +70°C
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Recommendations

For optimal performance, use with CAT6A shielded cables and ensure proper grounding. Suitable for both solid and stranded conductors. The tool-less design allows for quick field termination without crimping tools.
