Synergy 21 Morpheus V3 linssi (10° Narrow Spot) - S21-LED-TOM00995

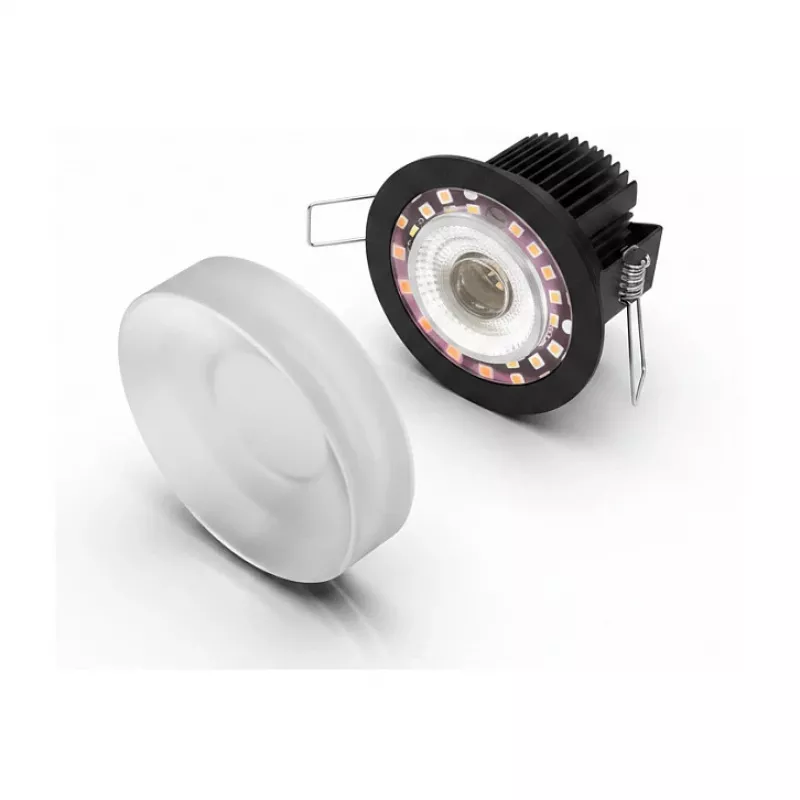

The Synergy 21 Morpheus V3 Lens is a high-quality optical accessory designed for Morpheus V3 LED modules and COB LEDs. This lens delivers a precise 10° narrow spot beam angle, making it ideal for accent and spotlighting applications in retail, architectural, and stage lighting. Crafted from optical-grade PMMA with a light transmission of over 90%, it ensures excellent optical efficiency and minimal color temperature shift.

Advantages

High optical efficiency up to 95% ensures maximum light output. The Total Internal Reflection (TIR) design provides precise beam control with minimal light loss. UV-resistant material guarantees long-lasting performance even in demanding environments. RoHS compliant for environmental safety.

Suitable for

• Retail lighting for highlighting products
• Architectural accent lighting
• Stage and event spotlighting
• Museum and gallery illumination

Key specifications

• Beam Angle: 10° (Narrow Spot)
• Lens Series: Morpheus V3
• Compatibility: TOM Morpheus V3 LED Modules, COB LEDs
• Material: Optical Grade PMMA
• Light Transmission: >90%
• Optical Efficiency: Up to 95%
• Operating Temperature Range: -40°C to +100°C
• Mounting Type: Requires separate holder (e.g., Morpheus V3 holder)
• Optical Design: Total Internal Reflection (TIR)
• Diameter: 21.8 mm
• Height: 13.5 mm
• RoHS Compliance: Yes

Recommendations

For optimal performance, use with the Morpheus V3 holder. Ensure proper thermal management when operating at high temperatures.
