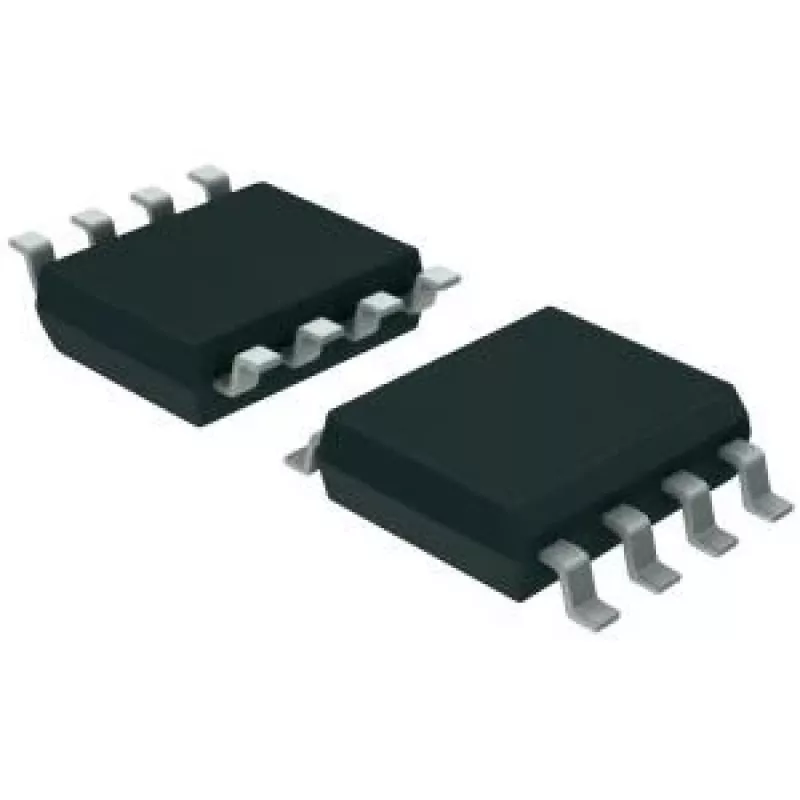

Tarkkuusdifferentiaalivahvistin Texas Instruments INA117KU — instrumentointivahvistin SOIC-8-kotelossa

Texas Instruments INA117KU is a precision operational differential (instrumentation) amplifier in an SOIC-8 package. It is engineered to amplify small differential voltages with high accuracy and low noise, making it suitable for analog front-ends, sensor interface circuits, and laboratory measurement equipment. The device offers stable gain and low offset drift for consistent performance in precision signal-conditioning tasks.

Advantages

The amplifier delivers precise differential amplification with low input offset and minimal noise contribution, enabling accurate measurement of small signals. Its SOIC-8 surface-mount package simplifies PCB integration for compact designs. The device's stable gain characteristics and predictable behavior across operating conditions support repeatable measurements and straightforward circuit design.

Suitable for

• Sensor signal conditioning (strain gauges, thermocouples, bridge sensors)
• Precision data acquisition front-ends and ADC input buffering
• Laboratory instrumentation and portable measurement devices
• Low-noise amplifiers in medical or industrial monitoring systems

Key specifications

• Device type: precision operational differential / instrumentation amplifier
• Package: 8-pin SOIC surface-mount
• Designed for low-noise, low-offset differential signal amplification
• Stable gain suitable for small differential voltages and precision signal conditioning
• Intended for integration into analog front-ends and test equipment

How to use

Integrate the amplifier into the signal path where differential inputs require precise amplification before digitization or further processing. Connect the differential sensor outputs to the amplifier inputs and arrange the required external gain-setting resistors or network per the device application notes. Place power supply decoupling capacitors close to the package and ensure proper PCB layout to minimize noise pickup and common-mode disturbances. Verify gain and offset performance on the bench using known reference inputs prior to final deployment.

Recommendations

For optimal performance, follow recommended PCB layout practices for instrumentation amplifiers: short input traces, ground plane continuity, and local decoupling. Match input impedances where applicable and avoid routing noisy digital lines near the analog inputs. Review the manufacturer's application guidelines for recommended external resistor networks and supply voltage ranges to ensure stable gain and low offset drift in target conditions.
