TECHLY OS2 yksimuotokuitu ST-LC Duplex -liitäntäkaapeli 3 m

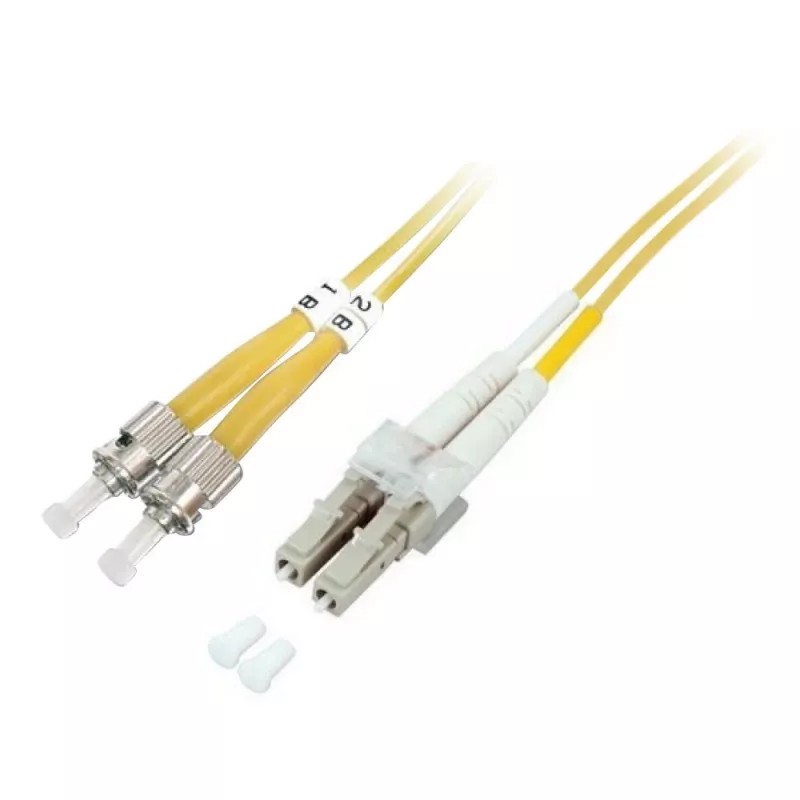

The TECHLY OS2 Single-Mode ST to LC Duplex Patch Cable is a high-performance fiber optic interconnect designed for reliable data transmission in enterprise networks, data centers, and telecommunications environments. Engineered with precision, this patch cord ensures low insertion loss and high return loss, meeting stringent industry standards for single-mode applications.

Advantages

This patch cable offers exceptional signal integrity with minimal attenuation, supporting wavelengths of 1310 nm and 1550 nm. The duplex configuration allows simultaneous bidirectional communication, while the ST and LC connectors provide secure, easy-to-mate connections. The yellow PVC jacket is durable and color-coded for quick identification of single-mode cables.

Suitable for

• Fiber optic patch panels and network equipment
• Data center interconnects
• Telecommunications and CATV systems
• FTTx and LAN applications

Key specifications

• Fiber Type: Single-Mode (OS2)
• Core/Cladding: 9/125 µm
• Connector A: ST (UPC polish)
• Connector B: LC (UPC polish)
• Cable Length: 3 meters
• Jacket: PVC, Yellow
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB
• Operating Temperature: -20°C to +70°C

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate cable management to avoid bending beyond the minimum bend radius. This cable is RoHS and CE compliant.
