Hypertec 257280-HY patch-paneeli 1U

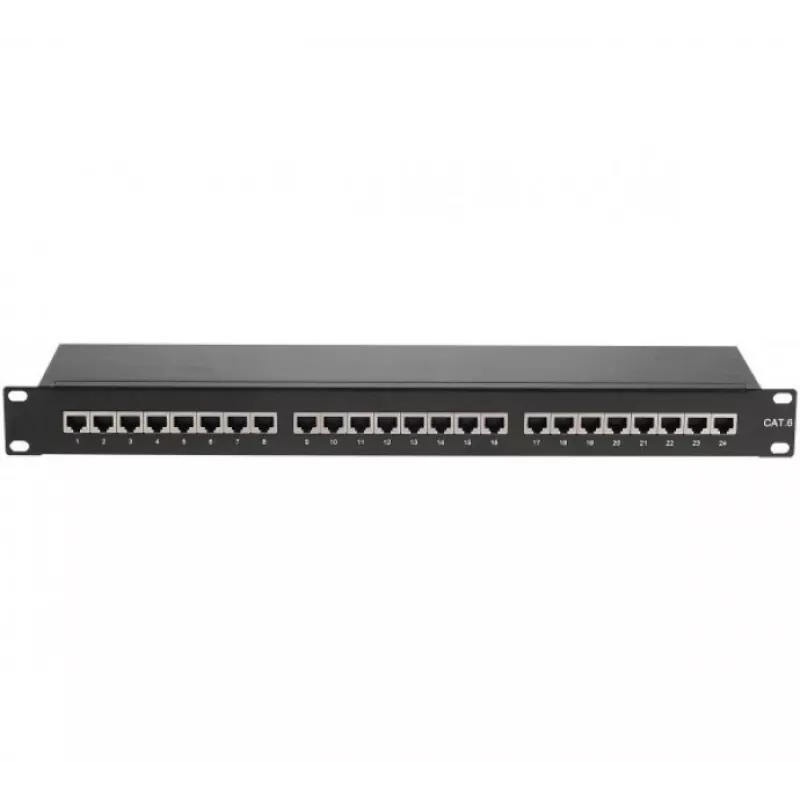

The Tecline 257280 is a 1U rack-mountable patch panel designed for RJ-45 connectors and compatible with Cat6 cable types using S/UTP shielding. Its slim, black metal housing fits standard 19-inch racks and provides a structured, accessible termination point for network cabling in server rooms, data closets, and communications cabinets. The panel is intended to organise multiple Ethernet runs while maintaining signal integrity through proper shielding and connector layout.

Advantages

The patch panel supports Cat6 performance levels and S/UTP shielding to reduce electromagnetic interference in environments with dense cabling. Its 1U form factor conserves rack space, and the front RJ-45 ports allow easy access for patch cords and quick changes to network topology. The black finish and standard mounting dimensions enable consistent integration with other rack equipment, simplifying installation and maintenance.

Suitable for

Key specifications

How to use

Install the Tecline 257280 into a 19-inch rack occupying a single unit of height (1U) using appropriate rack screws. Terminate Cat6 S/UTP cables to the rear IDC or punch-down points according to the wiring diagram and shielding guidelines, ensuring the shield is properly bonded to maintain S/UTP effectiveness. Connect front-facing RJ-45 patch cords between the panel ports and active network equipment such as switches or routers. Label ports as needed to reflect your network topology and simplify future changes.

Recommendations

For best performance, use certified Cat6 S/UTP cabling and maintain correct grounding for the shield. Keep cable bends within manufacturer-recommended radii, separate power and data runs where possible, and perform post-installation verification with network certification tools to confirm continuity, pair mapping, and near-end crosstalk (NEXT) performance.
