Tehokas klapikone ATIKA ASP14TS-2 400V

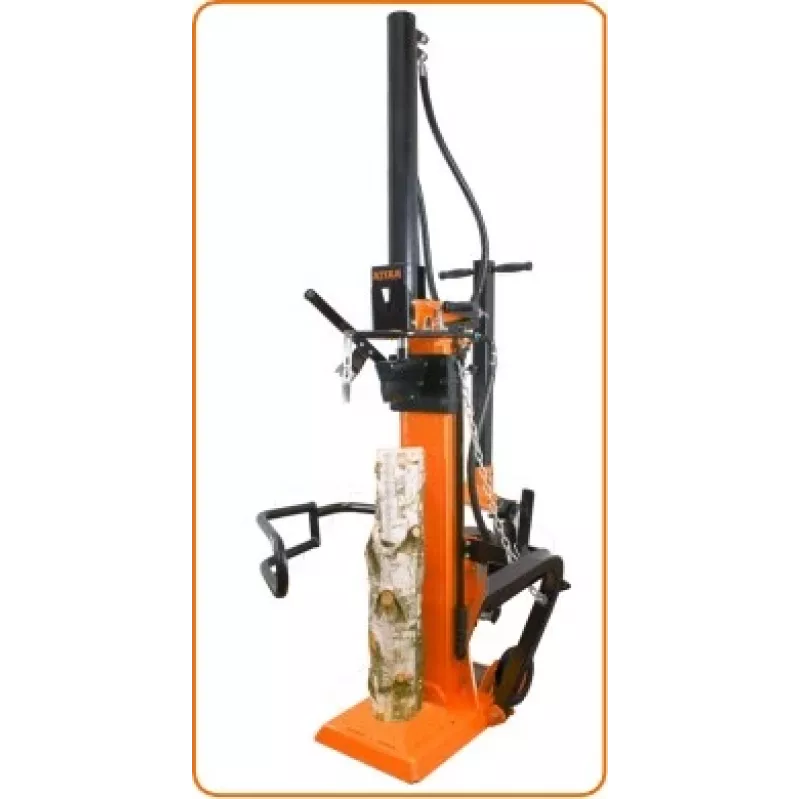

The ATIKA ASP14TS-2 is a powerful vertical log splitter designed for professional and heavy-duty use. With a splitting force of 14 tons and a 4.0 kW motor running on 400V three-phase power, it effortlessly handles large logs up to 1040 mm in length and 400 mm in diameter. The vertical operation and two-hand safety system ensure safe and efficient wood processing.

Advantages

High splitting force of 14 tons for tough logs. Vertical design saves space and allows easy positioning. Integrated wheels for transport. Adjustable splitting table with three positions (590 / 780 / 1040 mm) for versatility. Two-hand safety operation for user protection.

Suitable for

• Professional forestry and firewood production
• Agricultural and estate maintenance
• Heavy-duty home use

Key specifications

• Splitting Force: 14 tons
• Motor Voltage: 400 V ~ 50 Hz
• Motor Power (P1): 4.0 kW
• Max. Log Length: 1040 mm
• Max. Log Diameter: 400 mm
• Hydraulic Oil Capacity: approx. 10.0 liters
• Working Pressure: 200 bar
• Splitting Stroke: approx. 500 mm
• Operation Type: Vertical
• Safety Feature: Two-hand safety operation
• Transport: Integrated wheels
• Sound Power Level LWA: 97 dB(A)
• Protection Class: IP 54
• Splitting Speed (Forward): approx. 5.2 cm/s
• Splitting Speed (Return): approx. 13.0 cm/s
• Adjustable Splitting Table Positions: 3 (590 / 780 / 1040 mm)
• Table Height: approx. 700 mm

Recommendations

For optimal performance, use high-quality hydraulic oil and follow the manufacturer's maintenance schedule. Always operate with both hands on the controls for safety.
