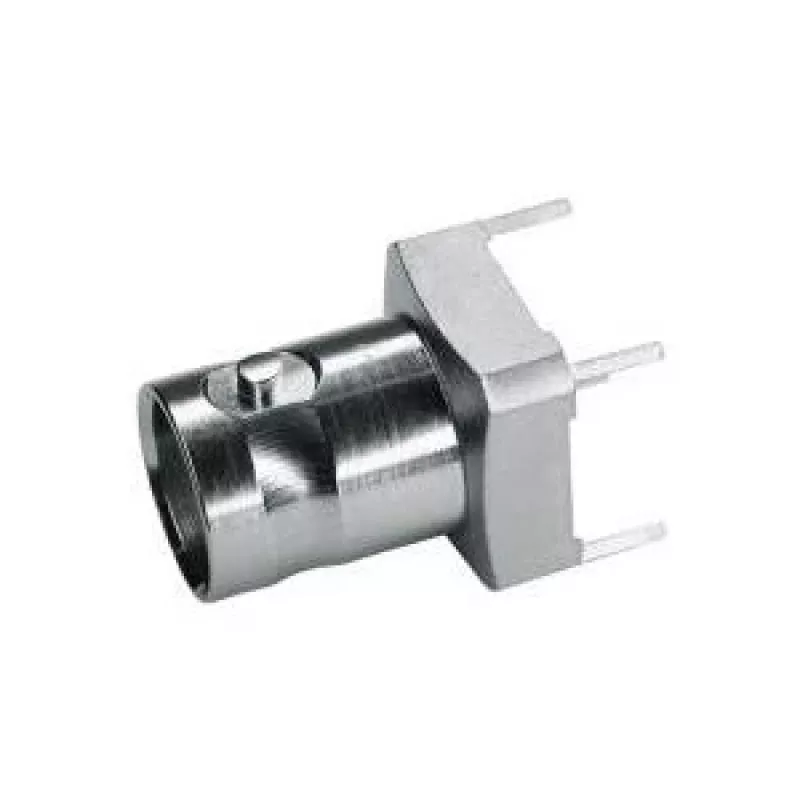

Telegärtner BNC-liitin piirilevyyn läpijuotettava 50 ohm Z06 20 mm nastan pituus (J01001A1944)

RF engineers and PCB designers often struggle to find a BNC connector that combines reliable 50-ohm impedance with a compact, board-mountable form factor. The Telegärtner J01001A1944 BNC jack solves this by offering a through-hole PCB mount with a 20 mm pin length, ensuring secure mechanical anchoring and excellent electrical performance up to 4 GHz. This connector is ideal for instrumentation, broadcast equipment, and telecommunications systems where signal integrity is critical.

Who is it for

This BNC jack is intended for electronics manufacturers, RF technicians, and hobbyists who need to integrate coaxial connections directly onto printed circuit boards. It suits applications such as test and measurement devices, video routers, and RF modules. Its straight orientation and solder termination make it a practical choice for both prototyping and production runs.

Main features

• 50 Ohm impedance with frequency range DC to 4 GHz
• Through-hole PCB mounting with 20 mm solder pins
• Female BNC jack (socket) with straight orientation
• Gold-plated center contact for low contact resistance
• Nickel-plated brass body for durability
• PTFE dielectric for stable performance
• Operating temperature from -55°C to +85°C
• RoHS compliant

Specifications

• Connector type: BNC Jack (female)
• Impedance: 50 Ohm
• Mounting type: PCB through-hole
• Orientation: Straight
• Termination style: Solder
• Pin length: 20 mm
• Frequency range: DC - 4 GHz
• Voltage rating: 500 V peak
• Insulation resistance: ≥ 5000 MΩ
• Contact resistance (center): ≤ 1.5 mΩ
• Contact resistance (outer): ≤ 1.0 mΩ
• Durability: 500 mating cycles
• Operating temperature: -55°C to +85°C
• Body material: Brass, nickel plated
• Contact material: Beryllium copper or brass
• Contact plating: Gold (center contact)
• Dielectric material: PTFE
• RoHS compliant: Yes

Tips

When soldering this connector, ensure the PCB pads are designed for through-hole components with sufficient clearance. Use a soldering iron with a fine tip and avoid excessive heat to prevent damage to the PTFE dielectric. For high-frequency applications, keep the PCB trace impedance matched to 50 ohms to minimize signal reflection.
