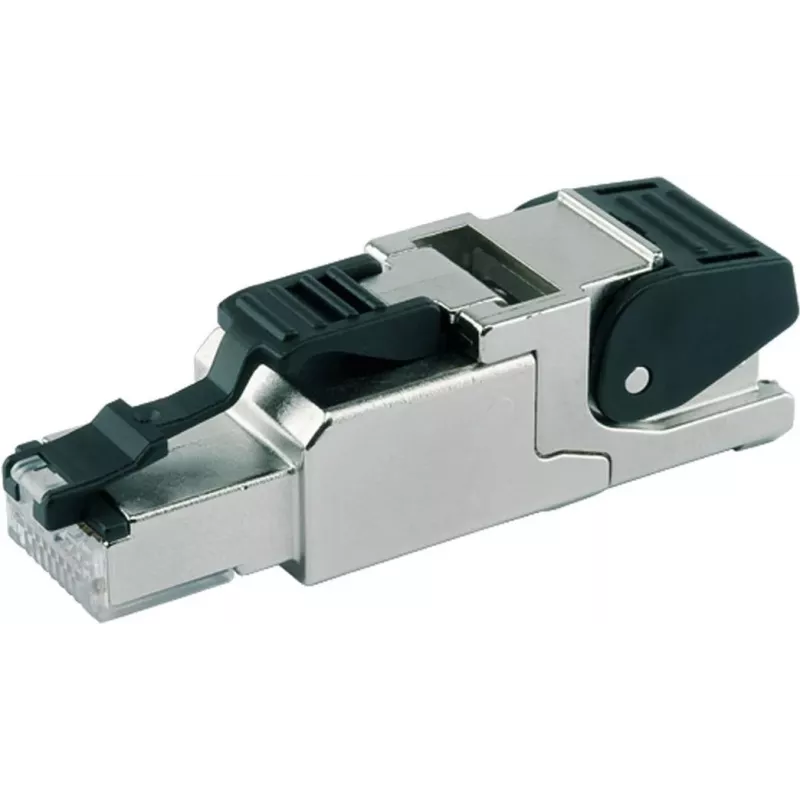

Telegärtner MFP8 RJ45-liitin Cat.6a T568B suojattu pölysuojuksella (J00026A2001)

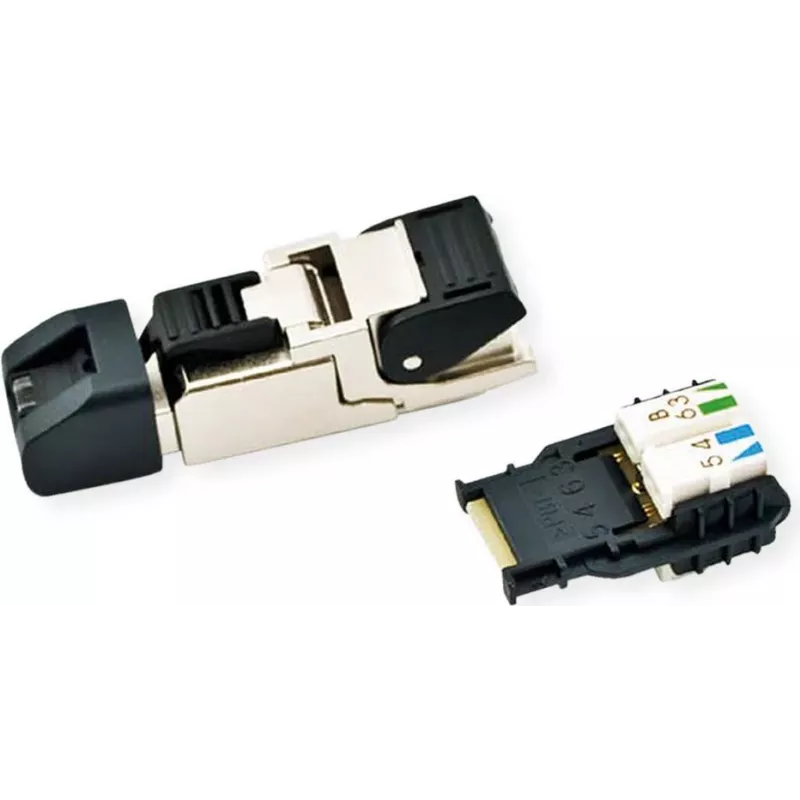

The Telegärtner MFP8 RJ45 connector is a high-performance, field-terminable plug designed for Category 6a (Augmented Category 6) applications. It supports T568B wiring and is suitable for both stranded and solid conductors, making it ideal for data centers, industrial environments, and office cabling. The connector features a pre-assembled dust cap for protection and is reusable up to 10 times.

Advantages

This connector offers tool-free termination, saving installation time and reducing errors. Its robust die-cast zinc housing ensures durability, while gold-plated contacts guarantee reliable signal transmission. The integrated dust cap prevents contamination, and the connector supports Power over Ethernet (PoE, PoE+, 4PPoE) for versatile applications.

Suitable for

• Data center cabling
• Industrial Ethernet networks
• Office and building automation
• 10 Gigabit Ethernet (10GBASE-T) installations

Key specifications

• Connector Type: RJ45 Plug
• Category: Cat.6a
• Wiring Standard: T568B
• Shielding: Shielded (FTP/STP compatible)
• Cable Compatibility (Stranded): AWG 27/7 - AWG 22/7
• Cable Compatibility (Solid): AWG 24/1 - AWG 22/1
• Outer Cable Diameter: 5.0 - 9.0 mm
• Termination Method: IDC, Field-terminable, Tool-free
• Number of Contacts: 8P8C
• Data Rate Support: Up to 10 Gigabit Ethernet
• Power over Ethernet Support: Yes (PoE, PoE+, 4PPoE)
• Contact Plating: Gold-plated
• Housing Material: Die-cast zinc
• Special Features: Pre-assembled dust cap, Reusable up to 10 times
• Operating Temperature: -40°C to +70°C
• Insertion Cycles: ≥ 750
• Standard Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Recommendations

For optimal performance, use with Cat.6a shielded cable and ensure proper grounding. The connector is suitable for both permanent and temporary installations, offering flexibility and reliability.
