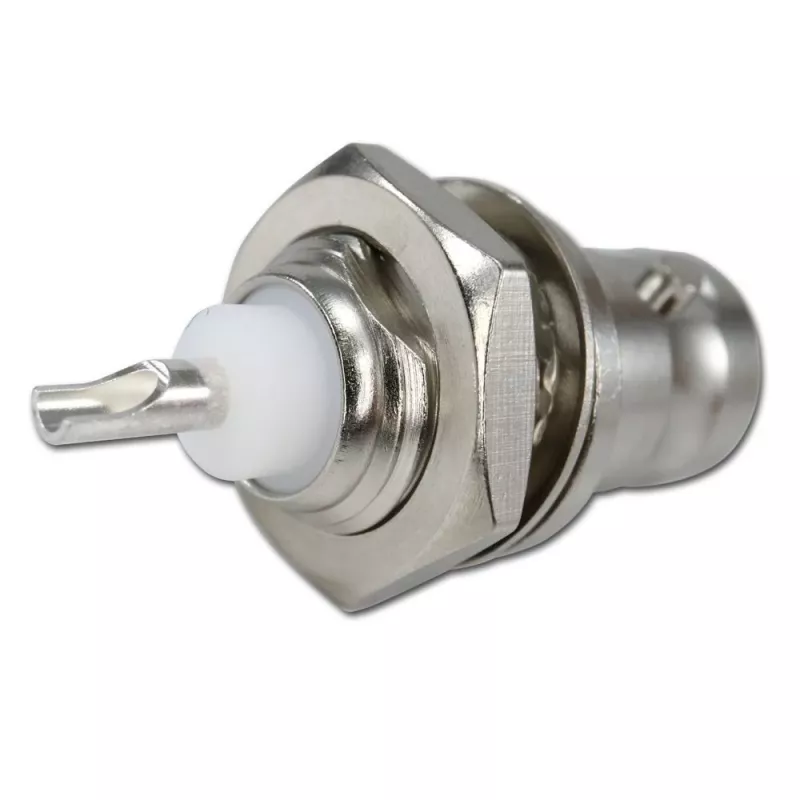

Telegärtner BNC-upotusliitäntä 50 ohm, hopeoitu sisäjohdin, UG-1094/U (J01001B0615Z)

DC to 4 GHz frequency range in a panel-mount BNC jack with silver-plated center contact — the Telegärtner J01001B0615Z delivers low-loss RF connections where it matters.

Overview

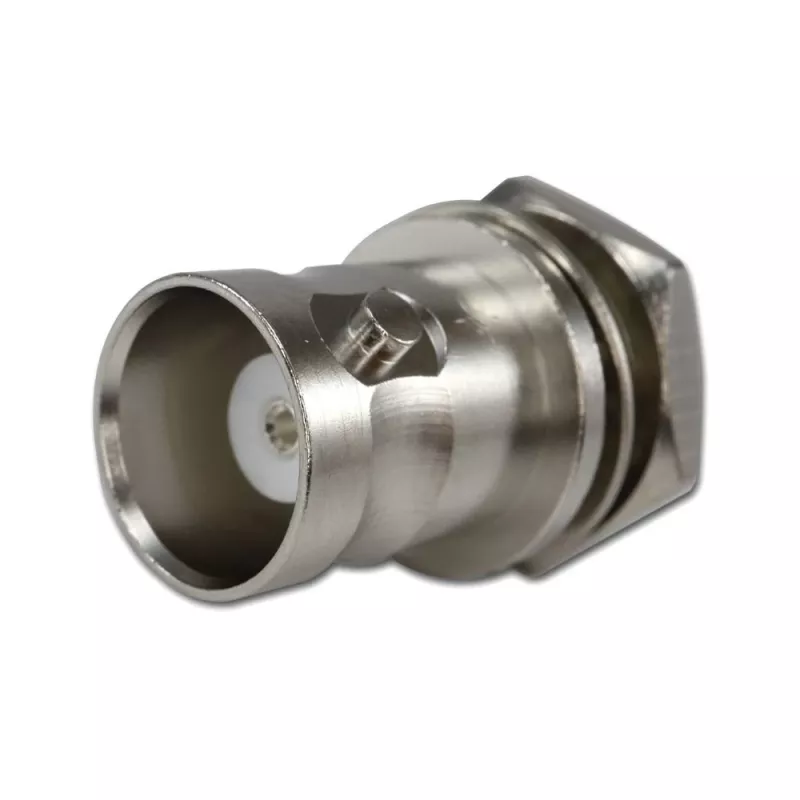

This 50 Ohm BNC bulkhead jack (UG-1094/U) is built for reliable coaxial terminations in professional installations. The body is nickel-plated brass, the inner conductor is silver-plated brass, and the insulator is PTFE, ensuring stable impedance and minimal signal degradation across its rated frequency range.

What stands out

• Wide operating temperature range from -65°C to +165°C
• High insulation resistance ≥ 5000 MΩ
• Low contact resistance: inner ≤ 1.5 mΩ, outer ≤ 1.0 mΩ
• Dielectric withstanding voltage 1500 V RMS
• RoHS compliant

Technical details

• Connector series: BNC
• Connector type: Jack (female)
• Mounting type: Bulkhead / panel mount
• Impedance: 50 Ohm
• Standard designation: UG-1094/U
• Inner conductor material: Brass, silver-plated
• Outer conductor/body material: Brass, nickel-plated
• Insulator material: PTFE
• Termination style (center contact): Solder
• Frequency range: DC to 4 GHz
• Voltage rating: 500 V RMS
• Packaging quantity: 1 piece

Our verdict

A precision bulkhead BNC jack for demanding RF applications, with silver plating and PTFE insulation for long-term performance.
