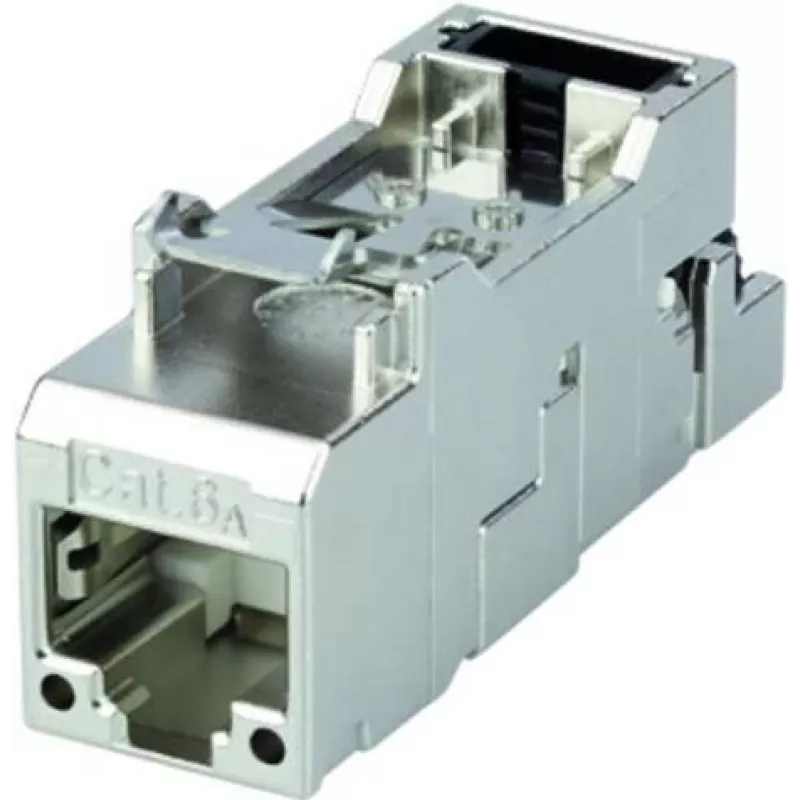

Telegärtner J00029A4001 Cat.6A suojattu RJ45 Keystone Jack -moduuli

In high-density network environments, unreliable terminations lead to downtime and costly troubleshooting. The Telegärtner J00029A4001 solves this by providing a robust, tool-less Cat.6A shielded RJ45 keystone jack module that guarantees 10 Gigabit Ethernet performance up to 500 MHz. Its die-cast zinc housing and gold-plated contacts ensure long-term reliability, while the universal T568A/B wiring simplifies installation.

Who is it for

This module is ideal for network installers, IT professionals, and facility managers who need a dependable, high-performance connection for data centers, office networks, and industrial environments. It is especially suited for applications requiring Power over Ethernet up to PoE++ and compliance with international cabling standards.

Main features

• Cat.6A performance supporting 10GBASE-T up to 500 MHz
• Fully shielded die-cast zinc housing with nickel plating for superior EMI protection
• Tool-less IDC termination for solid and stranded conductors (AWG 22-26)
• Universal T568A/B wiring scheme for flexible installation
• Supports PoE, PoE+, and PoE++ (IEEE 802.3af/at/bt)
• Durable design with over 750 insertion cycles and wide operating temperature range (-40°C to +70°C)

Specifications

• Category: Cat.6A
• Shielding: Shielded (STP)
• Connector type: RJ45 (8P8C) keystone jack
• Termination: Tool-less IDC
• Conductor gauge: Solid AWG 24/1 to 22/1; Stranded AWG 26/7 to 22/7
• Housing material: Die-cast zinc, nickel-plated
• Contact material: Phosphor bronze, gold-plated (0.8 µm)
• Insertion cycles: > 750
• Operating temperature: -40°C to +70°C
• Standards compliance: ISO/IEC 11801, EN 50173-1, TIA/EIA-568-C.2

Tips

For optimal performance, ensure proper cable preparation and maintain pair twists as close to the termination point as possible. Use a cable tester to verify each connection after installation. The module fits standard keystone wall plates, patch panels, and surface mount boxes.
