Telegärtner SMA-kojerasia, laippa, kulta, 50 ohm, 5 kpl:n pakkaus J01151A0621

Precision SMA panel mount jack with gold-plated brass body and flange mount, delivering reliable performance up to 18 GHz in a 50-ohm system. This pack includes 5 connectors.

Overview

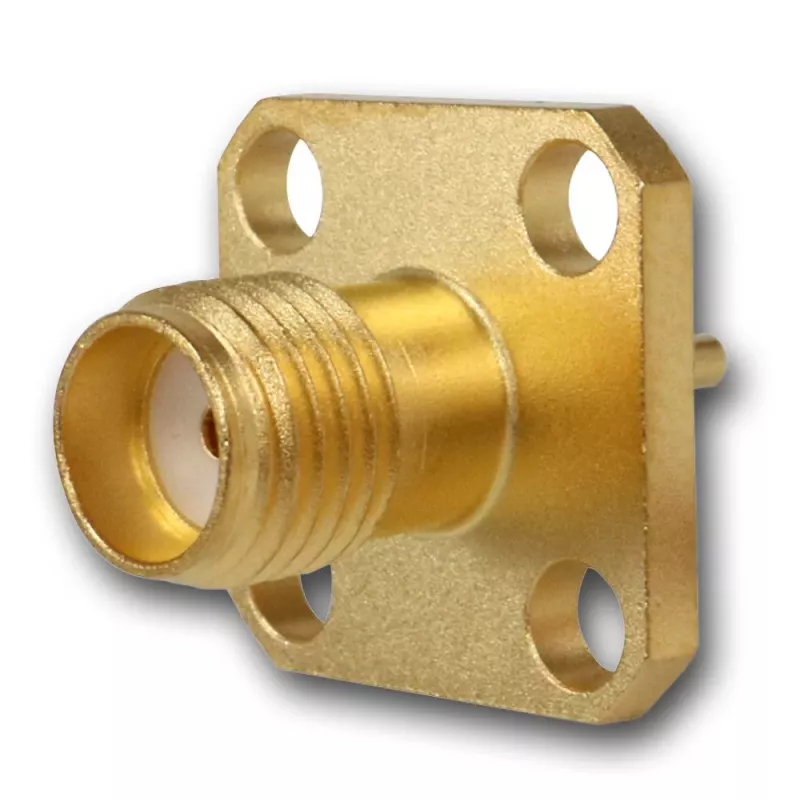

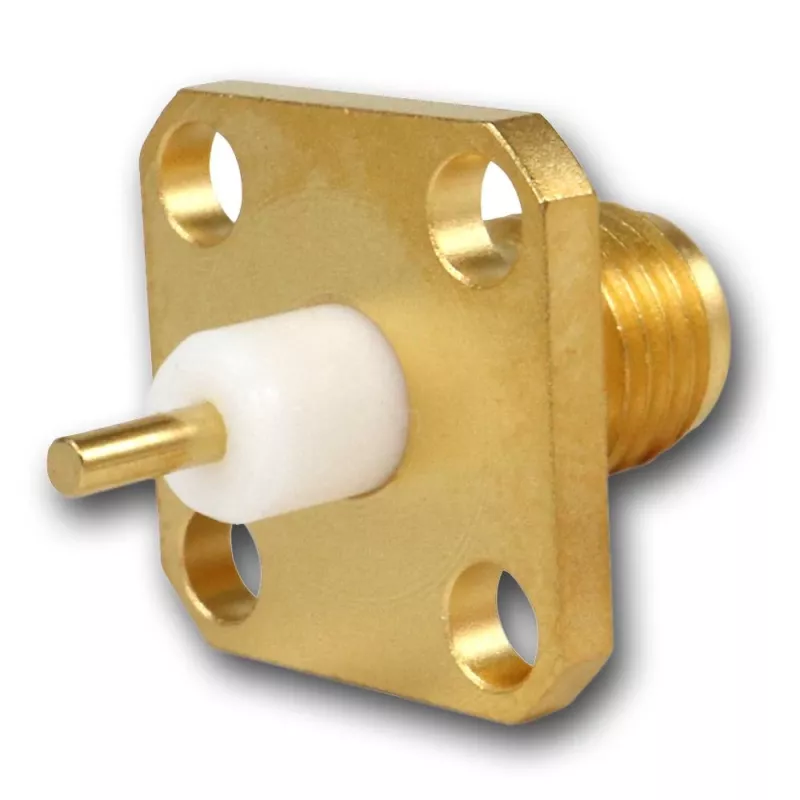

The Telegärtner J01151A0621 is a female SMA connector designed for bulkhead mounting using a 4-hole flange. The body and center contact are gold-plated for excellent conductivity and corrosion resistance. The PTFE insulator ensures low loss and stable impedance across the full frequency range.

What stands out

• Wide frequency range: 0 to 18 GHz with VSWR ≤ 1.25
• Gold-plated brass body and contact for durability
• Flange mount with 4 holes for secure panel installation
• PTFE insulator for high-temperature and low-loss performance
• Operating temperature from -65 °C to +165 °C
• RoHS compliant

Technical details

• Connector type: SMA
• Gender: Jack (female)
• Impedance: 50 Ohm
• Mounting type: 4-hole flange bulkhead
• Body material: Brass
• Contact plating: Gold
• Body plating: Gold
• Insulator material: PTFE
• Dielectric withstanding voltage: 1000 V RMS
• Mating cycles: ≥ 500
• Interface standard: MIL-STD-348A/310

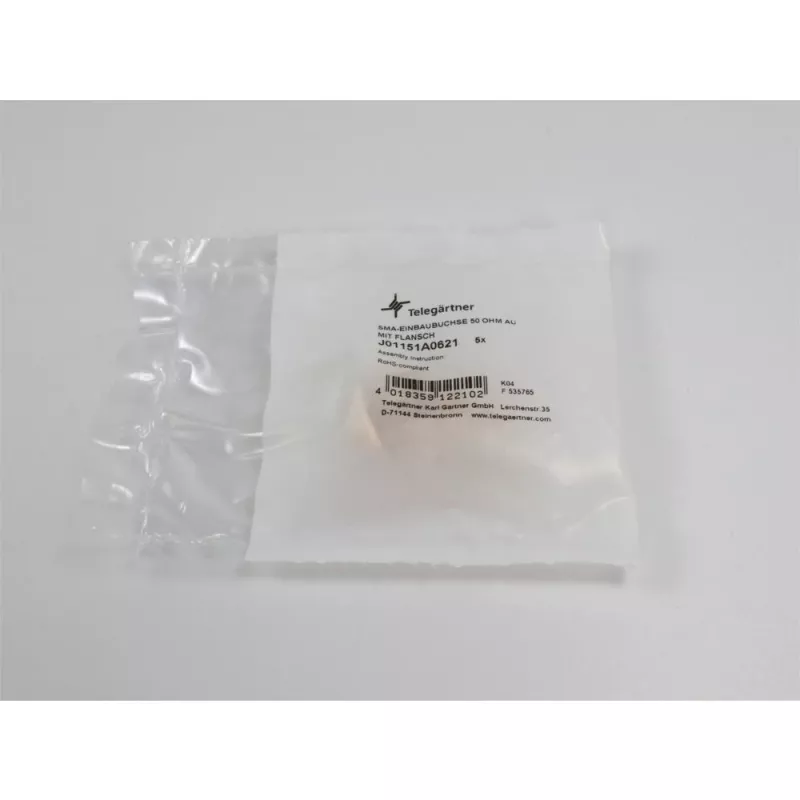

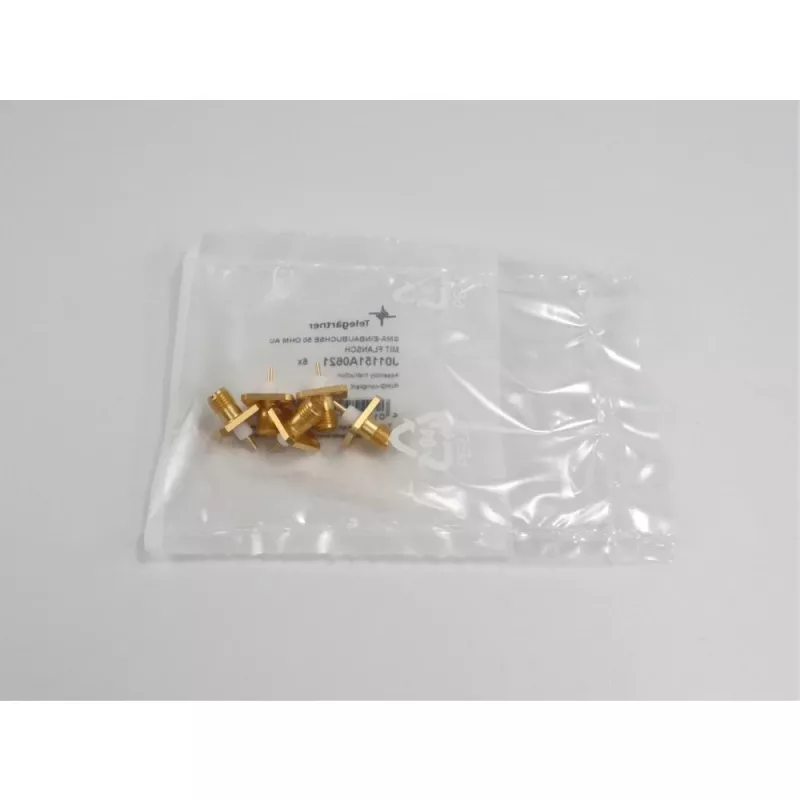

• Pack size: 5 pieces

Our verdict

A high-quality SMA jack for professional RF applications where reliable panel mounting and excellent high-frequency performance are required.
