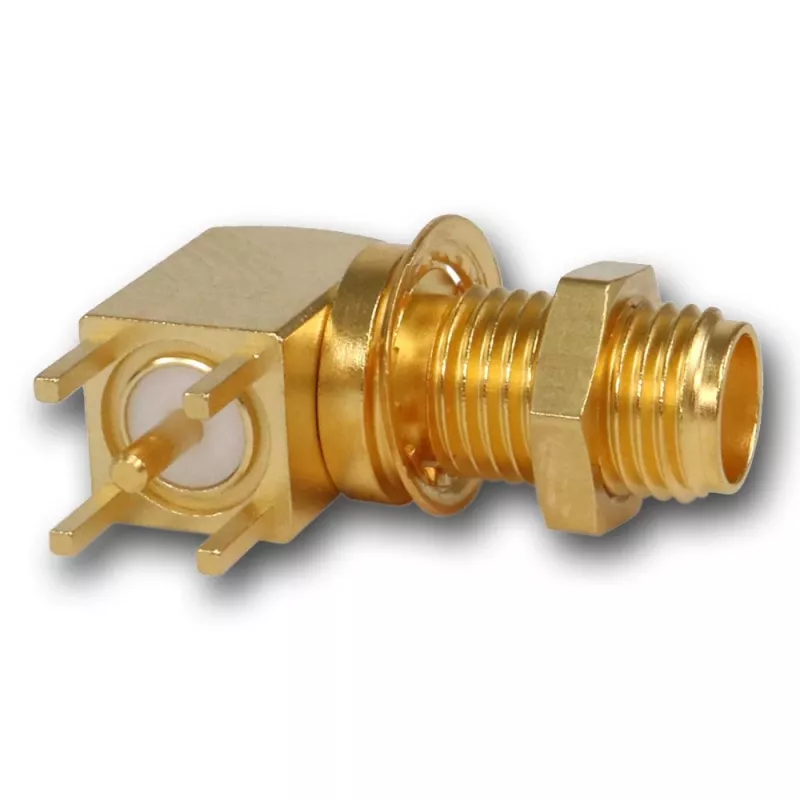

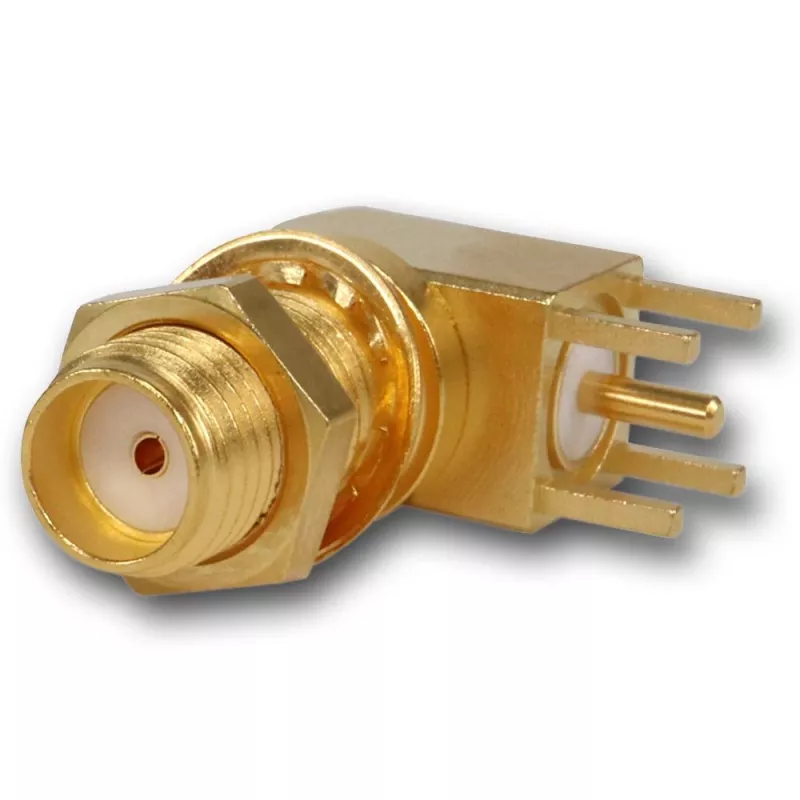

Telegärtner SMA-kulma-kojerasia, 50 ohm, kullattu, Z25/Z55 J01151A0201Z

RF technicians and radio amateurs working on compact enclosures or antenna panels often need a reliable right-angle SMA connection that fits Telegärtner's Z25 and Z55 panel cutouts. This SMA jack offers a solder termination and gold-plated brass body for low-loss signal integrity up to 18 GHz.

Key specifications

• Connector series: SMA
• Connector type: Jack (female)
• Orientation: Right-angle
• Mounting type: Panel mount / bulkhead
• Termination style: Solder
• Impedance: 50 Ohm
• Frequency range: DC - 18 GHz
• VSWR: ≤ 1.25 (DC - 18 GHz)
• Body material: Brass
• Body plating: Gold
• Center contact material: Beryllium copper
• Center contact plating: Gold
• Insulator material: PTFE
• Operating temperature: -65 °C to +165 °C
• Mating cycles: ≥ 500
• Dielectric withstanding voltage: 1000 Veff
• Insulation resistance: ≥ 5 GΩ
• Mounting hole type: D-cutout
• Mounting hole diameter: 6.4 mm
• Panel thickness compatibility: Z25 / Z55

Why choose it

The right-angle design saves space in tight enclosures, while the gold-plated contacts ensure consistent performance and corrosion resistance. With a VSWR of 1.25 or less across the full frequency range, it maintains signal quality in demanding RF applications.

Ideal use cases

• Panel-mounted RF connections in test equipment
• Antenna feedthroughs on custom enclosures
• Compact radio and telemetry systems

Good to know

The connector is designed for Telegärtner's Z25 and Z55 panel cutouts, with a D-cutout mounting hole of 6.4 mm diameter. Solder termination provides a secure, permanent connection.
