Telegärtner SMB liitäntä PCB suorakulma 50 ohmia J01161A0661

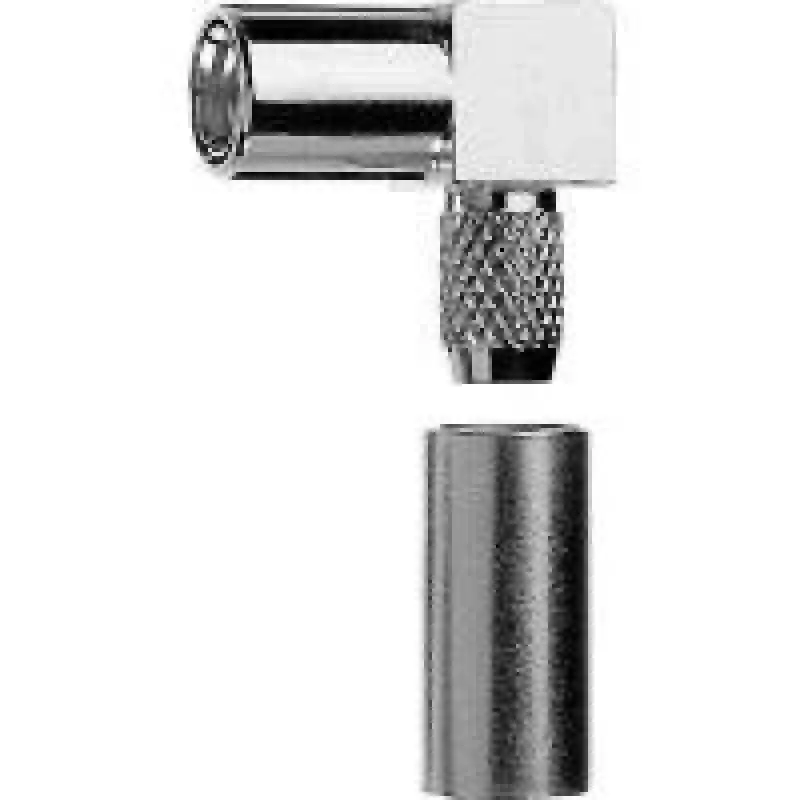

This SMB jack is a right-angle PCB-mount connector with a 50 Ohm impedance, built for reliable RF connections up to 4 GHz. Its gold-plated brass body and center contact ensure low contact resistance and long-term durability.

Advantages

Gold plating provides excellent conductivity and corrosion resistance. PTFE insulation supports a wide operating temperature range from -65 °C to +165 °C. The right-angle design saves space on printed circuit boards.

Suitable for

• RF and microwave circuits
• Telecommunications equipment
• Test and measurement devices
• Industrial electronics

Key specifications

• Connector series: SMB
• Connector type: Jack (female)
• Orientation: Right-angle
• Impedance: 50 Ohm
• Mounting type: PCB mount
• Frequency range: DC to 4 GHz
• Voltage rating: 335 V (eff)
• Dielectric withstanding voltage: 750 V (eff)
• Insulation resistance: ≥ 1000 MΩ
• Contact resistance (center): ≤ 6 mΩ
• Contact resistance (outer): ≤ 2.5 mΩ
• VSWR: ≤ 1.3 at 3 GHz
• Operating temperature: -65 °C to +165 °C
• Mating cycles: ≥ 500
• Body material: Brass, gold-plated
• Center contact: Brass, gold-plated
• Insulator: PTFE

Recommendations

Ideal for compact RF designs requiring a reliable, high-frequency board-level connection.
