Teline Axis 01445-001

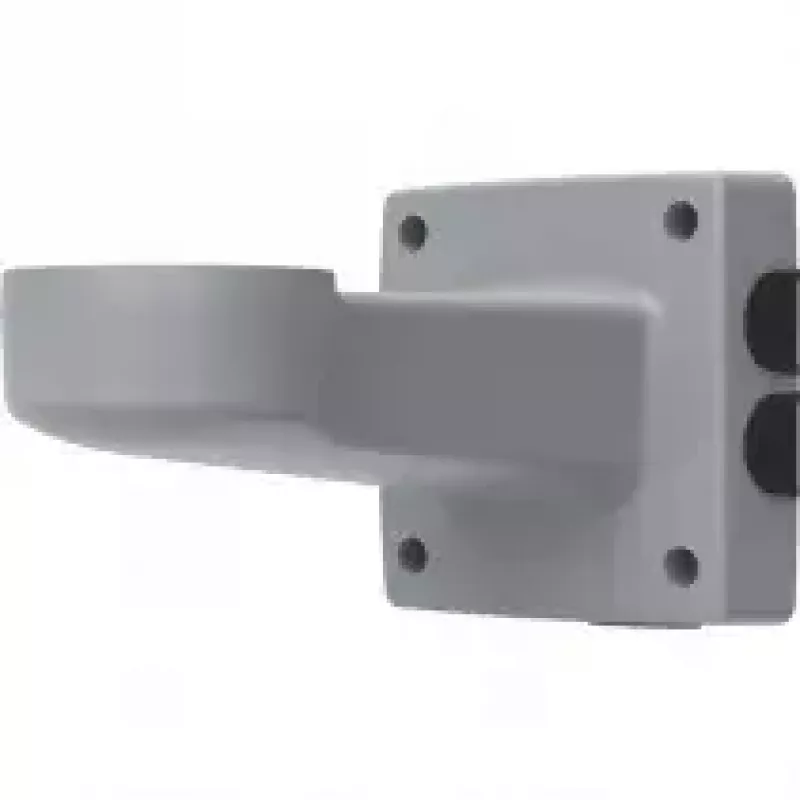

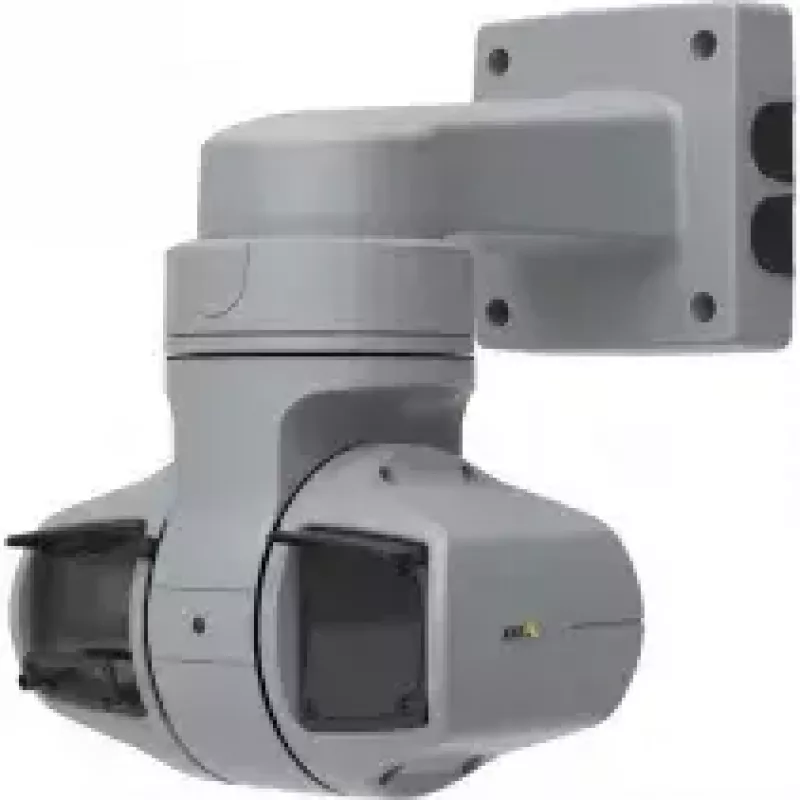

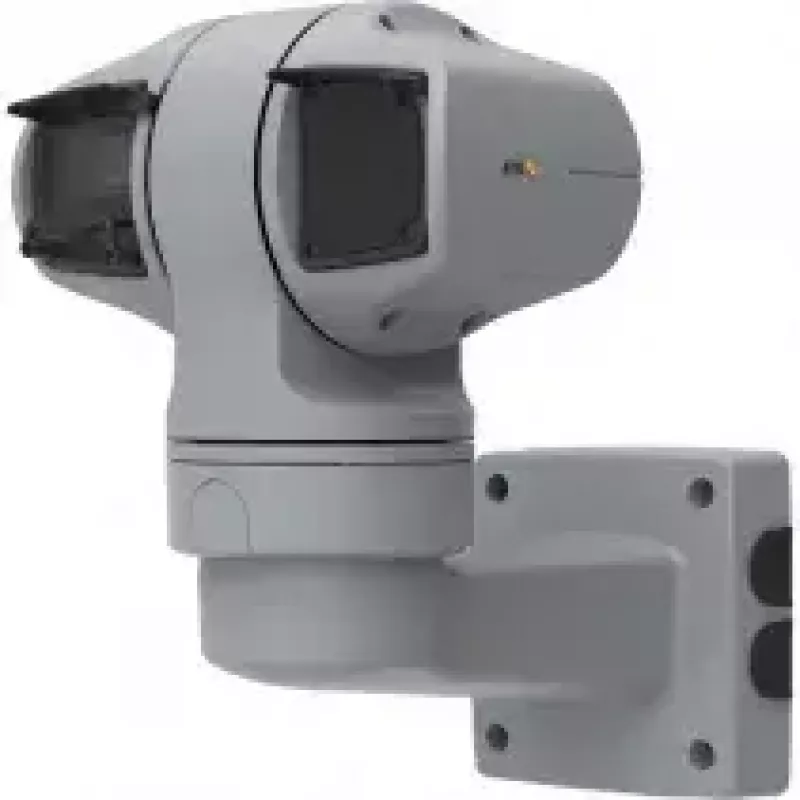

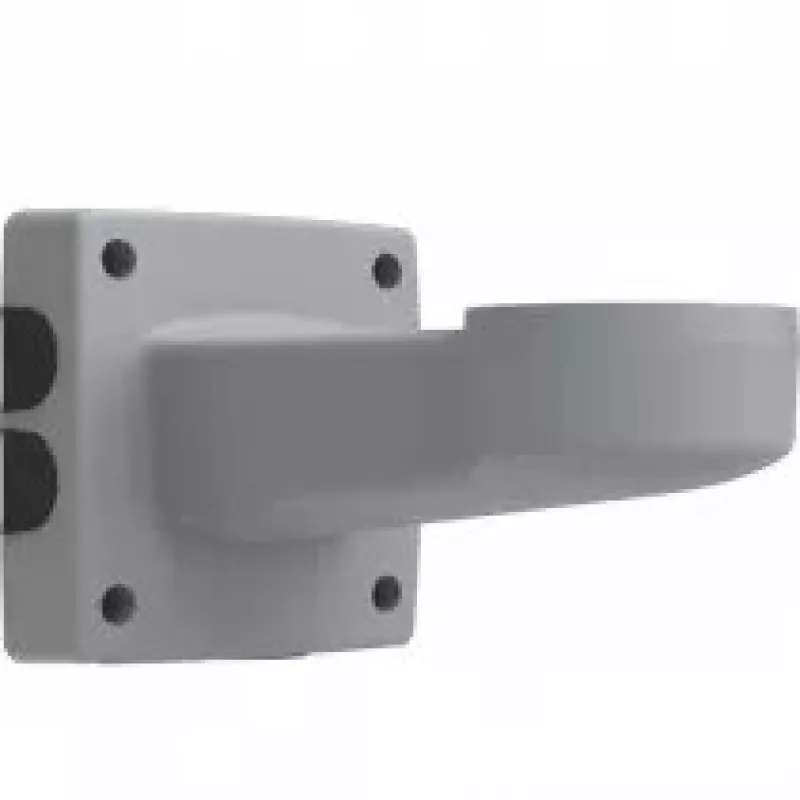

AXIS T94J01A Wall mount grey is an aluminium wall mount designed for AXIS Q6215-LE and other compatible AXIS Q62 Series cameras. The mount is robust and impact-resistant, finished in Urban Grey, and provides multiple cable entry options to simplify installation. It supports routing cables through the back or via conduit connections from each side or from the bottom, and is suitable for both indoor and outdoor use.

Advantages

The mount is made of durable aluminium for long-term outdoor performance and impact resistance. It offers six cable entries and compatibility with Axis ACI 3/4” (M25) conduit adapters for flexible cable management. Designed specifically for AXIS Q6215-LE and compatible with the AXIS Q62 Series, it ensures a secure and stable installation.

Suitable for

• Mounting AXIS Q6215-LE cameras
• Installation of AXIS Q62 Series cameras
• Indoor and outdoor surveillance applications
• Setups requiring conduit cable routing (3/4” / M25)

Key specifications

• Material: Aluminium
• Color: Urban Grey
• Compatible cameras: AXIS Q6215-LE, AXIS Q62 Series
• Cable entries: Six (supports 3/4” / M25 conduit)
• Conduit compatibility: Axis ACI 3/4” adapters
• Usage: Indoor and outdoor

How to use

Attach the AXIS T94J01A wall mount to a suitable wall surface using appropriate fasteners for the substrate. Mount the camera to the bracket following the camera’s installation instructions. Route cables through the back of the mount or connect conduit adapters to use side or bottom entries. Ensure all cable connections are secure and sealed for outdoor installations.

Recommendations

Use corrosion-resistant fasteners appropriate for the mounting surface and seal conduit connections when installed outdoors to maintain weather resistance. Verify compatibility with the specific camera model before installation.
