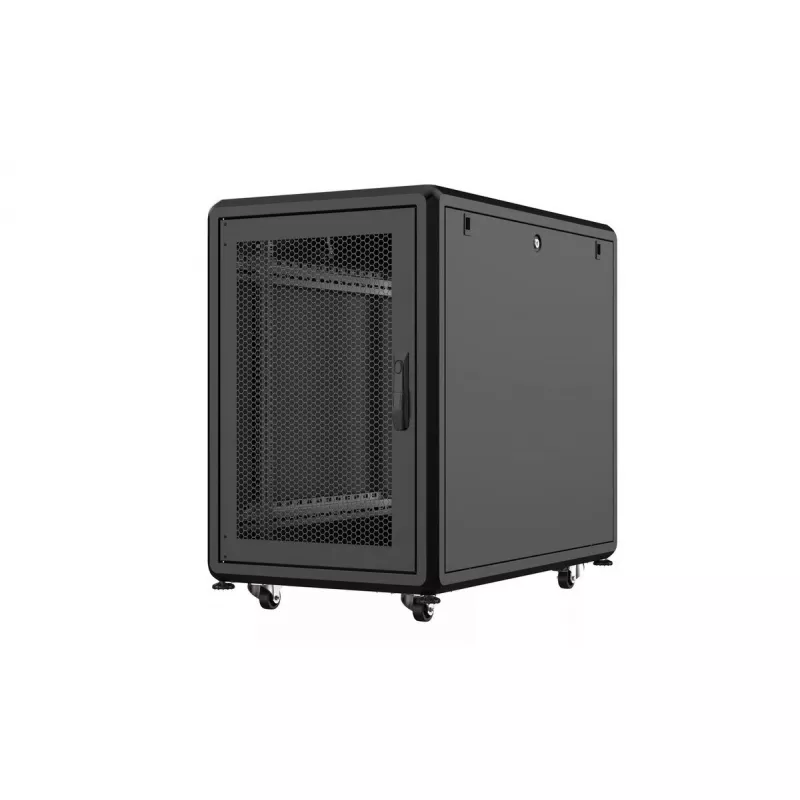

Telinekaappi Lanview RSL16U61BL 16U musta 600 kg IP20

The Lanview RSL16U61BL 16U Black rack cabinet is a freestanding telecommunication cabinet designed for indoor server and network equipment installations. With a 16U usable rack capacity and an IP20 protection rating, this cabinet supports organized cable management and equipment security in offices, server rooms and technical spaces. Its steel construction and removable doors and panels allow straightforward assembly, access and maintenance while the front tempered smoked glass door preserves visibility of installed equipment.

Advantages

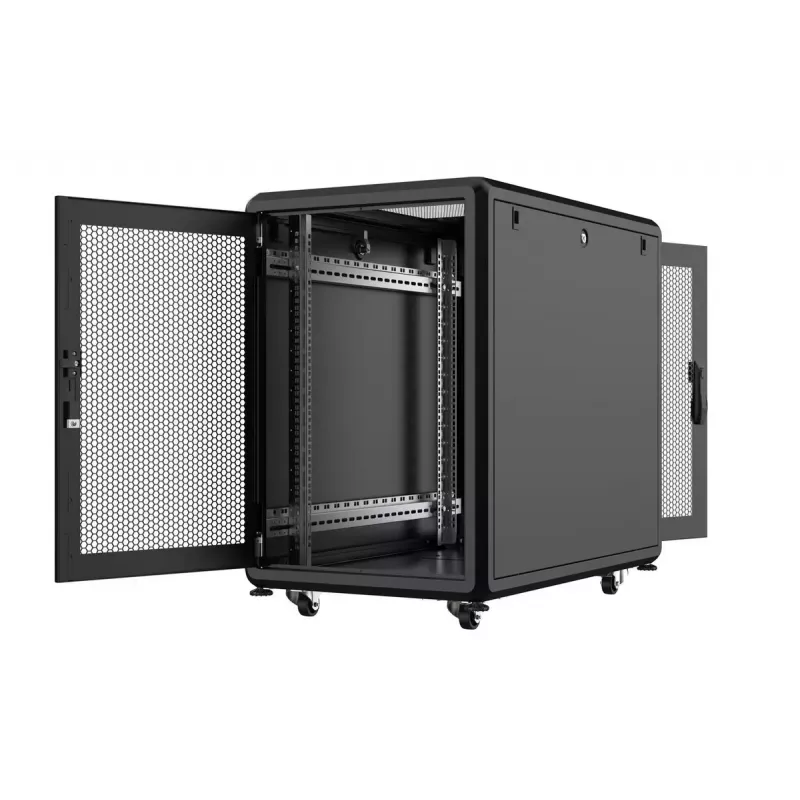

This rack cabinet combines compact footprint with robust load-bearing capability, supporting up to 600 kg of installed equipment while occupying a 600 x 1000 x 897 mm envelope. The design includes a spring-loaded, reversible front door that can be removed without tools, a solid removable rear door with barrel lock, and easily detachable side panels for quick access. Integrated cable entry points at top and bottom (3U high brush entries), rubber-edged sliding cable entry in the base, and structural provision for vertical cable managers simplify cable routing and protect cables from abrasion and dust. The 10 mm raised roof enables passive ventilation and adds resistance against water and dust ingress.

Suitable for

• Small server rooms and network closets
• Office network and telecom equipment installations
• Patch panels, switches and 19" rack-mounted gear
• Environments requiring organized cable management and secure access

Key specifications

• Rack capacity: 16U
• Protection rating: IP20 (indoor use)
• Maximum static load: 600 kg
• Product weight: 28.01 kg
• External dimensions (W x D x H): 600 x 1000 x 897 mm
• 19" equipment compatibility
• Colour: Black
• Front door: full-size tempered smoked glass with handle lock
• Rear door: solid removable metal door with barrel lock
• Cable management: top and bottom 3U brush entries, rubber-edged sliding base entry, support for vertical cable manager

How to use

Place the cabinet on a level indoor surface and secure it according to local installation requirements. Assemble panels and doors using basic hand tools following the included assembly instructions; the front door hinge is spring-loaded and reversible to set the preferred opening direction. Mount 19" equipment into the 16U rack rails, distribute the load to maintain cabinet stability, and route cables through the top or bottom brush entries or the rubber-edged sliding base entry. Use the provided side brackets and tie-up points to secure cable bundles and maintain clearance for ventilation.

Recommendations

For safe operation, ensure total installed equipment weight does not exceed 600 kg and keep the cabinet indoors in environments compliant with IP20. Maintain unobstructed airflow around the cabinet, use the integrated cable management features to prevent strain on connectors, and lock doors and panels when unattended to protect installed equipment.
