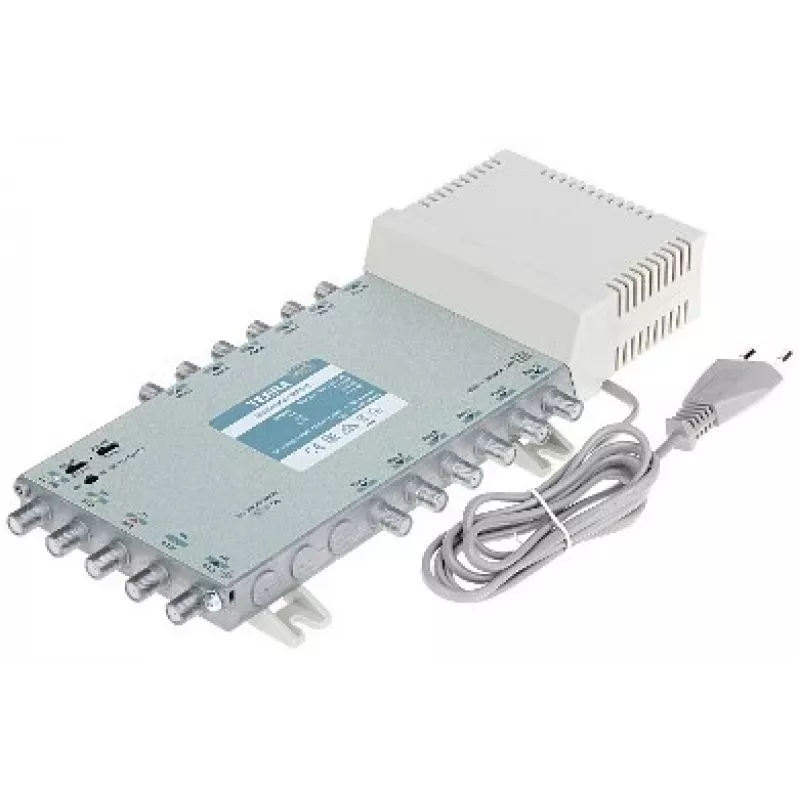

TERRA MR-512 multiswitch 5 tuloa 12 lähtöä

The TERRA MR-512 Multiswitch is a high-performance switching solution designed for satellite and terrestrial signal distribution. With 5 inputs and 12 outputs, it enables efficient routing of signals to multiple subscribers in residential or commercial installations.

Advantages

Supports up to 4 satellite inputs (Horizontal High, Horizontal Low, Vertical High, Vertical Low) and 1 terrestrial input, allowing flexible integration of multiple signal sources. The internal power supply ensures reliable operation, while DiSEqC 1.0 protocol compatibility provides seamless switching control.

Suitable for

• Satellite TV distribution systems
• Multi-dwelling units (MDUs)
• Small to medium-scale commercial installations

Key specifications

• Inputs: 5 (4 satellite + 1 terrestrial)
• Outputs: 12 subscriber outputs
• Satellite frequency range: 950-2150 MHz
• Terrestrial frequency range: 47-862 MHz
• Connector type: F-type
• Power supply: Internal AC 180-250V
• Power consumption: 15W max
• Operating temperature: -20 to +50 °C

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. Suitable for indoor installation only.
