TP-Link LiteWave LS109P verkkokytkin hallitsematon Fast Ethernet (10/100) Power over Ethernet (PoE) musta

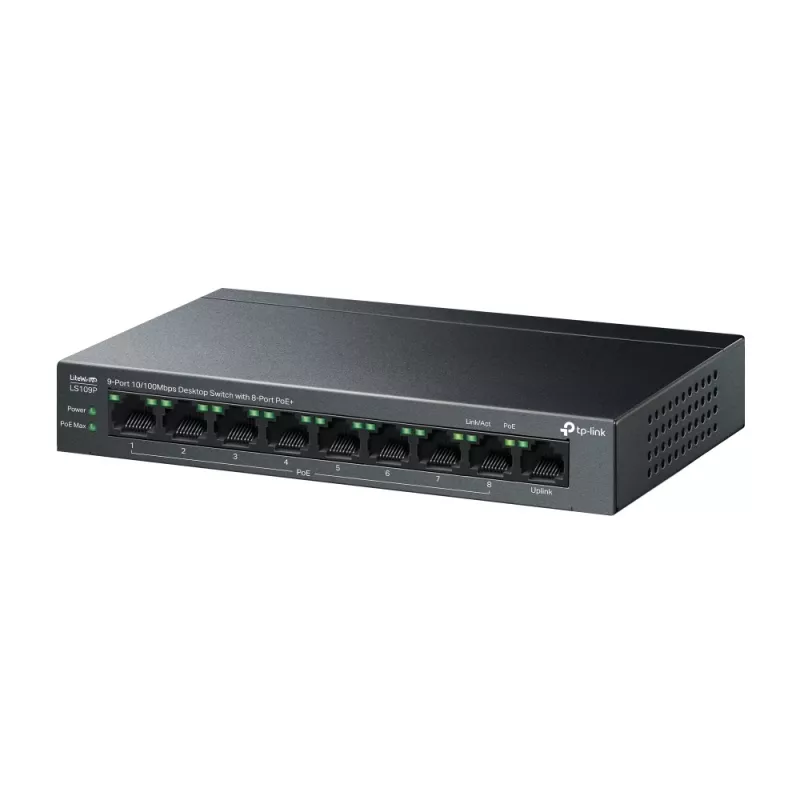

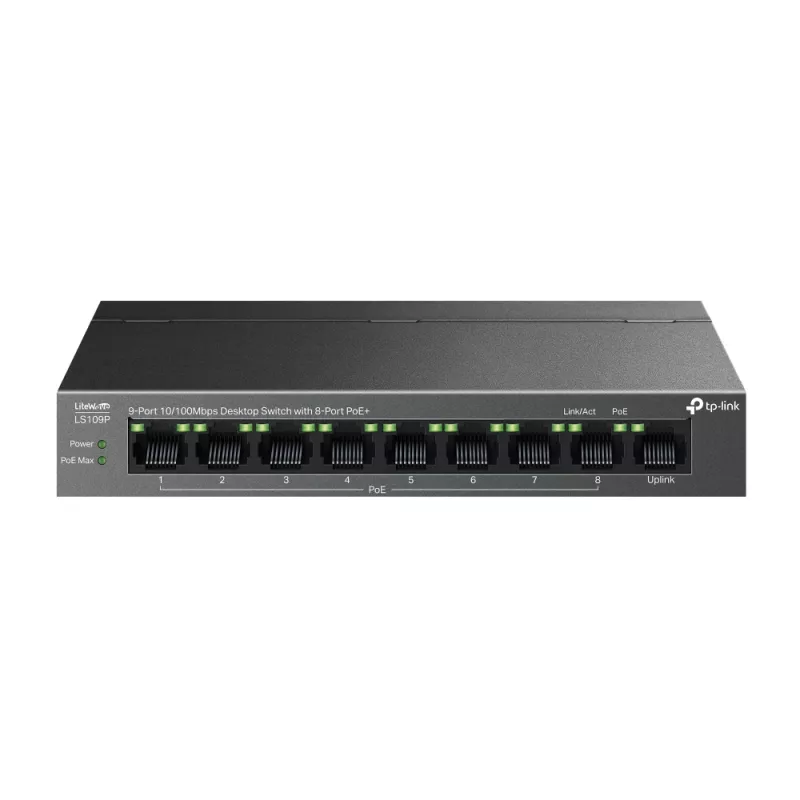

9‑port desktop switch with 10/100 Mbps speeds and 8 PoE+ ports delivering up to 63 W of total PoE power. The switch supports IEEE 802.3af/at and provides up to 30 W per PoE port, enabling power and data over a single Ethernet cable for devices such as IP cameras, access points and VoIP phones. The metal housing supports desktop or wall mounting and the fanless design ensures quiet operation for home or office use.

Advantages

This PoE+ switch offers plug-and-play connectivity without configuration, automatic PoE recovery to reboot unresponsive powered devices, and an isolation mode to separate client traffic with one click to prevent snooping, tampering and broadcast storms. The device also includes an extended PoE transmission mode to reach up to 250 m, making it suitable for wide-area camera deployments.

Key specifications

• Ports: 9 total (8 PoE+ ports + 1 uplink)
• Speed: 10/100 Mbps
• PoE standard: IEEE 802.3af/at (PoE+)
• Total PoE power: 63 W (61 W available for PoE+ ports as noted)
• Max per PoE port: up to 30 W
• Extended PoE distance: up to 250 m in extension mode
• Operation: fanless, quiet design
• Mounting: desktop or wall-mountable metal enclosure

How to use

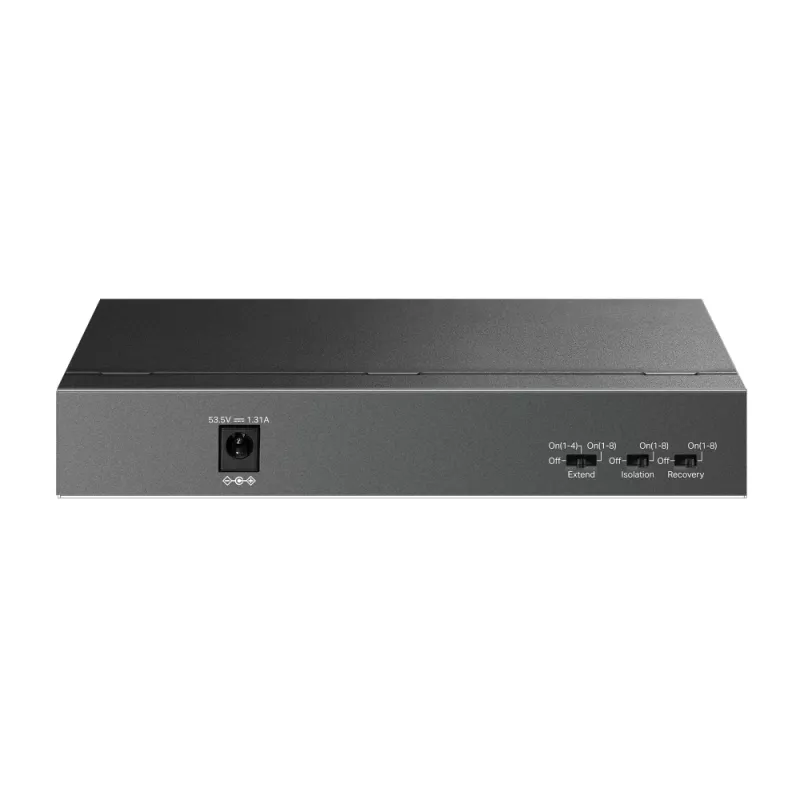

Place the switch on a desktop or mount it to a wall using the provided fittings. Connect powered devices to the PoE+ ports and uplink to your network via the remaining port. The switch operates as plug-and-play; no additional configuration is required for basic connectivity. To extend PoE reach, enable the extension mode according to the product manual. If a powered device becomes unresponsive, the automatic PoE recovery feature will detect and reboot it.

Recommendations

For reliable operation, ensure total connected PoE power consumption does not exceed the switch’s 63 W budget and verify each device’s PoE class to confirm compatibility. Use shielded or quality-rated Ethernet cabling for longer runs and follow the manual when enabling extension mode for distances up to 250 m.
