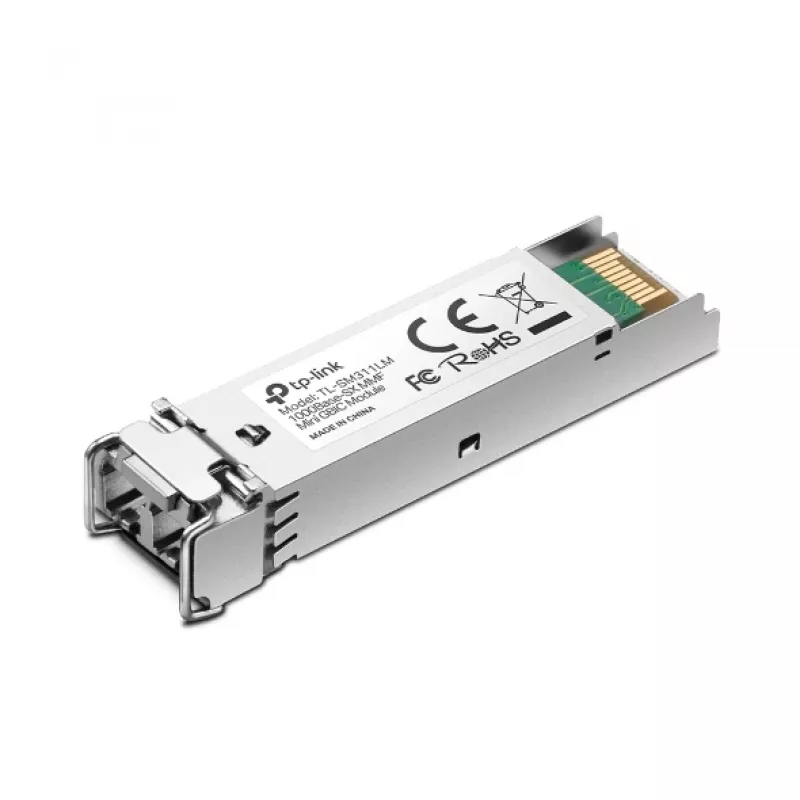

TP-Link Omada SFP 1000BASE-SX LC MiniGBIC monimuotolähetin-vastaanotin

Deliver Gigabit Ethernet over multi-mode fiber at distances up to 550 metres with the TP-Link Omada SFP 1000BASE-SX LC MiniGBIC transceiver. Operating at an 850 nm wavelength, this hot-swappable module supports Digital Diagnostic Monitoring (DDM) for real-time link health visibility, making it a dependable choice for enterprise access and aggregation layers.

Overview

Engineered for TP-Link SFP-enabled switches, media converters, and routers, this MiniGBIC module adheres to the IEEE 802.3z 1000BASE-SX standard. It features a duplex LC connector and supports both 50/125 µm and 62.5/125 µm multi-mode fiber, with maximum distances of 550 m and 275 m respectively. The module operates on a 3.3V supply and consumes less than 1W, ensuring energy-efficient performance.

What stands out

• Hot-swappable SFP form factor for seamless installation and replacement without network downtime.
• Digital Diagnostic Monitoring (DDM) support enables proactive monitoring of temperature, voltage, and optical power.
• Broad compatibility with TP-Link Omada and other SFP-enabled devices simplifies network upgrades.
• Compliant with FCC, CE, and RoHS certifications for reliable and environmentally responsible operation.

Technical details

• Data rate: 1.25 Gbps (Gigabit Ethernet)
• Wavelength: 850 nm
• Connector: LC Duplex
• Fiber type: Multi-mode (MMF)
• Max distance: 550 m (50/125 µm), 275 m (62.5/125 µm)
• Power supply: 3.3V
• Power consumption: < 1W
• Operating temperature: 0°C to 70°C
• Storage temperature: -40°C to 85°C
• Certifications: FCC, CE, RoHS

Our verdict

A cost-effective and reliable multi-mode SFP module that delivers consistent Gigabit performance with advanced monitoring capabilities, ideal for TP-Link network environments.
