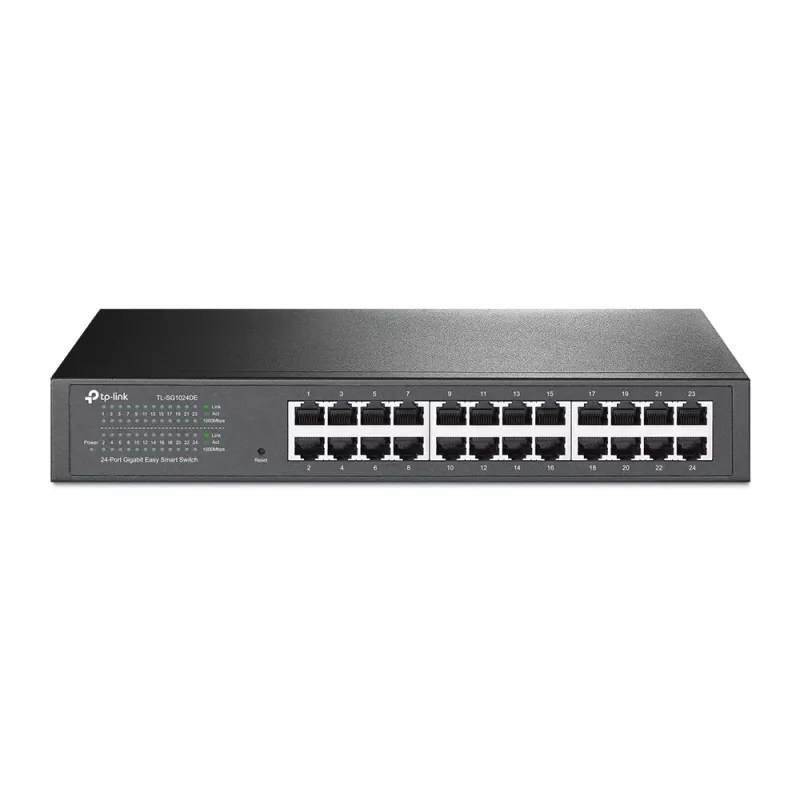

TP-Link TL-SG1024DE 24-porttinen Gigabit Easy Smart -kytkin

The TP-Link TL-SG1024DE is a 24-port Gigabit Easy Smart Switch designed for small and medium businesses seeking a cost-effective, high-performance networking solution. With 24 RJ45 ports supporting 10/100/1000 Mbps speeds, a switching capacity of 48 Gbps, and a packet forwarding rate of 35.7 Mpps, this switch delivers reliable data transfer for bandwidth-intensive applications. Its fanless design ensures silent operation, making it ideal for noise-sensitive environments like open offices or classrooms.

Advantages

This switch offers advanced management features through an intuitive web-based GUI or utility software, including VLAN support (Port-based, Tag-based, MTU VLAN), QoS (Port-based, 802.1p, DSCP), and Link Aggregation (up to 6 groups, 4 ports per group). IGMP Snooping (V1/V2/V3) optimizes multicast traffic, while jumbo frame support up to 10 KB enhances data throughput. The rackmountable 1U metal casing provides durability and easy integration into existing network racks.

Suitable for

• Small and medium businesses requiring a managed switch without complex configuration
• Office networks needing VLAN segmentation and traffic prioritization
• Surveillance systems or IP camera deployments
• Education and hospitality environments where silent operation is critical

Key specifications

• 24 Gigabit Ethernet RJ45 ports
• Switching capacity: 48 Gbps
• Packet forwarding rate: 35.7 Mpps
• MAC address table: 8K entries
• Jumbo frame support: 10 KB
• Management: Web-based GUI, Utility (Easy Smart)
• VLAN: Port-based, Tag-based, MTU VLAN
• QoS: Port-based, 802.1p, DSCP
• Link Aggregation: Up to 6 groups, 4 ports per group
• IGMP Snooping: V1/V2/V3
• Fanless design for silent operation
• Internal power supply: 100-240V AC, 50/60Hz
• Max power consumption: 14.8 W
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Rackmountable 1U form factor

Recommendations

For optimal performance, pair the TL-SG1024DE with TP-Link's line of Gigabit routers and access points. Ensure proper ventilation in the rack to maintain operating temperature. This switch is an excellent choice for expanding network capacity with basic management capabilities.
