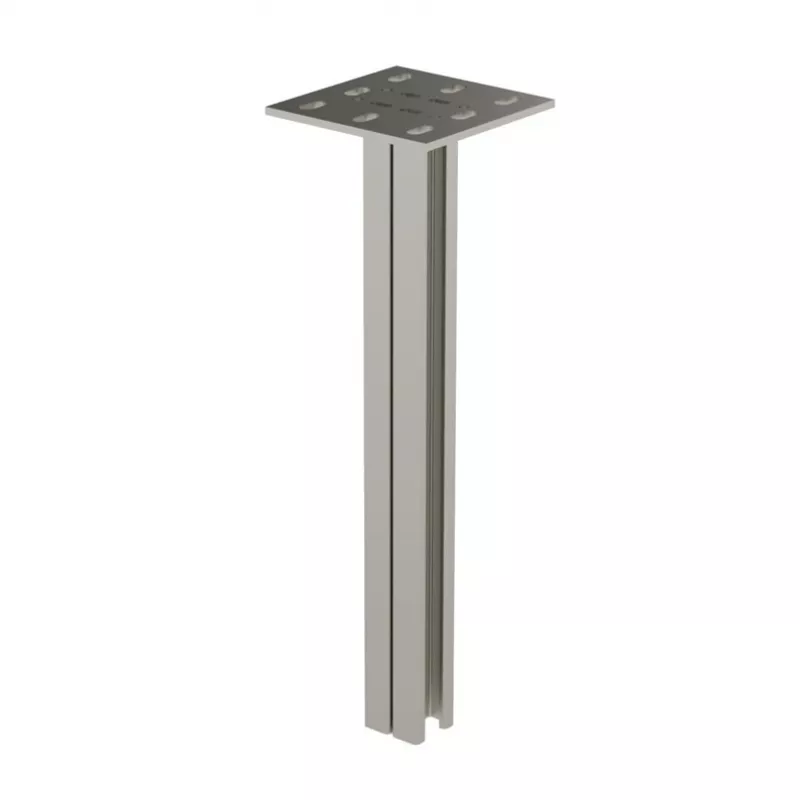

TP2-1500 HDG kattokiinnike - kuumasinkitty teräsasennuskisko 1500 mm

The TP2-1500 HDG Ceiling Bracket is a robust, hot-dip galvanized steel mounting rail designed for secure ceiling-mounted installations. Part of the Fischer Installation System TP2, this 1500 mm rail provides reliable support for pipes, ventilation ducts, cable trays, and electrical installations in both indoor and outdoor environments, including corrosive conditions.

Advantages

High corrosion resistance with a minimum 55 µm zinc coating ensures long-lasting durability. The 40 x 40 mm profile with 2.5 mm thickness offers excellent load-bearing capacity. Slot dimensions of 11 x 20 mm with 50 mm spacing allow flexible attachment of accessories. CE marked for quality assurance.

Suitable for

• Supporting pipes and ventilation ducts
• Mounting cable trays and electrical installations
• Industrial and commercial ceiling applications
• Outdoor and corrosive environments

Key specifications

• Product Type: Ceiling Mounting Rail
• Material: Steel S235JR
• Surface Finish: Hot-Dip Galvanized (HDG)
• Profile Dimensions (W x H): 40 x 40 mm
• Profile Thickness: 2.5 mm
• Length: 1500 mm
• Slot Dimensions: 11 x 20 mm
• Slot Spacing: 50 mm
• Compatibility: Fischer FUS/FLS Mounting Channels and Accessories
• Standard Compliance: CE Marked
• System: Fischer Installation System TP2

Recommendations

Use with appropriate anchors for ceiling mounting. Refer to technical data for load capacity based on installation span. Ideal for demanding environments where corrosion resistance is critical.
