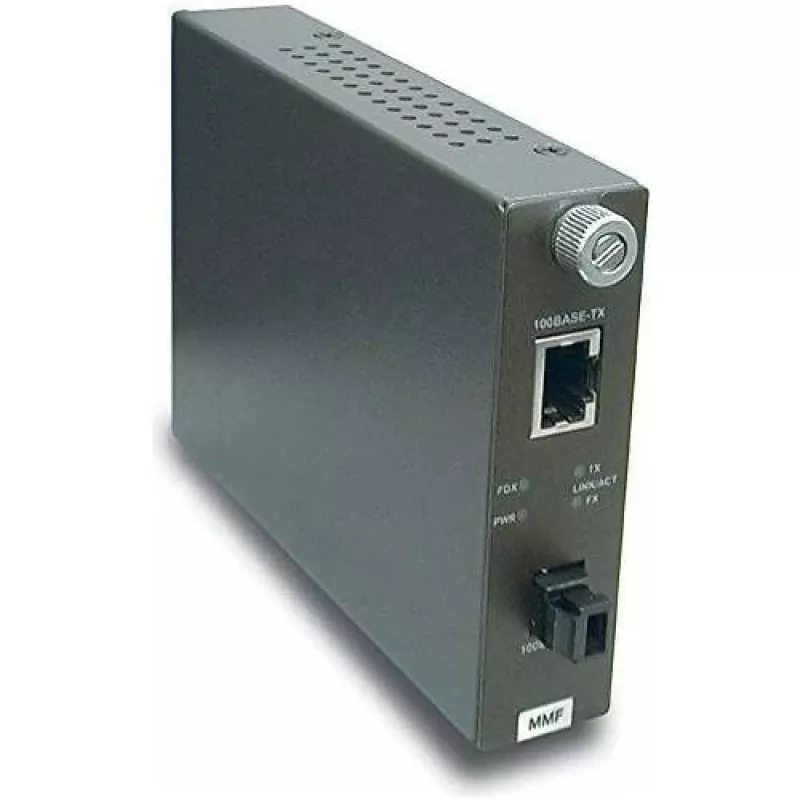

TRENDnet TFC-110MM 100 Mbps monimuotokuitu-mediakonvertteri (SC, 2 km)

Extend a 100 Mbps Ethernet network over multi-mode fibre up to 2 km when copper cabling cannot reach the required distance. The TRENDnet TFC-110MM converts a 100Base-TX copper connection to 100Base-FX fibre, using an SC connector and 1310 nm wavelength.

Who is it for

Network installers and IT administrators who need to connect remote segments in buildings or campuses where copper runs exceed the 100-metre Ethernet limit, or where electrical isolation is required.

Main features

• Converts 100Base-TX (RJ-45) to 100Base-FX (SC multi-mode fibre)
• Supports full-duplex and half-duplex operation
• Auto-negotiation and Auto MDI/MDI-X on the copper port
• Link Fault Pass Through (LFPT) for remote fault indication
• LED indicators for power, link/activity, FDX/col, TX link/act, FX link/act
• External 7.5V DC, 1.0A power adapter (max. 3.5 W consumption)

Specifications

• Ethernet port: 1 x 100Base-TX (RJ-45)
• Fibre port: 1 x 100Base-FX (SC multi-mode)
• Data transfer rate: 100 Mbps
• Fibre type: multi-mode
• Max fibre distance: 2 km
• Wavelength: 1310 nm
• Networking standards: IEEE 802.3u 100Base-TX, IEEE 802.3u 100Base-FX
• Operating temperature: 0 – 40 °C
• Operating humidity: max. 90% non-condensing
• Power consumption: max. 3.5 W

Tips

Use with 62.5/125 µm or 50/125 µm multi-mode fibre. For longer distances, consider a single-mode converter.
