TRIPP N370-03M 3 m duplex yksimuotokuitu 9/125 LC/LC kuitu-patchkaapeli

Network downtime and signal degradation in long-distance fiber links often stem from inferior patch cables with poor connectors and high insertion loss. The TRIPP N370-03M eliminates these issues by delivering a precision-engineered duplex singlemode fiber optic patch cable that ensures reliable, high-speed data transmission over 3 meters. Ideal for connecting switches, routers, and media converters in data centers, enterprise backbones, and telecommunication rooms, this cable is built to maintain signal integrity across 1310 nm and 1550 nm wavelengths.

Who is it for

This cable is intended for IT professionals, network engineers, and system integrators who require a dependable singlemode fiber link for gigabit and 10-gigabit Ethernet applications. It is especially suited for environments where low insertion loss and high return loss are critical, such as server rooms, campus networks, and long-haul backbone connections.

Main features

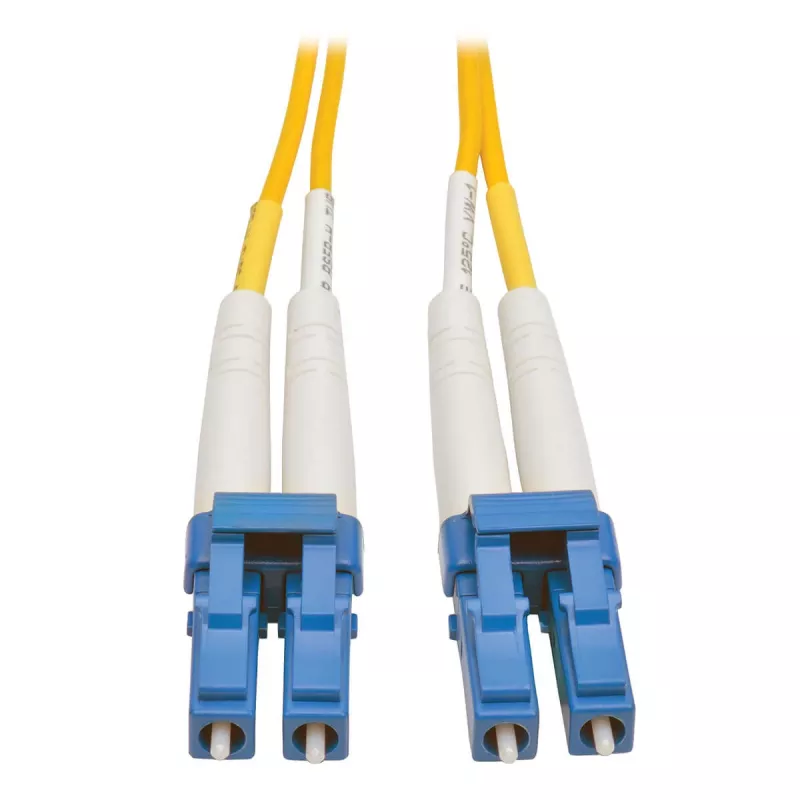

• Duplex singlemode 9/125 µm fiber with LC/UPC male connectors on both ends for precise alignment and minimal signal loss.
• 3-meter (10-foot) length with a yellow PVC jacket for easy identification and protection against physical stress.
• Low insertion loss of ≤0.3 dB and high return loss of ≥50 dB, ensuring maximum signal strength and minimal reflections.
• Supports wavelengths of 1310 nm and 1550 nm with attenuation of 0.35 dB/km and 0.25 dB/km respectively, ideal for long-reach applications.
• OFNR (riser-rated) jacket meets fire safety standards for vertical installations in building risers.
• Compliant with TIA/EIA-568-C.3, RoHS, and REACH, guaranteeing interoperability and environmental safety.

Specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Singlemode
• Fiber Core/Cladding Diameter: 9/125 µm
• Cable Configuration: Duplex
• Connector A Type: LC Male
• Connector B Type: LC Male
• Connector Polish: UPC (Ultra Physical Contact)
• Cable Length: 3 meters (10 feet)
• Jacket Material: PVC (Polyvinyl Chloride)
• Jacket Color: Yellow
• Fire Rating: OFNR (Optical Fiber Nonconductive Riser)
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB
• Supported Wavelengths: 1310 nm, 1550 nm
• Attenuation @ 1310nm: 0.35 dB/km
• Attenuation @ 1550nm: 0.25 dB/km
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Standards Compliance: TIA/EIA-568-C.3, RoHS, REACH
• Minimum Bend Radius: 30 mm

Tips

To maintain optimal performance, avoid bending the cable beyond its minimum bend radius of 30 mm and keep connectors clean using a fiber optic cleaning kit before each connection. For installations in riser spaces, ensure the OFNR rating is appropriate for your local fire codes. Store the cable in a cool, dry place within the specified temperature range to prevent jacket degradation.
