Turbosound TBV123-FB ripustuskehys TBV Line Array -kaiuttimille

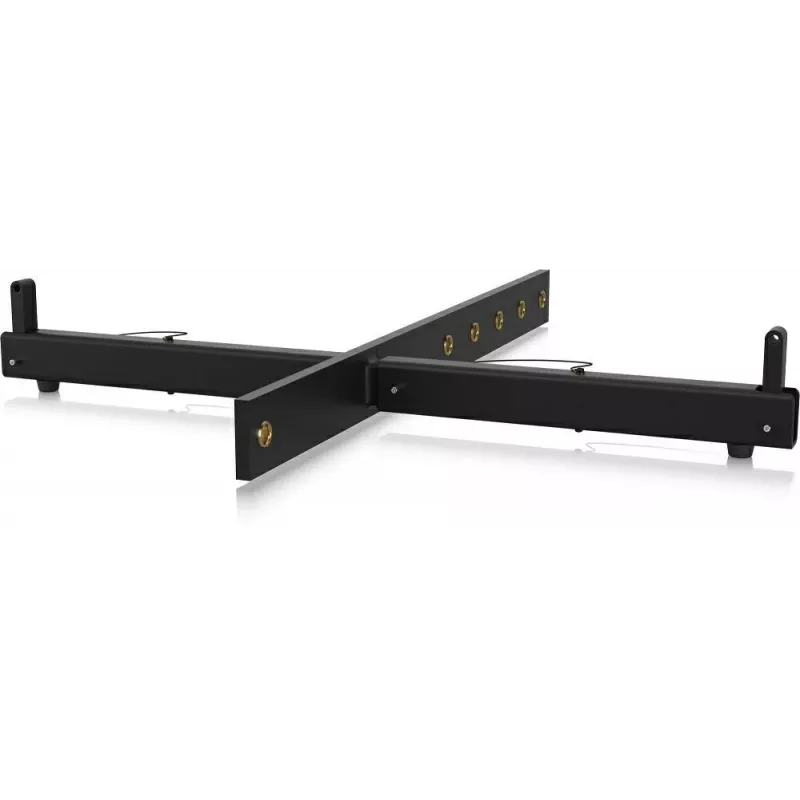

The Turbosound TBV123-FB is a high-grade steel flying frame designed for the safe and efficient suspension of TBV series line array elements. Engineered for professional touring, live sound, and fixed installations, this rigging frame supports up to 12 TBV123-AN or 8 TBV118L-AN enclosures with a maximum array weight of 500 kg (1100 lbs) at a 10:1 safety factor.

Advantages

Robust construction with black powder coat finish ensures durability and corrosion resistance. Integrated quick-release pins allow for fast and secure speaker attachment, while multiple front and rear pick points enable precise vertical array aiming and splay angle adjustment. Supports single or dual motor rigging for flexible deployment.

Suitable for

• Professional touring and live sound reinforcement
• Fixed installations in venues, houses of worship, and auditoriums
• Deploying Turbosound TBV123-AN and TBV118L-AN line array systems

Key specifications

• Product Type: Line Array Flying Frame
• Compatibility: Turbosound TBV123-AN, TBV118L-AN
• Maximum Array Weight (10:1 Safety Factor): 500 kg (1100 lbs)
• Safety Factor: 10:1
• Material: High-grade Steel
• Finish: Black Powder Coat
• Rigging Points: Multiple front and rear pick points
• Attachment Mechanism: Integrated quick-release pins
• Maximum TBV123-AN Array Capacity: Up to 12 units
• Maximum TBV118L-AN Array Capacity: Up to 8 units
• Rigging Options: Single or dual motor rigging
• Angle Adjustment: Precise vertical array aiming and splay angle adjustment
• Application: Professional touring, live sound, fixed installations
• Corrosion Resistance: Yes (due to powder coat finish)
• Mounting Orientation: Vertical array suspension
• Included Hardware: Quick-release pins for speaker attachment
• Compliance: Designed to meet industry safety standards for rigging

Recommendations

Always follow manufacturer guidelines and local safety regulations when rigging. Ensure proper calculation of total array weight and use appropriate motor and hardware. Regular inspection of the frame and components is recommended.
